Model: GS210W

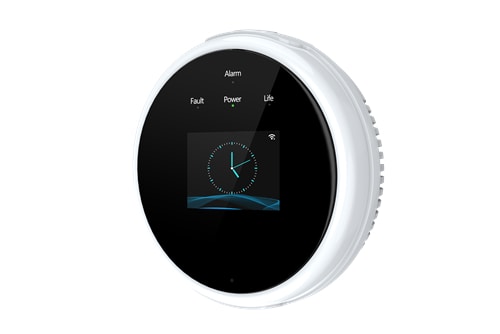

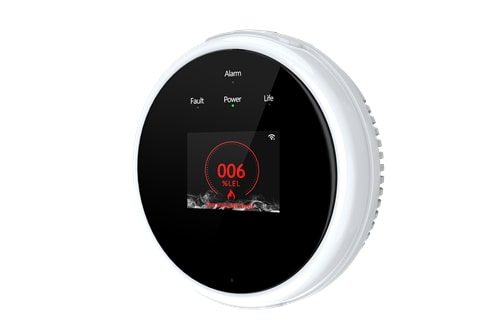

WiFi Gas Leak Detector for Home Security

General Configuration:
1.77 Inch TFT Screen with touch keys
Detecting Gas: Natural Gas and LPG
Detection Range: 0-100% LEL
Wireless Connection with Cellphone
Alarm Types: Indicator, Sound Alarm, and App notification
WAlarm Volumn: ≥70DB
Sensor Life: 5 years

Ask for price

Description:

This product is designed to detect explosive gases(natural gas and LPG) in the air for houses, offices and similar places etc. In case of gas leakage, it alarms sound with voice prompt, push text notification to your mobile and drives the valve/manipulator to turn off the gas leak source.

It is also a fire alarm device with the built-in heat sensor designed to respond when the convected thermal energy of a fire increases the temperature.

You can get the gas level and temperature via a mobile application from any point of the world, and an Internet connection via a Wi-Fi 802.11 b/g/n(2.4GHz) network is required for operation.TFT color LCD screen displays with date and time, gas level, temperature and life days remained.

Power SupplyMicro USB 5V/1A
Consumption<200mA
Detecting Gas TypeNatural Gas(CH4), LPG
Working EnvironmentTemperature: -10~55℃
SampleDiffusion
Range0-100% LEL
Alarm Setting Value6% LEL
Tolerance± 3% LEL
Responding Time≤30 Seconds
Heat Alarm Value57℃
Alarm Volume≥79dB
Valve/Manipulator Drive Output12V/300mA output for 15 seconds
Warm-up Time180 Seconds
Sensor Life5 years
WiFi2.4Ghz IEEE802.11b/g/n
Demension86*86*24.5mm

WiFi Gas Leakage Detector GS210W Marketing Pic-s (1)
Contact us to get distribution price for your market

Click to download realated documents:

GS210W WiFi Gas Detector User Manual
