Model: G130Plus

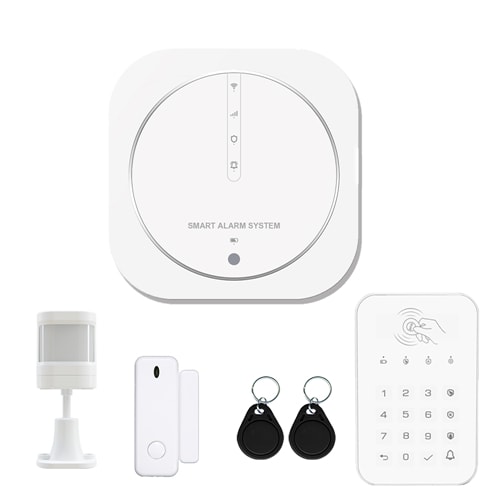

Tuya WiFi and 4G Alarm System Kit for Home/Office Security
System Features
√ Wireless Connection between hub and sensors
√ Up to 100 wireless sensor could be supported
√ WiFi and 4G connection with Cellphone
√ Supports Tuya Smart, Smart Life App
√ Compatible with Google Home, Amazon Echo
√ Supports 11 languages
Scan to chat with iSecus on Whatsapp
Description:

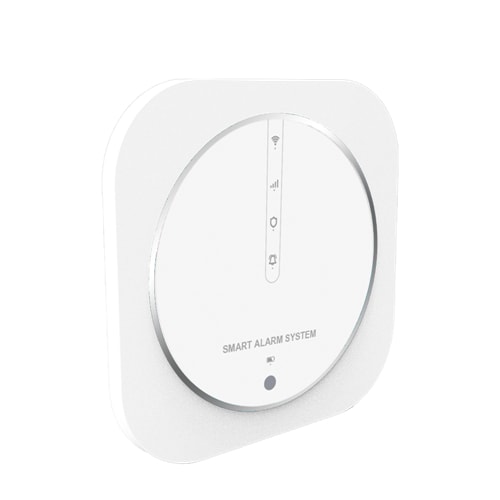

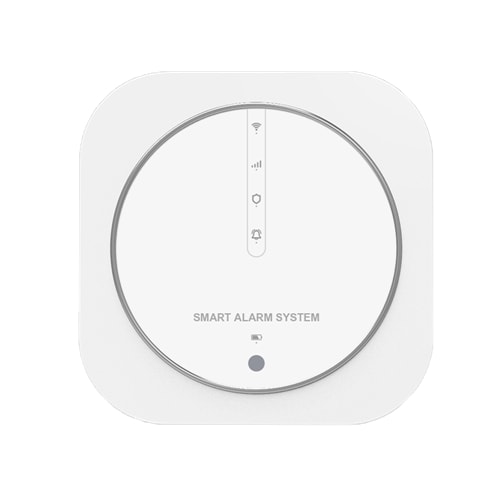

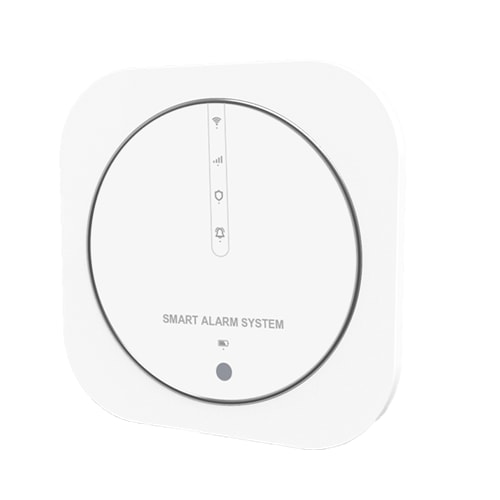

The hub from G130Plus alarm system kit is a dual network system that utilizes both Wi-Fi 802.11 b/g/n(2.4GHz) and 4G network.
All sensors are wirelessly connected to the hub. In the event of alarm activation, for example, when a sensor is triggered, a push notification will be sent and an alarm call will be made automatically to all registered users.
The system can be controlled on-site by the remote controller, or remotely from anywhere with our free dedicated mobile app Smart Life or Tuya Smart.
The hub can connect with up to 100 wireless sensors, 10 remote tags, multiple wireless sirens and an external siren. If the building has lost electrical power, the backup battery built-in the hub provides power operation up to 3 hours.
G130Plus WiFi & 4G alarm system is an ideal solution for home and office security.
Specification:
| Hub | |
| Power Supply | Micro USB 5V 1A |
| Backup Battery | 3.7V, 300mAh Lithium Battery |
| Consumption | <150mA@normal |
| Siren Output | <500mA |
| Radio Frequency | 433Mhz |
| 4G Network | 850/900/1800/1900MHz |
| Wi-Fi | IEEE802.11b/g/n |
| Connectivity | Up to 100 wireless sensors |
| Operation Temperature: | -10~55℃ |
| Remote(Optional) | |
| Power Supply | DC 3V (CR2025 Lithium Battery x1) |
| Standby Current | <5uA |
| Transmitting Distance | <80m (Without obstacles and no Interference) |
| Radio Frequency | 433Mhz |
| Operation Temperature | -10~55℃ |
| Door/Window Sensor | |
| Power Supply | DC 3V (CR2032 Lithium Battery x1) |
| Standby Current | <8uA |
| Transmitting Distance | <100m (Without obstacles and no Interference) |
| Radio Frequency | 433Mhz |
| Operation Temperature | -10~55℃ |

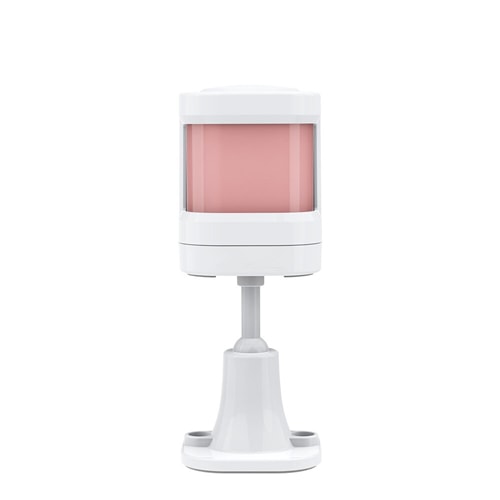

| PIR Motion Detector | |
| Power Supply | DC 3V (CR2450 Lithium Battery x1) |
| Standby Current | <15uA |
| Alarm Current | <25mA |
| Detection Scope | <12m/110° |
| Transmitting Distance | <100m (Without obstacles and no Interference) |
| Radio Frequency | 433Mhz |
| Operation Temperature | -10~55℃ |

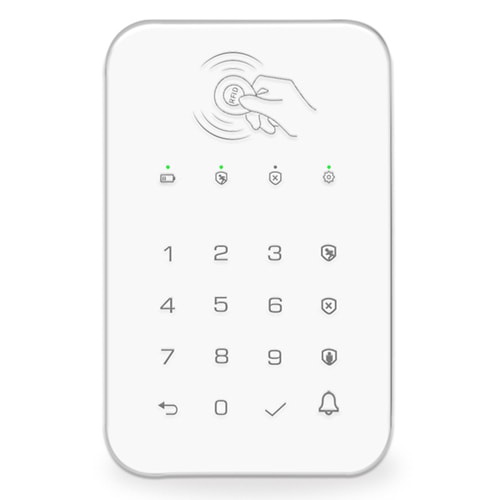

| Wireless Keyboard | |
| Power Supply | Micro USB 5V 1A |
| Indicators | Power, Arming & Disarming, Settings |
| Keyboard | 12 touch keys |
| Transmitting Distance | <100m (Without obstacles and no Interference) |
| Radio Frequency | 433Mhz |
| Tag Frequency Supported | 125KHZ ID Card/Tag |
| Operation Temperature | -10~55℃ |
