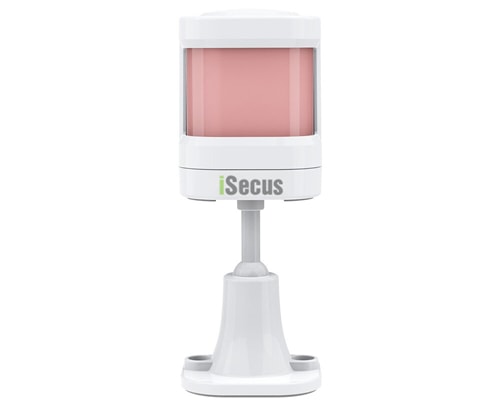

  • P200 Wireless PIR Motion Detector Pet Immunity-P1

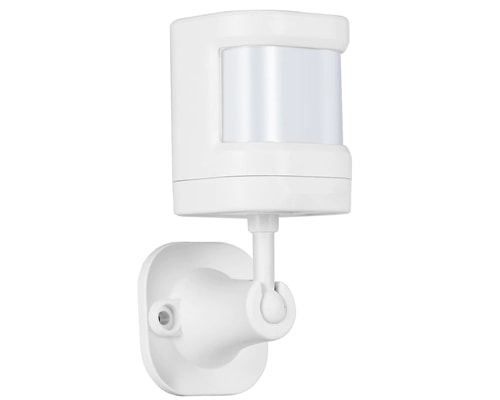

  • P200 Wireless PIR Motion Detector Pet Immunity-P2

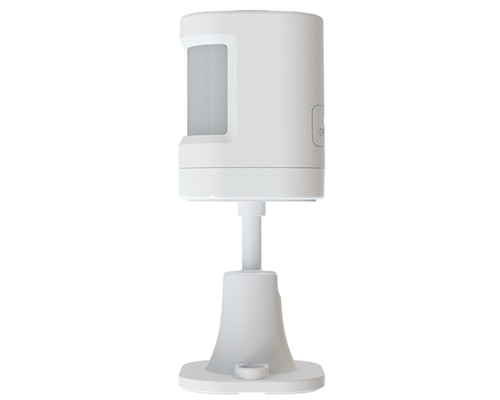

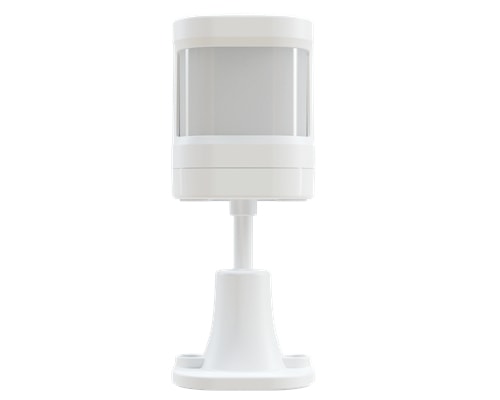

  • P200 Wireless PIR Motion Detector Pet Immunity-P3

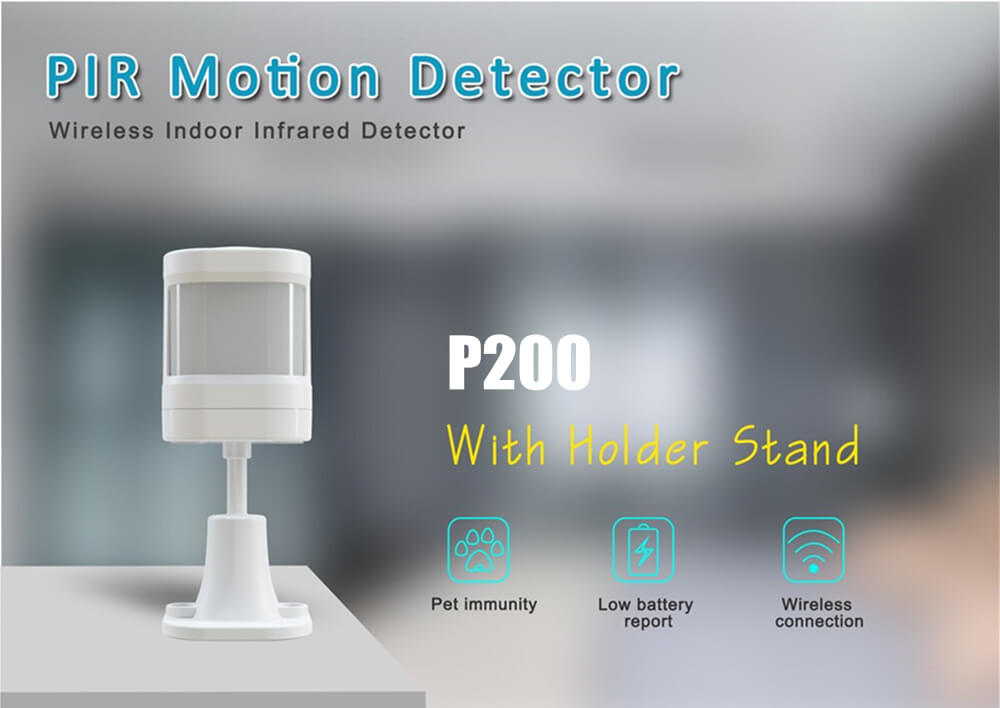

Model: P200

Wireless PIR Human Motion Detector for Alarm System

General Features

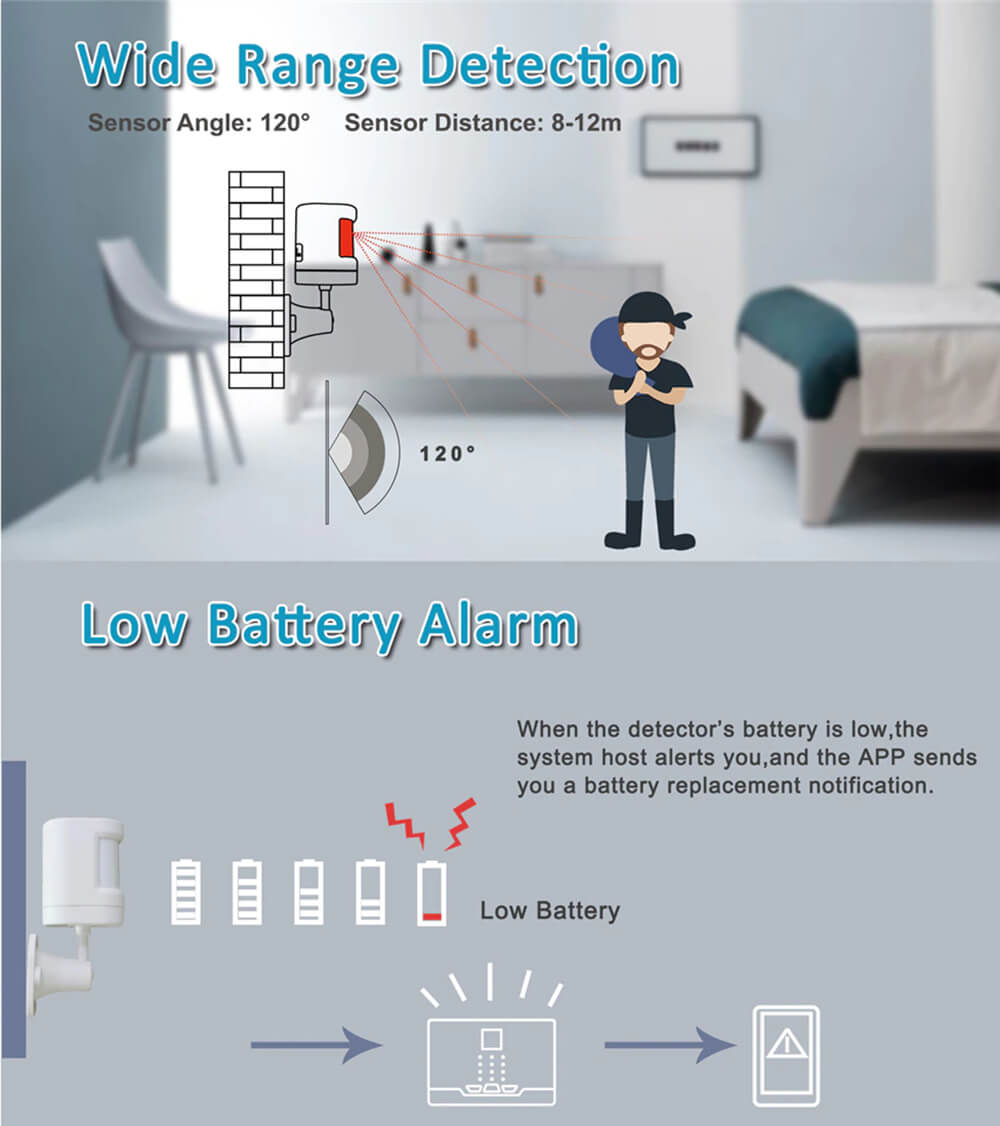

Wide Detection Angle (120 degree)
Low Battery Reports

Wireless Connection

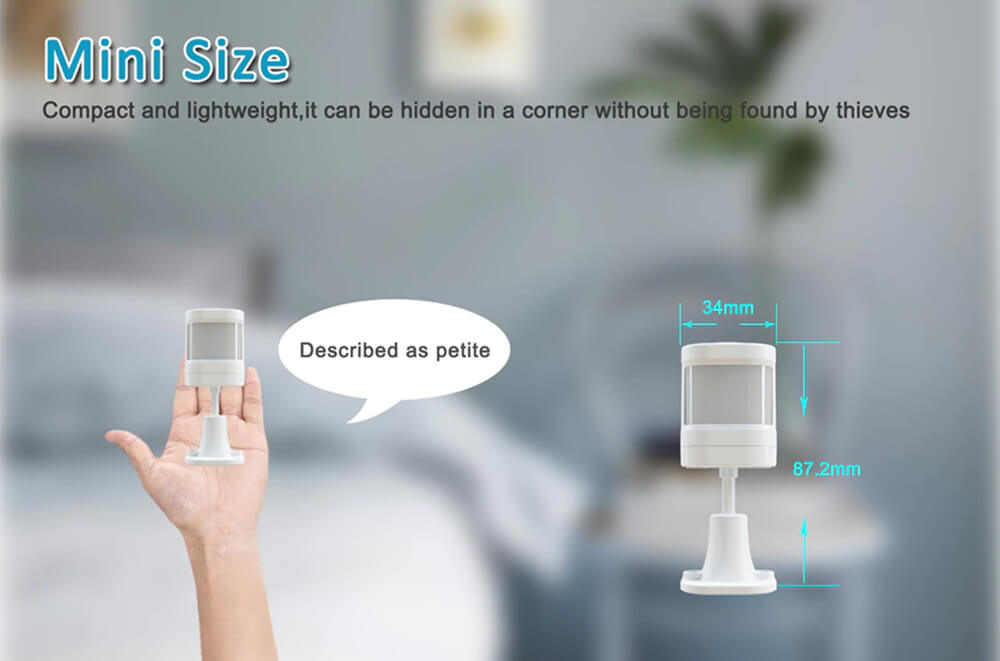

Mini Size for hidden installation
Pet Immunity
Tamper Alarm

Ask for price

Description:

P200 is a wireless mini PIR (Passive Infrared) motion detector for alarm system. It can control the area with the radius up to 12 meters with good performance on pet immunity.

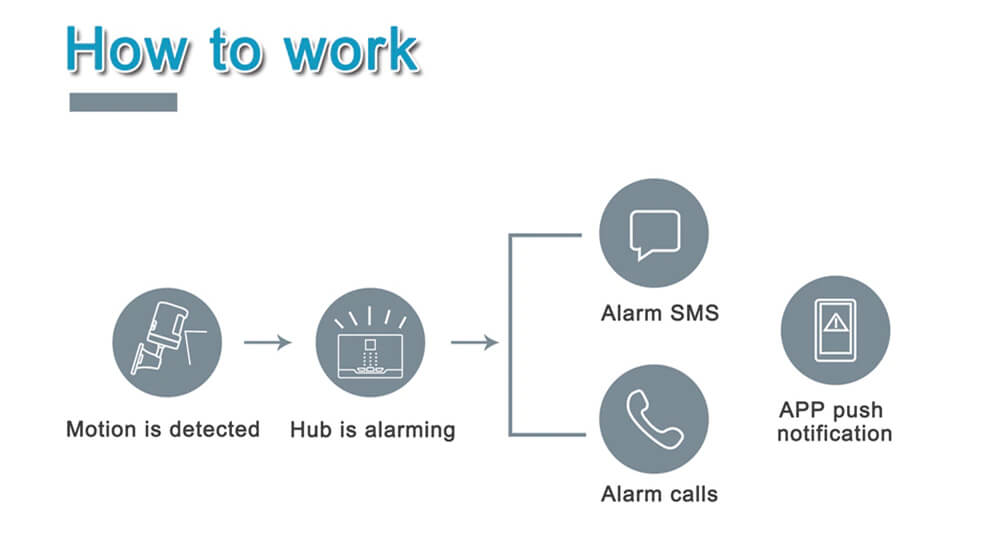

It is easily to connect the detector wirelessly with any alarm system hub that supports V1527 protocol. The communication range between detector and hub could reach 100 meters without obstacles. Its power sumption is super low. With the embedded cell battery, P200 can standby for 2 years.

Specifications:

Power SupplyDC 3V (CR2450 Lithium Battery x1)
Standby Current< 15uA
Alarm Current< 25mA
Pet Immuninity< 15kg
Detection Scope<12m/110 °
Transmitting Distance<80m (in open area and no interference)
Radio Frequency433 Mhz
Operation Temperature-10-55 ℃
LED IndicatorYes
Mounting Height2-2.2m above the ground
Alarm Outputalarm alert, tamper alert, low battery alert

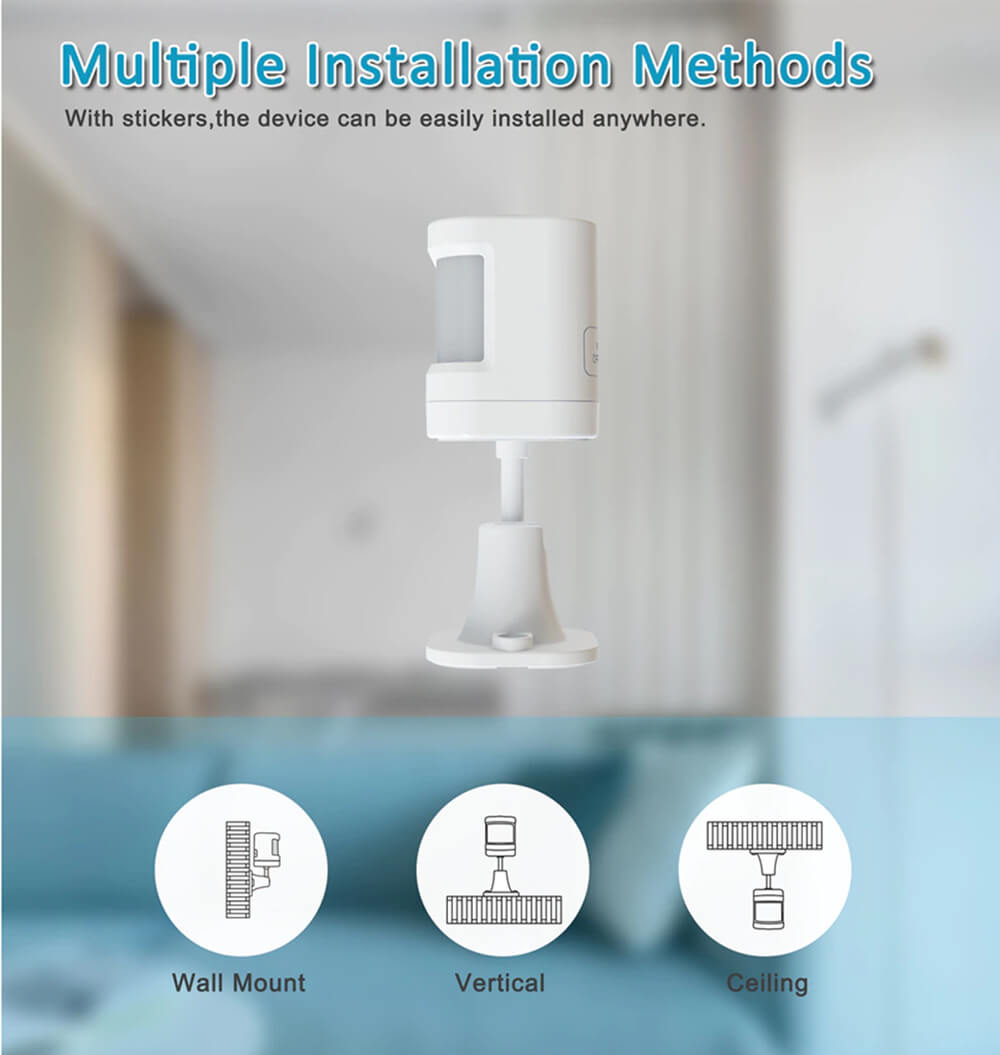

Mounting TypesWall & Ceilling Mounting, Table Placing
Measurement34mm * 87.2mm

Contact us to get distribution price for your market

Detailed Features on P200 PIR Motion Detector:

Wireless PIR Motion Detector Pete Immunity-P200-P1
Wireless PIR Motion Detector Pete Immunity-P200-P2
Wireless PIR Motion Detector Pete Immunity-P200-P3

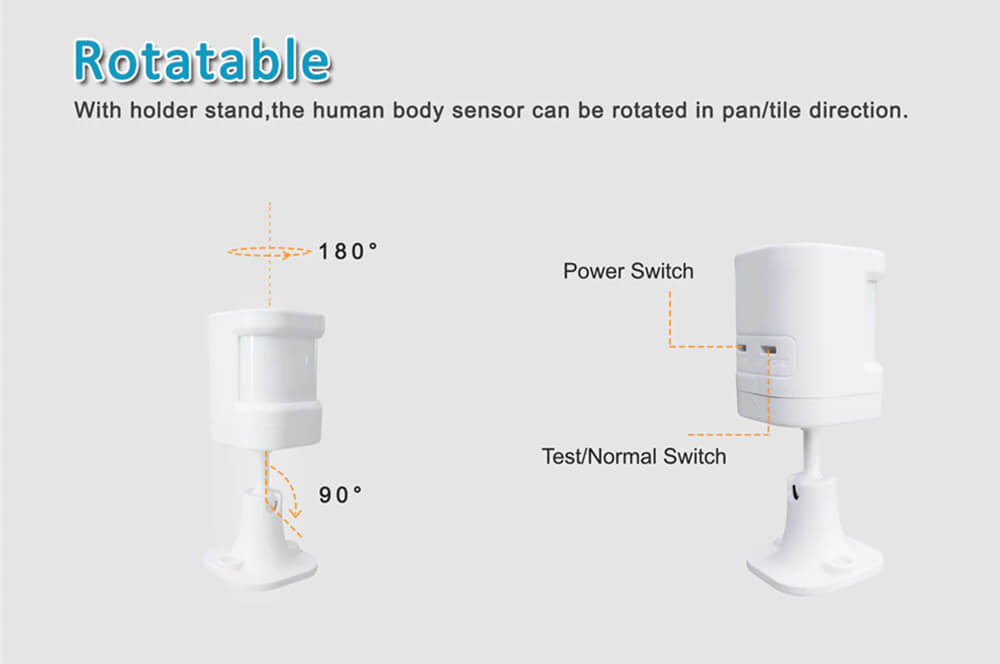

Wireless PIR Motion Detector Pete Immunity-P200-P4
Wireless PIR Motion Detector Pete Immunity-P200-P5
Wireless PIR Motion Detector Pete Immunity-P200-P6

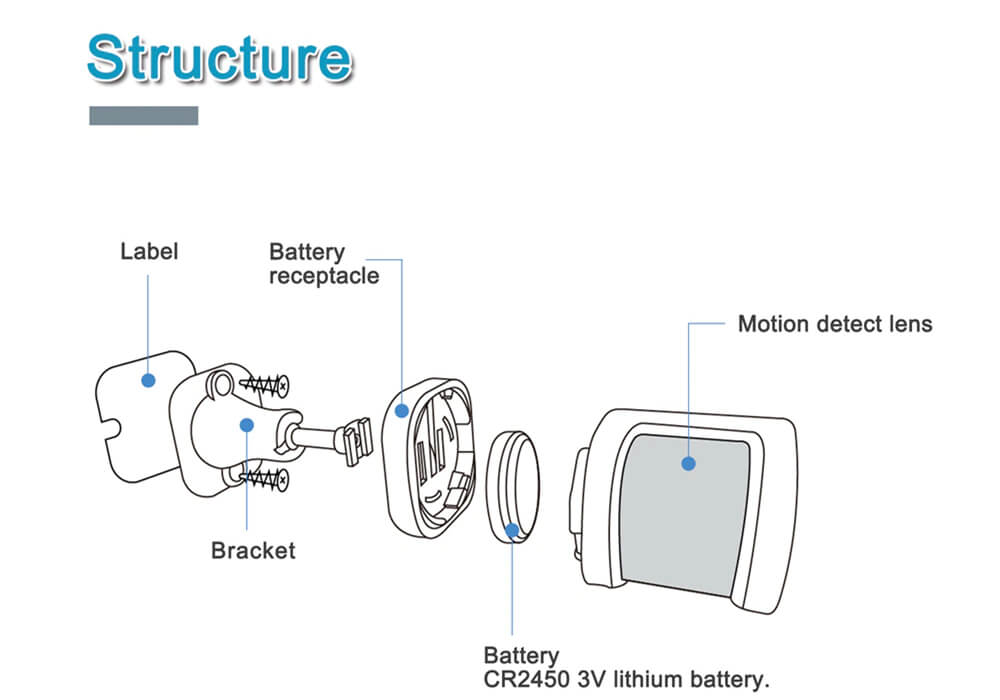

Wireless PIR Motion Detector Pete Immunity-P200-P8
