Project Description

  • Touch Sreen WiFi Alarm System Kit G600-P1
  • Touch Sreen WiFi Alarm System Kit G600-P2
  • Touch Sreen WiFi Alarm System Kit G600-P3

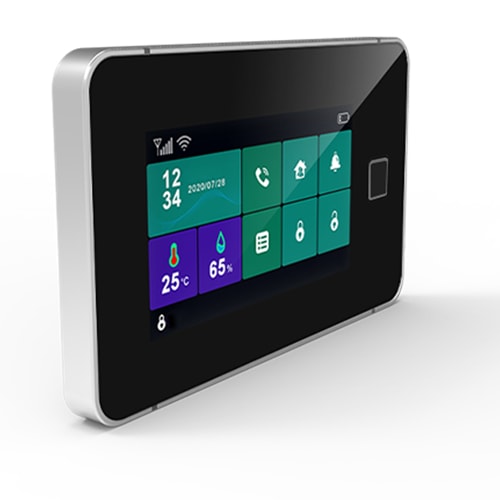

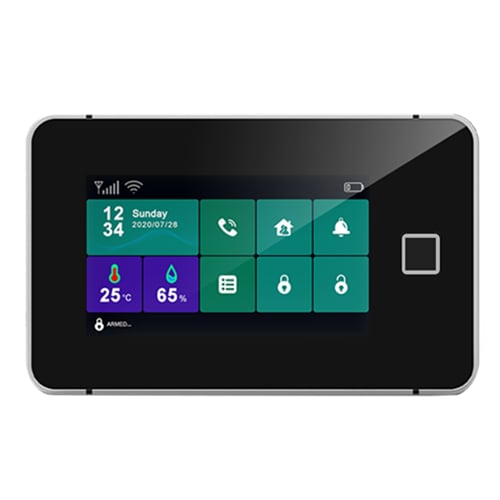

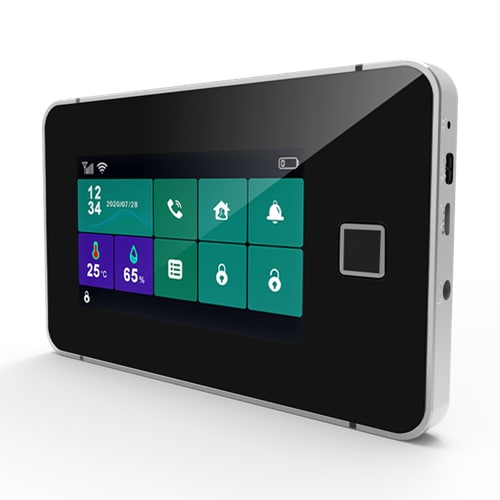

Model: G600

Touch Screen WiFi and GSM Alarm System Kit

System Features
4.3 inch big touch colorful screen
Supports Fingerprint, Password and RFID to arm/disarm the system
Wireless Connection between hub and sensors
Up to 100 wireless sensor could be connected
4 wired sensor and 10 remote controller tag could be connected
WiFi and GSM connection with Cellphone
Supports Tuya Smart, Smart Life App
Compatible with Google Home, Amazon Echo
Supports 12 languages

Ask for price

Description:

 The hub from G600 Alarm System Kit is a dual network system that utilizes both Wi-Fi 802.11 b/g/n(2.4GHz) and cellular(GSM or 4G). It adopts 4.3″ TFT touch screen and semi-conductor fingerprint sensor. The home screen displays current temperature and humidity measured from on sight.

Up to 100 wireless sensors, 4 hardwired zones, 10 remote tags, multiple wireless sirens and an external siren can be connected to the hub.In the event of alarm activation, for example, when a sensor is triggered, the hub internal siren sounds at 80dB on-site,an optional external or wireless siren sounds at 100dB, and a push notification will be sent and an alarm call will be made automatically to all registered users.

The system can be armed/disarmed on-site by your fingerprint, touch panel, the remote tag supplied, or remotely from anywhere with our free dedicated mobile application.

If the building has lost electrical power, the backup battery built-in the hub provides power operation up to 3 hours.

Datasheet

Hub
Power SupplyMicro USB 110/220VAC to 5V, 2000mA
Backup Battery3.7V, 500mAh Rechargeable Lithium Battery
Consumption<[email protected]
Siren Output<500mA
Radio Frequency433Mhz
GSM850/900/1800/1900MHz
Wi-FiIEEE802.11b/g/n
Operation Temperature -10~55℃
Remote Controller
Power SupplyDC 3V (CR2025 Lithium Battery x1)
Standby Current<5uA
Transmitting Distance<80m (Without obstacles and no Interference)
Radio Frequency433Mhz
Operation Temperature -10~55℃
Door/Window Sensor
Power SupplyDC 3V (CR2032 Lithium Battery x1)
Standby Current <8uA
Transmitting Distance<100m (Without obstacles and no Interference)
Radio Frequency433Mhz
Operation Temperature -10~55℃
PIR Motion Detector
Power SupplyDC 3V (CR2450 Lithium Battery x1)
Standby Current <15uA
Alarm Current<25mA
Detection Scope<12m/110°
Transmitting Distance<100m (Without obstacles and no Interference)
Radio Frequency433Mhz
Operation Temperature -10~55℃
Wireless Siren
Power SupplyMicro USB 110/220VAC to 5V, 1000mA
Backup Battery3.7V, 300mAh Rechargeable Lithium Battery
Standby Current<15mA
Alarm Current<230mA
Volume 100dB
Radio Frequency433Mhz
Operation Temperature -10~55℃

Touch Sreen WiFi Alarm System Kit-P1
Touch Sreen WiFi Alarm System Kit-P2
Tuya Smart WiFi Alarm System Kit G95-Marketing P2
Touch Sreen WiFi Alarm System Kit-P3
Touch Sreen WiFi Alarm System Kit-P4
Touch Sreen WiFi Alarm System Kit-P5
Touch Sreen WiFi Alarm System Kit-P6
Touch Sreen WiFi Alarm System Kit-P7
Touch Sreen WiFi Alarm System Kit-P8
Touch Sreen WiFi Alarm System Kit-P9
Touch Sreen WiFi Alarm System Kit-P10
Touch Sreen WiFi Alarm System Kit-P11
Touch Sreen WiFi Alarm System Kit-P12
