Project Description

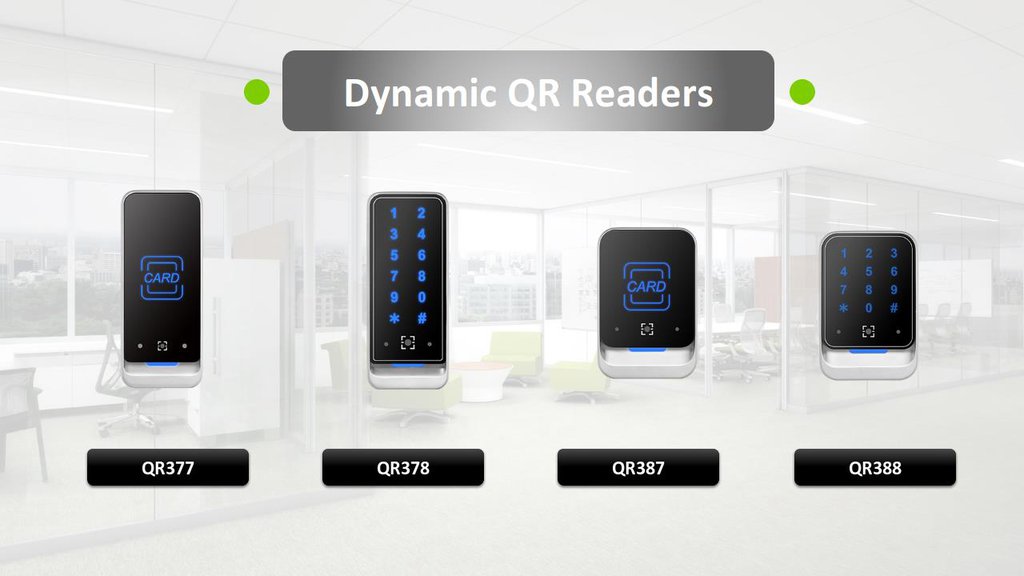

Model: QR378, QR388

Dynamic QR Code & MF Reader

Main Features

  • Read Dynamic QR Code

  • Touchless Keyboard

  • Read 13.56Mhz Card

  • IP67 Waterproof Case, suitable for outdoor using

  • Compatible with ZKTeco C3 controller and Inbio Controller

Ask for Price
Buy Online

Description:

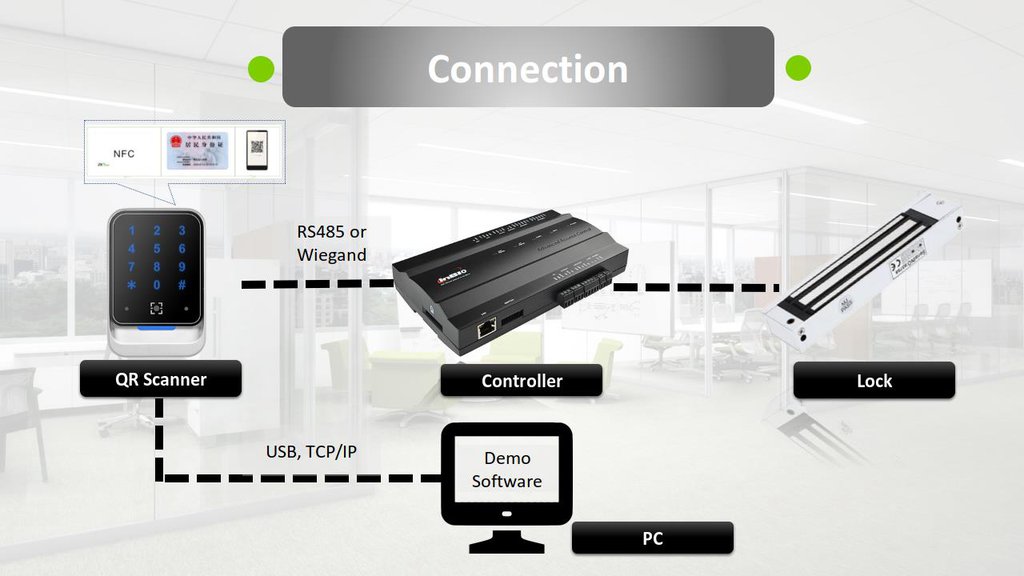

QR378 &QR388  are dynamic QR code and MF readers for access control system, with touch keyboards. The readers adopt advanced technology, reaching fast scanning speed at high accuracy rate. They are compatible with any access control panels that supports wiegand input. By default, they can recognize 13.56Mhz proximity card, NFC card and dynamic QR code for higher security level.

These QR readers are equipped with metal frame and toughened glass faceplate. The case meets IP65 waterproof standard with anti-exposion feature, so you can install the reader in outdoor environment. These readers could be applied to wide applications such as Apartments Management, Visitors Management, Hotel Management, Self-service Supermarkets, Elevator System, etc.

Specifications:

International StandardISO/IEC 14443A RS485 Protocol
QR Code StandardQR,  Data Matrix,  PDF417,  GS1 Databar,  Code 128/EAN128,  UPC/EAN, Codabar,  Code 39/Code 93
QR Code TypesElectronic QR Code, Paper QR Code, Dynamic QR Code
RFID CardUltralight,  MF1(S50,S70),  DESFire EV1,  NTag,  NFC,  CPU,  or ISO/IEC 14443A
Operation Frequency13.56 Mhz
Working Voltage12V (No more than 200mA), 5V USB (No more than 500mA)
Resolution 648×488
Reading DistanceRFID>5cm, QR 5.0-18.0cm (Depends on QR Code size , Light Intensity)
Speed100ms (On average)
CommunicationsWiegand (Default WG34),  RS485
MaterialMetal Frame, Toughened Glass
KeyboardsTouch Keyboards (QR378 & QR388)
Working Temp -10℃~+50℃
Working Humidity 20% ~ 80%
Waterproof StandardIP67
Dimension QR377 &QR378: 138*58*22.67mm
QR387 &QR388: 120*80*22.67mm
