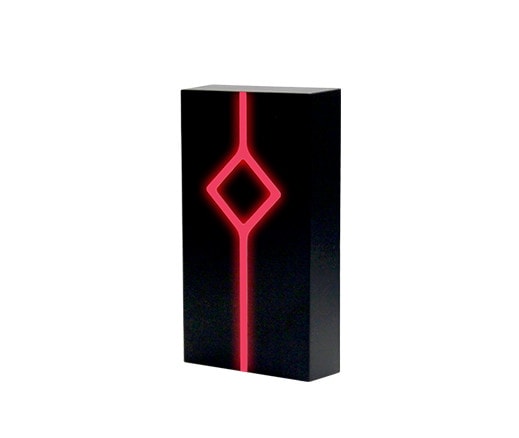

Model: KR210 Series

Waterproof Wiegand Reader for Access Control System

General Configuration:

13.56MHz or 125Khz Frequency Card/Keyfob/Wristband Reading
IP67 Waterproof Case for outdoor use
Card Reading Distance 3.5-5cm (Non touch)
Wiegand 26, Wiegand 34 output
Transmission Distance 100M
Embeded Beeper
Red and Green LED Indicator

Description:

KR210 series wiegand readers can read 125Khz and 13.56MHz cards at fast speed. KR210M is developped based on ISO/IEC14443A/B/ and ISO15693 international protocols. It is compatible with RFID chips like S50, S70, Desfire, Ntag213/216, Ultralight. The case meets IP67 waterproof protection level, suitable to be installed both indoor and outdoor.

Specifications:

CaseABS material with Glossy Surface
FrequencyKR210E: 125KHZ
KR210M: 13.56MHZ
Supported CardsKR210E: ID Cards & Keyfobs
KR210M: S50, S70, Desfire, Ntag213/216, Ultralight, etc
Reading Distance3-5CM
Responding Speed<200ms
Wiegand OutputWiegand 26/Wiegand 34
Transmission Distance100M
Operating Temperature-20 ℃ to 65℃
Operating Humidity20% to 80%
Power SupplyDC 12V
Working Current≤ 200mA
Protection GradeIP67 (Solid epoxy potted)
Dimension80mm * 44mm * 16mm
Net Weight90g
LED IndicatorRed (Standby Mode), Green (Reading mode)
Cable OutputsRed(VCC), Black(GND), Green(D0), White(D1), Purple(Beep), Grey(CLED), Yellow(+GND-->WG26)
ApplicationAccess Control, Time Attendance, POS, Patrol System, Anti-theft System, etc
