Model: QR500

QR Code Scanner + NFC Scanner + RFID Reader

Main Configuration

Reads Dynamic QR Code, Eletronic QR code, Printed QR Code, Barcode
Reads Cellphone NFC
Reads 13.56Mhz Mifare Card
QR reading distance is over 5cm
Supports Wiegand 26/34/66, RS485, USB communication ports
Compatible with ZKTeco C3 controller, Inbio Controller.Standalone Access Control like F18, F22


QR500 is a QR code and NFC reader for access control system. This reader adopts advanced technology, reaching fast scanning speed at high accuracy rate. It is compatible with any access control panels that supports wiegand input, not only ZKTeco C3 controller and Inbio controller,  but also other brands. By default, it can recognize 13.56Mhz proximity card and QR code.

QR500 reader could be applied to wide applications, like Apartments Management, Visitors Management, Hotel Management, Self-service Supermarkets, Elevator System, etc.


QR CodeQR, Data Matrix, PDF417, GS1 Databar, Code 128/EAN128,UPC/EAN, Codabar, Code 39/Code 93
Range360°, incline ±65°, deflexion ±60°
Distance5.0-30.0cm,depend on QR Code size , Light Intensity
About RFID
ProtocolUltralight, MF1(S50,S70), DESFire EV1, NTag, NFC, CPU, or ISO/IEC 14443A
Default as NFC& QR Code
CommunicationsWiegand(Default), RS485,USB, TCP/IP(Optional function)
VoltageDC 12V(±5%), USB 5V
Working Temp-10℃~+50℃
Keep Temp-20℃~+80℃
Humidity20% ~ 80%

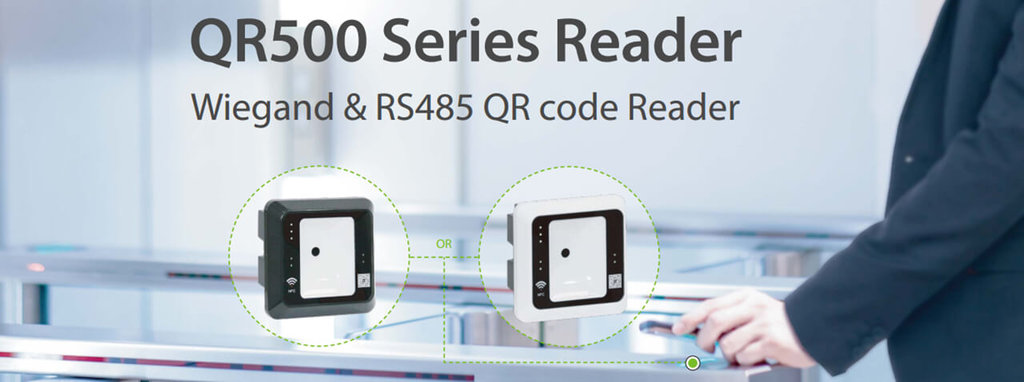

QR500 Wiegand and RS485 QR reader for access control-catalogue pic
ZKTeco R401 QR NFC Reader
ZKTeco R401 QR NFC Reader

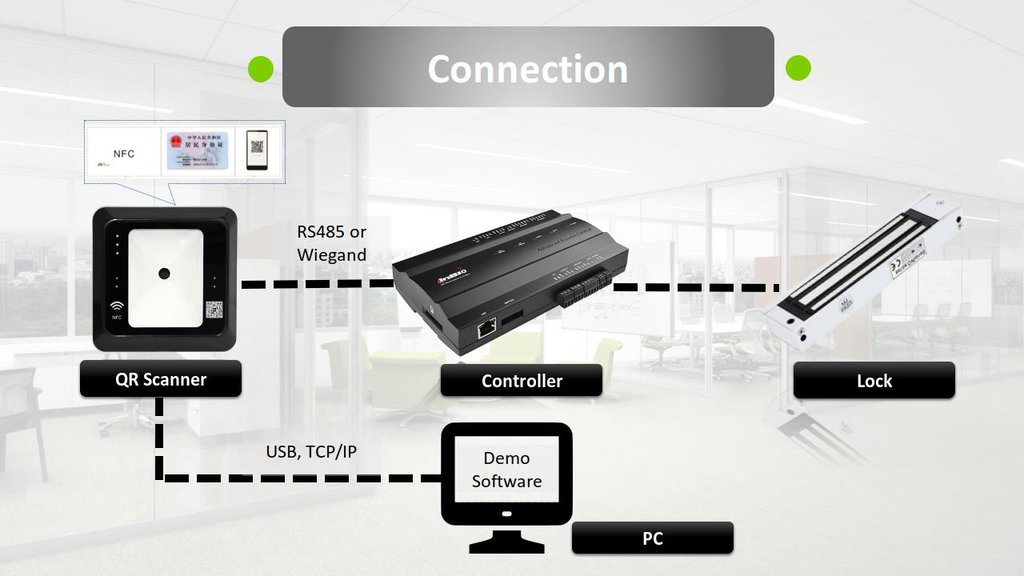

ZKTeco QR500 QR Reader connection with Inbio

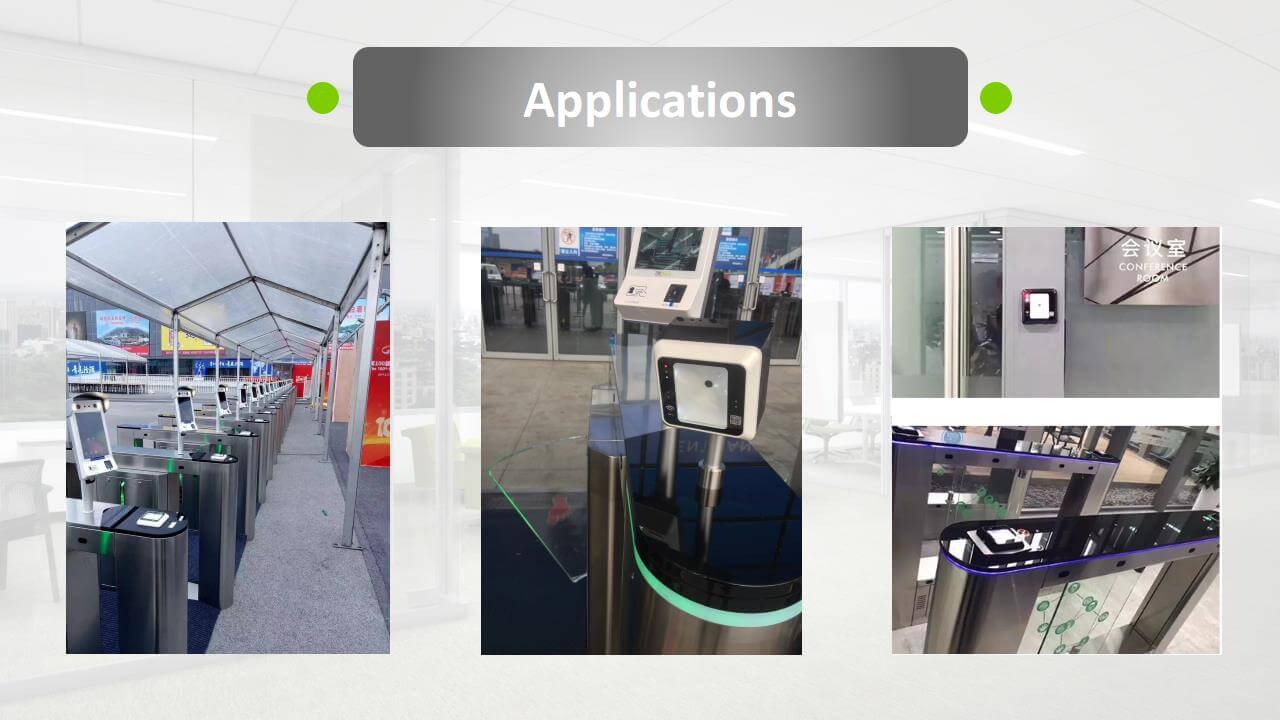

ZKTeco R401 QR Reader Applications

Demo videos about QR500 working with Inbio, C3 and F22
