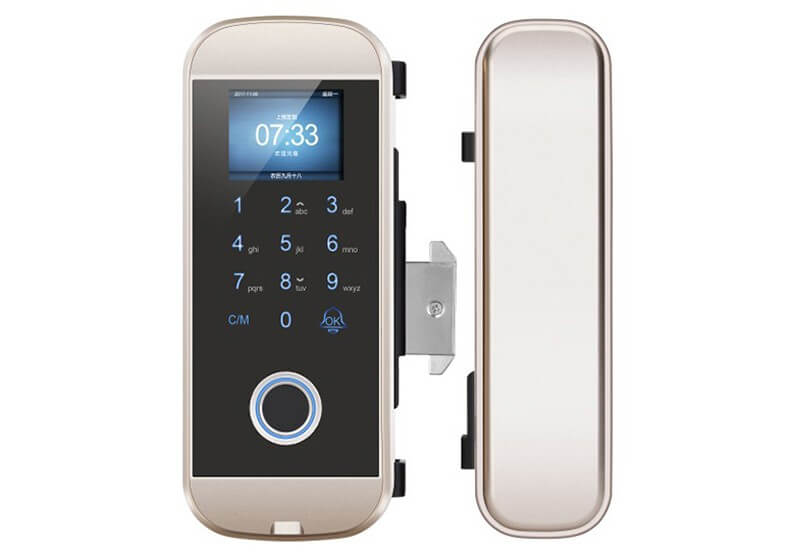

• LK-1108-J Fingerprint Lock for Glass Door

Model: LK-1108-J

Smart Fingerprint Lock for Sliding Glass Door

General Specifications:

◆Big Capacity: 2000 Fingerprint, 1000 RFID card, 1000 Password
◆Multiple Verificaction Mode: Fingerprint, RFID Card, Password or Combined
◆Remote lock/unlock: Supports around 30m distance
◆Support external emergency power input from USB
◆User-friendly interface: 1.77 inch TFT screen and T9 touch board input


LK-1108-J is a standalone Fingerprint glass door lock that suits for sliding type of glass doors. It adopts semi-conductor fingerprint sensor with fast verification speed. The lock supports big capacity, including 2000 Fingerprint, 1000 RFID and 1000 Password. Multiple unlocking methods are available, by Fingerprint, RFID and Password , together with remote controller.

The lock adopts 1.77″ TFT colorful screen with user-friendly operation interface. It comes with embedded door bell and door sensor. Normal Open and Normal Close could be set manually. If lock runs out of power, it can support external power input through USB for emergeney purpose.

Without drilling holes, you can install the lock fast. Besides, it also works as a time attendance device.


◆Multiple Verification Methos: Fingerprint, RFID, Password
1.77 inch TFT screen
Simple Time Attendance function
Embedded Door Bell and Door Sensor
Remote Controller to lock and unlock


Display1.77 Inc h T F T LCD
SensorA dvanced Semi-conductor Sensor
Materia lL ock:Zinc Alloy /Cylinder:Stainless Steel
F ingerprint Capacity2000
RFID Capacity1000
Password Capacity1000
Time Attendance Yes, with SSR export
NO/NC ModeNC(Default), NO (Manual Set)
V erification SpeedLess than 0.5s
Remote ControllerYes (Optional)
Remote Controll Distance20m (Max.)
Door BellEmbedded
Glass Door RequirementDoor thinkness:1-1.2cm; Door Gap:0.5-1cm
Lock BodyLeft or Right (Adjustable)
Operating Temperature -20℃ to 45 ℃
Operating Humidity20% to 80%
Power SupplyDC 4.0 - 6.0V ( 4*1.5V AA Battery )
Working Current≤30 UA
Dimension (Lock Body)180mm * 67mm * 65mm
Gross WeightAbout 1.00KG
Available ColorBlack, Gold Rose
RemarkA ground lock is needded for dual-open door
