  • LK-9908 Semiconductor Fingerprint Glass Door Lock
  • LK-9908 Semiconductor Fingerprint Glass Door Lock
  • LK-9908 Semiconductor Fingerprint Glass Door Lock

Model: LK-1108

Semi-conductor Fingerprint Glass Door Lock

General Specifications:

◆Big Capacity: 2000 Fingerprint, 1000 RFID card, 1000 Password
◆Multiple Verificaction Mode: Fingerprint, RFID Card, Password or Combined
◆Remote lock/unlokc: Supports around 30m distance
◆Support external emergency power input from USB
◆User-friendly interface: 1.77 inch TFT screen and T9 touch board input

Ask for price

Description:

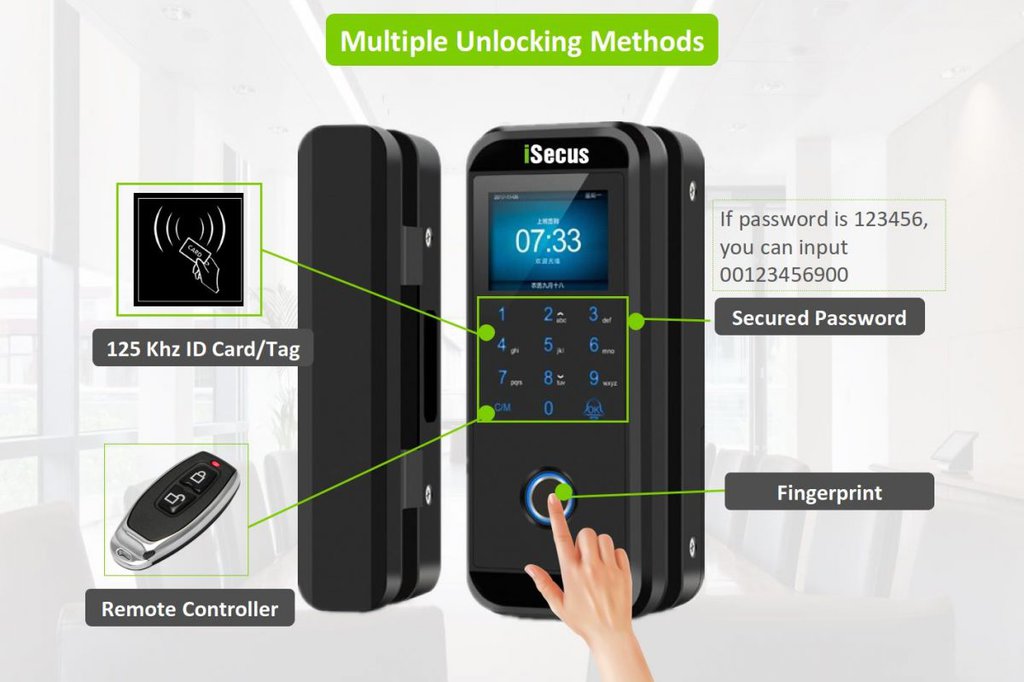

LK-9908 is a standalone Fingerprint lock adopting semi-conductor fingerprint sensor. It supports 3000 user capacity, including 2000 fingerprint capacity. You can use Fingerprint, RFID, Password  or remote controller to lock and unlock the door. This lock is powered by batteries with low power alarm function. It also supports external USB power bank input for emergency use.

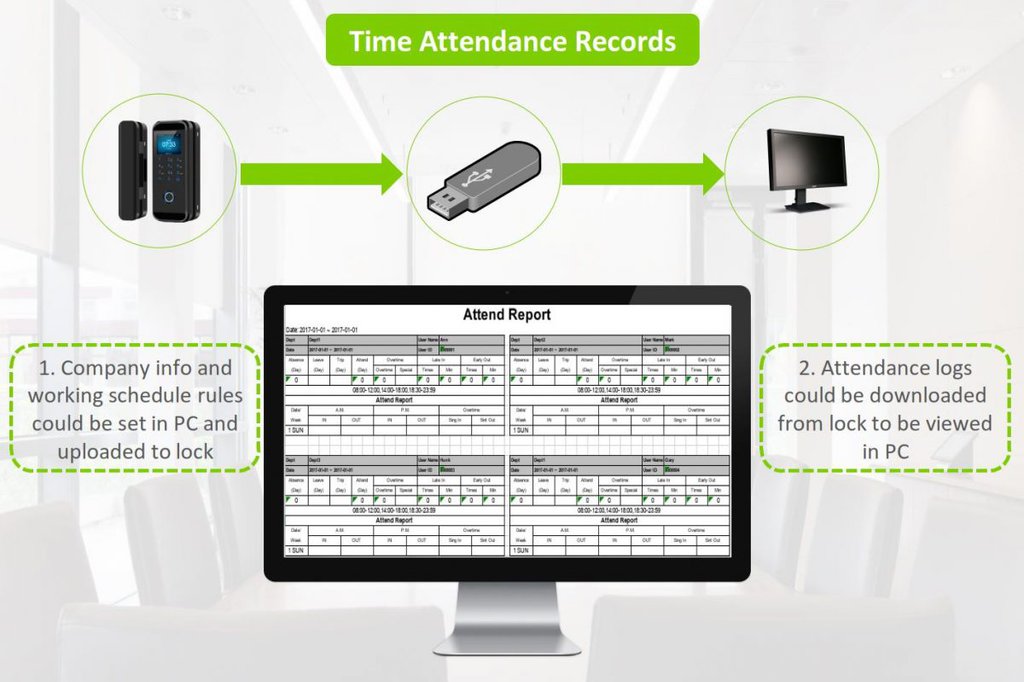

It adopts 2.4″ TFT colorful screen, T9 input touch keyboard with backlight and voice guidence, which offers a wonderful user-friendly interface. The embedded door bell is useful for visitor management. The built-in door sensor will detect door status and give alert if door is not locked properly. Besides, LK-9908 supports time attendance function. You can download the logs through USB.

LK-9908 default configuration is for glass door use. Optional configuration is available for wooden door use.

Features:

◆Multiple Verification Methos: Fingerprint, RFID, Password

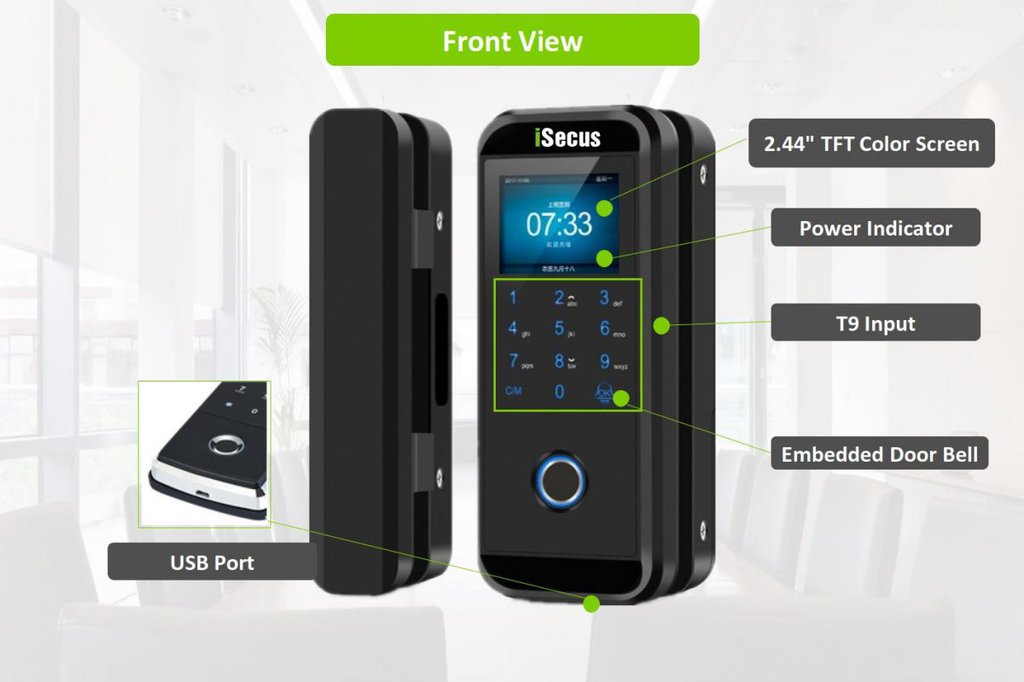

◆2.4 inch TFT screen
Simple Time Attendance function

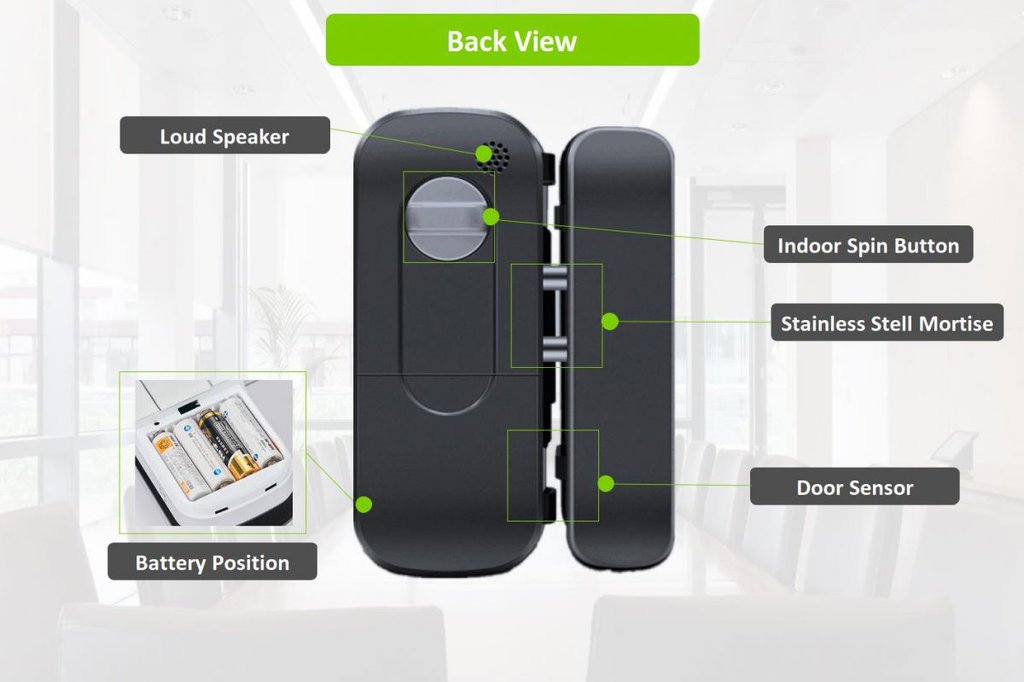

Embedded Door Bell and Door Sensor
Remote Controller to lock and unlock

Specifications:

Display2.4 Inc h TFT LCD
SensorA dvanced Semi-conductor Sensor
MaterialLock:Zinc Alloy /Cylinder:Stainless Steel
Fingerprint Capacity2000
RFID Capacity1000
Password Capacity1000
Time Attendance Yes, with SSR export
NO/NC ModeNC(Default), NO (Manual Set)
Verification SpeedLess than 0.5s
Remote ControllerYes (Optional)
Remote Controll Distance20m (Max.)
Door BellEmbedded
Glass Door RequirementDoor thinkness:1-1.2cm; Door Gap:0.5-1cm
Lock BodyLeft or Right (Adjustable)
Operating Temperature -20℃ to 45 ℃
Operating Humidity20% to 80%
Power SupplyDC 4.0 - 6.0V ( 4*1.5V AA Battery )
Working Current≤30 UA
Dimension (Lock Body)190mm * 75mm * 65mm
Gross WeightAbout 1.00KG
Available ColorBlack
RemarkA ground lock is needded for dual-open door

Have interest in this door lock? Please click to contact us NOW!
