Model: LK-1101

Fingerprint Glass Door Lock

General Specifications:

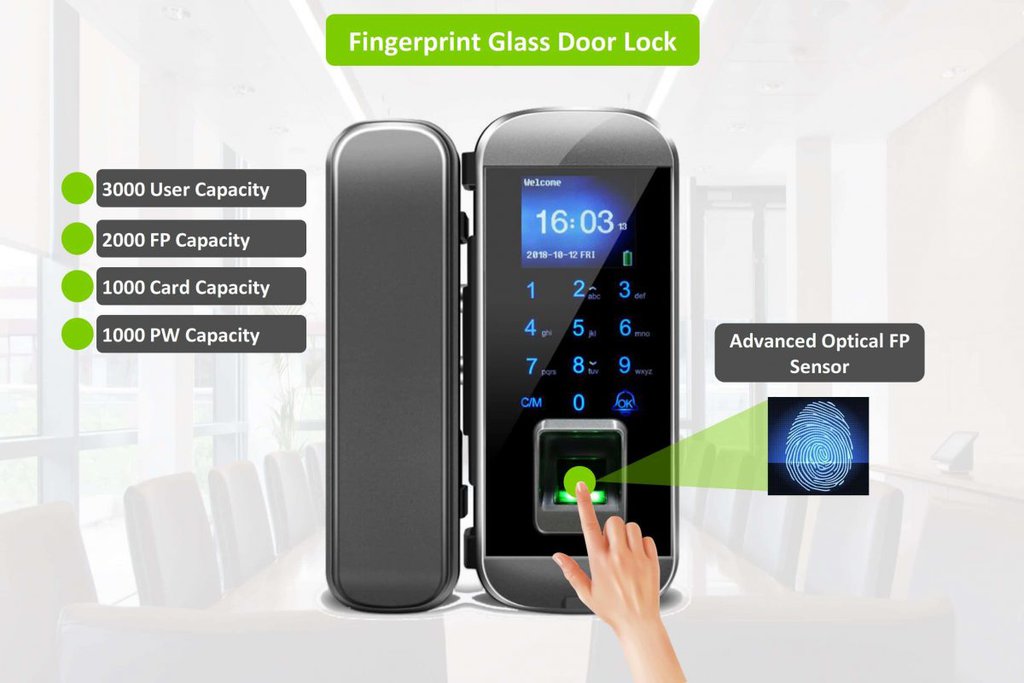

◆Big Capacity: 2000 Fingerprint, 1000 RFID card, 1000 Password
◆Multiple Verificaction Mode: Fingerprint, RFID Card, Password or Combined
◆Remote lock/unlokc: Supports around 30m distance
◆Support external emergency power input from USB
◆User-friendly interface: 1.77 inch TFT screen and T9 touch board input

Ask for price

Description:

LK-1101 is a fassionable and compact Fingerprint lock for glass door use. It supports 2000 user capacity, including 2000 Fingerprint, 1000 RFID and 1000 Password. You can unlock door by Fingerprint, RFID, Password and Remote Controller (Optional). The lock also supports time attendance function. Through USB ports, you can upload work schedule settings and download attendance reports conveniently.

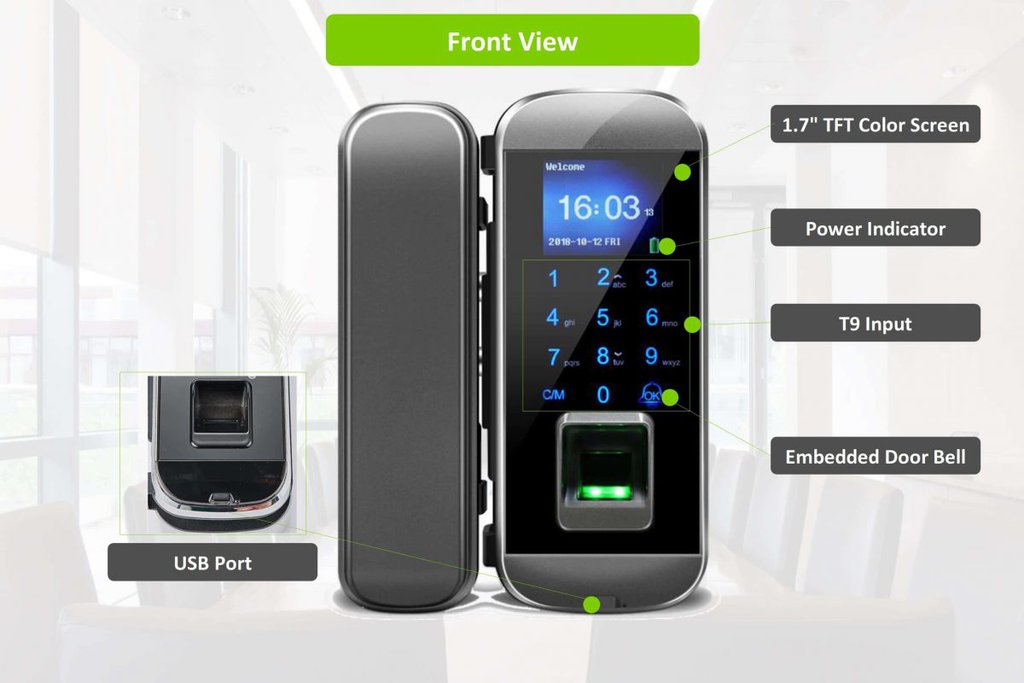

It adopts 1.77″ TFT colorful screen, T9 input, touch keyboard with backlight, which offers a wonderful user-friendly interface. Besides, it comes with embedded door bell and door sensor.

One of the biggest features on this lock is without drilling any holes, you can install it well on glass door within 10 minutes.

Features:

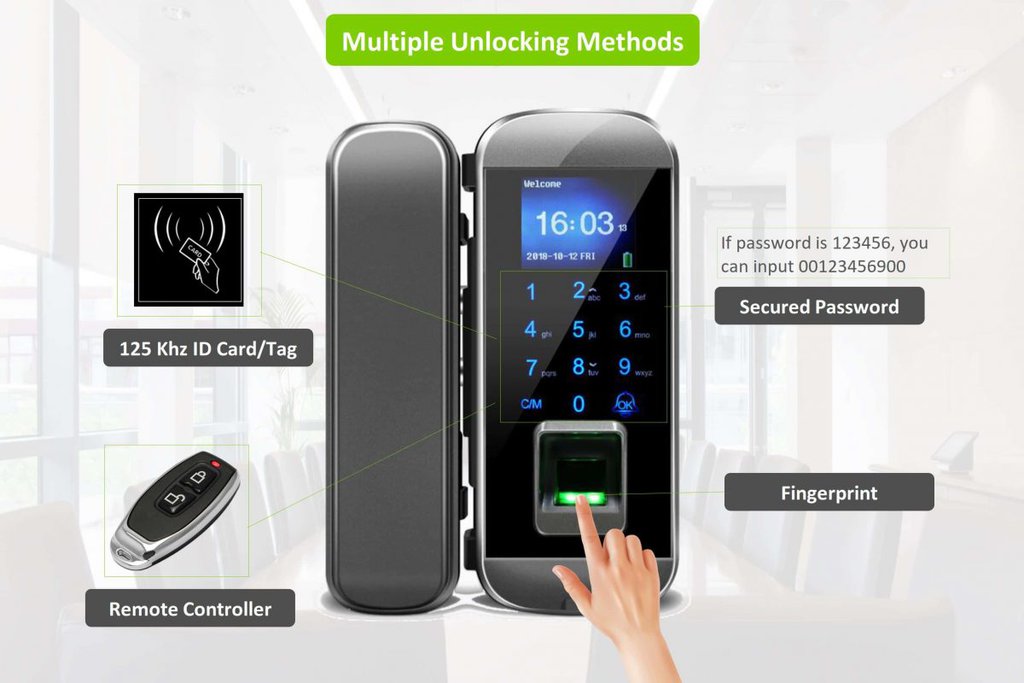

◆Multiple Verification Methos: Fingerprint, RFID, Password
1.77 inch TFT screen
Simple Time Attendance function
Embedded Door Bell
Remote Controller to lock and unlock

Specifications:

Display1.77 Inc h T F T LCD
SensorA dvanced Optical Sensor
Materia lL ock:Zinc Alloy /Cylinder:Stainless Steel
F ingerprint Capacity2000
RFID Capacity1000
Password Capacity1000
Time Attendance Yes, with SSR export
NO/NC ModeNC(Default), NO (Manual Set)
V erification SpeedLess than 0.5s
Remote ControllerYes (Optional)
Remote Controll Distance20m (Max.)
Door BellEmbedded
Glass Door RequirementDoor thinkness:1-1.2cm; Door Gap:0.5-1cm
Lock BodyLeft or Right (Adjustable)
Operating Temperature -20℃ to 45 ℃
Operating Humidity20% to 80%
Power SupplyDC 4.0 - 6.0V ( 4*1.5V AA Battery )
Working Current≤30 UA
Dimension (Lock Body)180mm * 67mm * 65mm
Gross WeightAbout 1.00KG

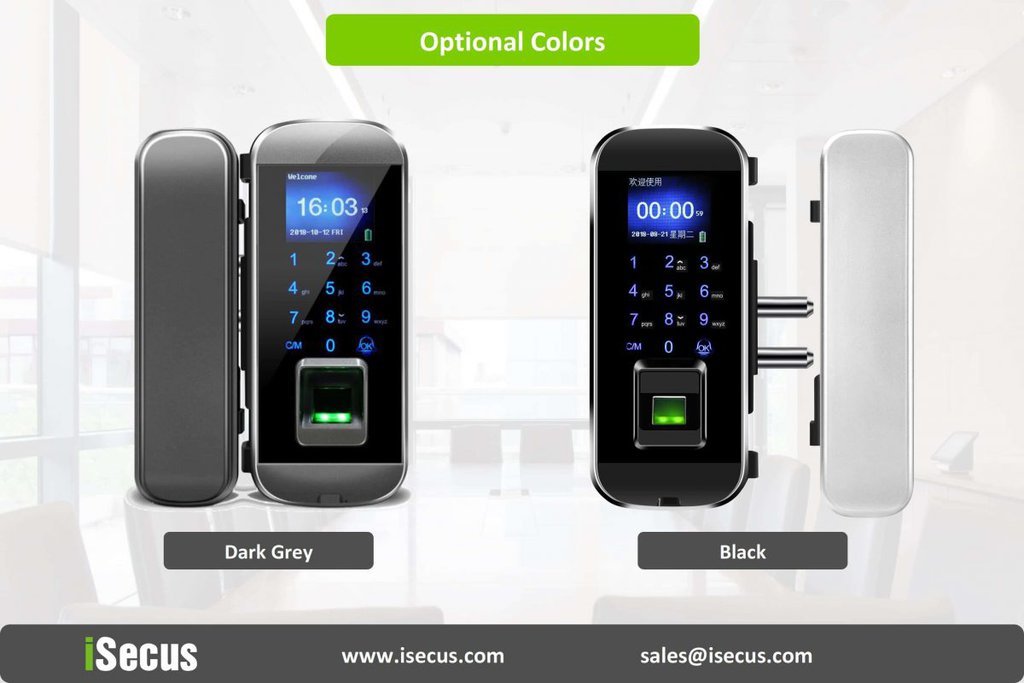

Available ColorBlack, Dark Grey
RemarkA ground lock is needded for dual-open door
