• LK-1108 Semiconductor Fingerprint Glass Door Lock
  • LK-1108 Semiconductor Fingerprint Glass Door Lock

Model: LK-1108

Semi-conductor Fingerprint Glass Door Lock

General Specifications:

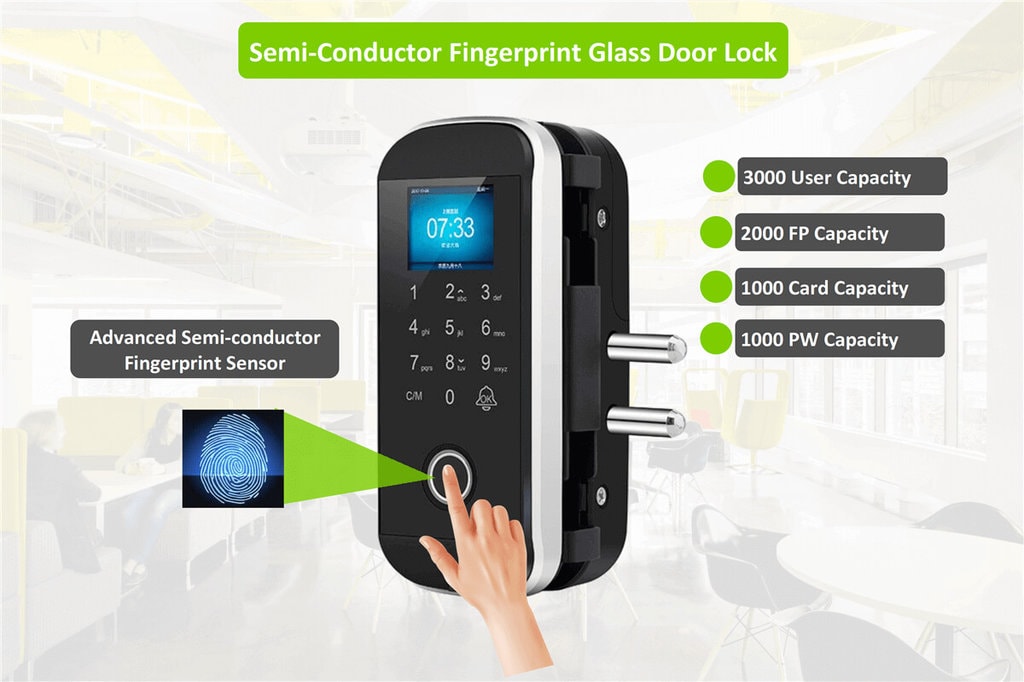

◆Big Capacity: 2000 Fingerprint, 1000 RFID card, 1000 Password
◆Multiple Verificaction Mode: Fingerprint, RFID Card, Password or Combined
◆Remote lock/unlokc: Supports around 30m distance
◆Support external emergency power input from USB
◆User-friendly interface: 1.77 inch TFT screen and T9 touch board input

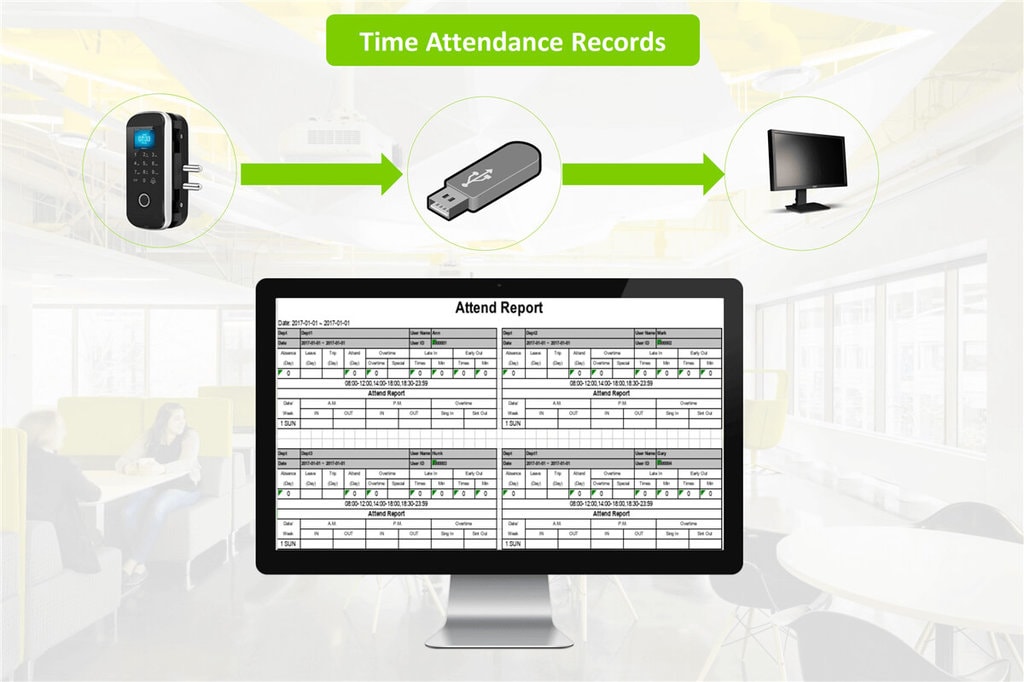

LK-1108 is a standalone Fingerprint glass door lock which adopts semi conductor fingerprint sensor. It supports 3000 user capacity, including 2000 Fingerprint, 1000 RFID and 1000 Password. The door could be locked & unlocked by Fingerprint, RFID and Password , together with remote controller. It is also a time attendance device. Related time attendance logs and staff info can be exported easily through USB.

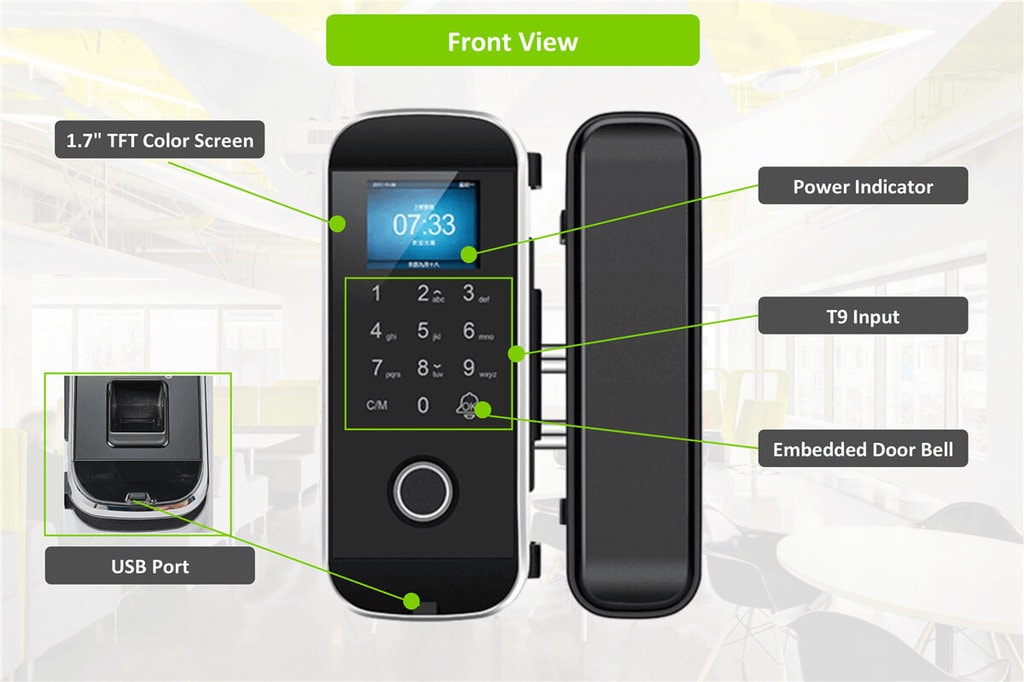

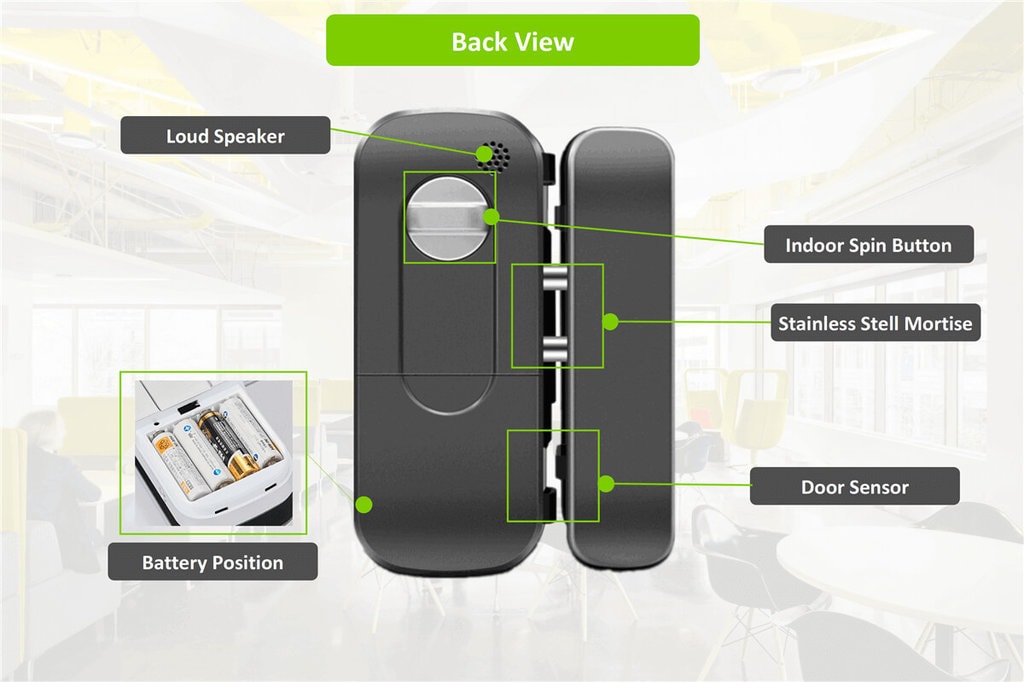

It adopts 1.77″ TFT colorful screen, T9 input touch keyboard with backlight, which offers a wonderful user-friendly interface. Besides, it is embedded with door bell and door sensor.

By default, we offer the lock which is suitable for dual-open glass door. Without drilling any holes, you can install the lock fast. Fingerprint lock for single-open glass door is optional.

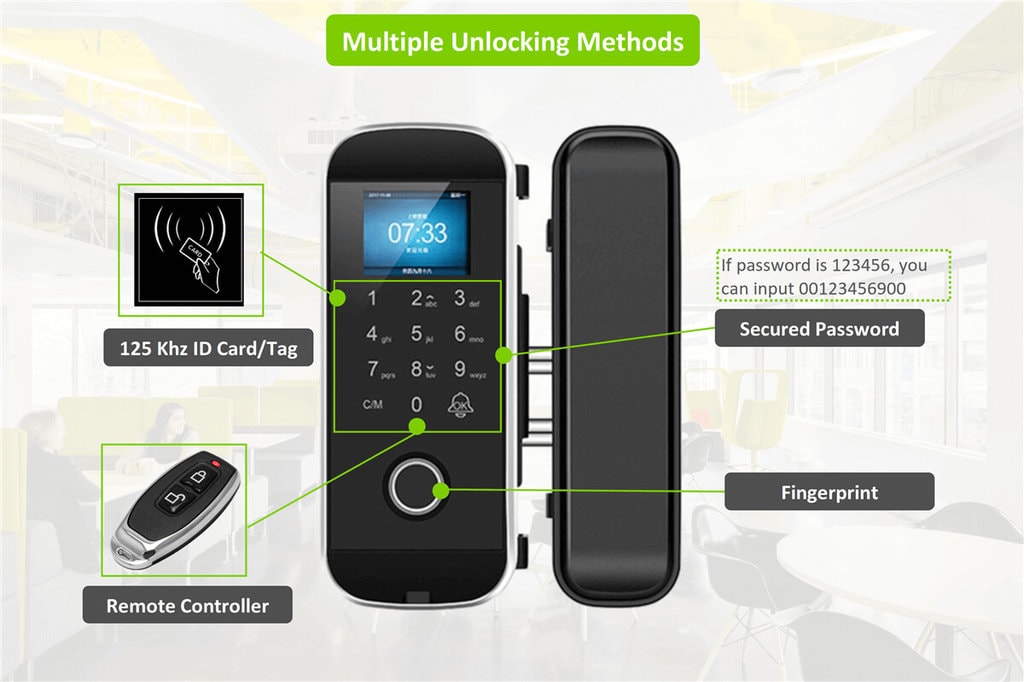

◆Multiple Verification Methos: Fingerprint, RFID, Password
1.77 inch TFT screen
Simple Time Attendance function
Embedded Door Bell and Door Sensor
Remote Controller to lock and unlock


Display1.77 Inc h T F T LCD
SensorA dvanced Semi-conductor Sensor
Materia lL ock:Zinc Alloy /Cylinder:Stainless Steel
F ingerprint Capacity2000
RFID Capacity1000
Password Capacity1000
Time Attendance Yes, with SSR export
NO/NC ModeNC(Default), NO (Manual Set)
V erification SpeedLess than 0.5s
Remote ControllerYes (Optional)
Remote Controll Distance20m (Max.)
Door BellEmbedded
Glass Door RequirementDoor thinkness:1-1.2cm; Door Gap:0.5-1cm
Lock BodyLeft or Right (Adjustable)
Operating Temperature -20℃ to 45 ℃
Operating Humidity20% to 80%
Power SupplyDC 4.0 - 6.0V ( 4*1.5V AA Battery )
Working Current≤30 UA
Dimension (Lock Body)180mm * 67mm * 65mm
Gross WeightAbout 1.00KG

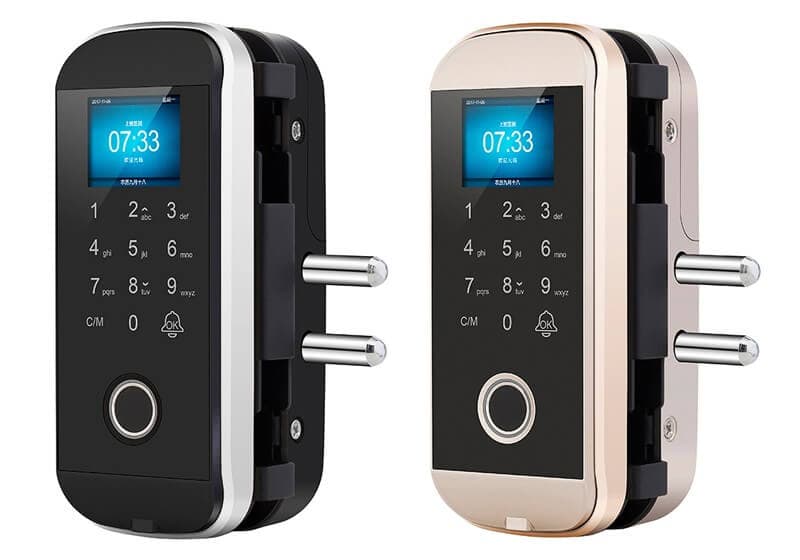

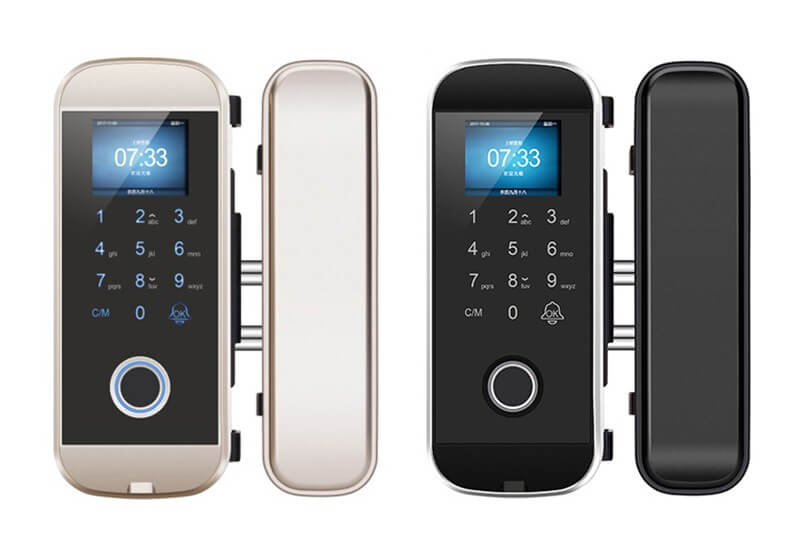

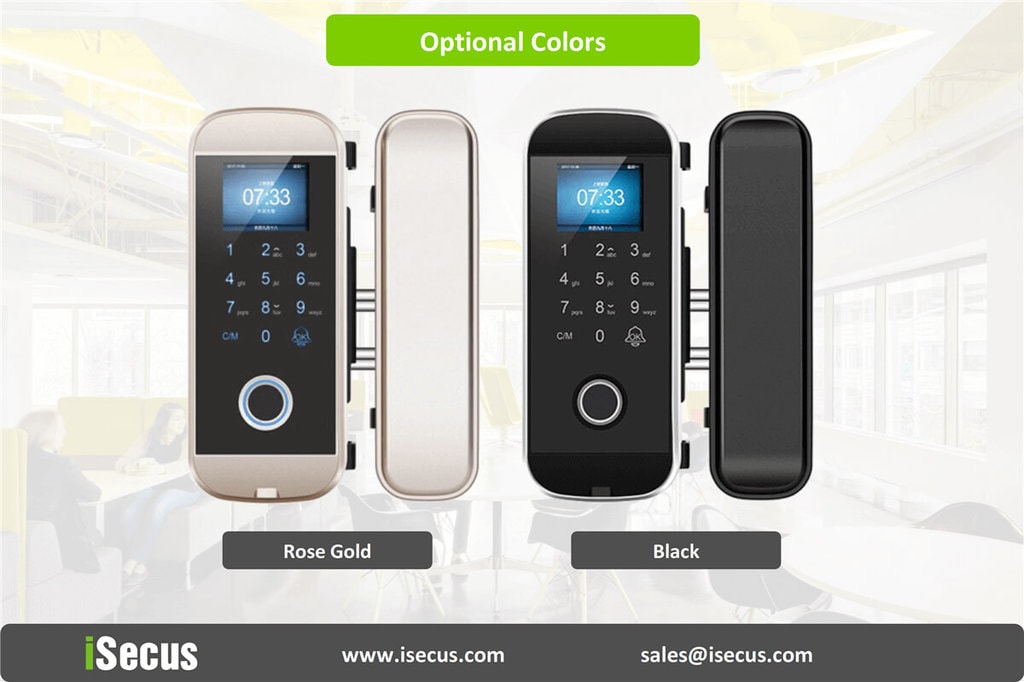

Available ColorBlack, Gold Rose
RemarkA ground lock is needded for dual-open door
