Model: LK-8801

Advance Fingerprint Lock for Glass Door

General Specifications:

◆Big Capacity: Fingerprint 2000, RFID card 1000, Password 1000
◆Multiple Verificaction Mode: Fingerprint, RFID Card, Password
◆Remote lock/unlokc: Supports around 30m distance
◆Easy installation: No need to drill holes
◆User-friendly interface: 2.4inch TFT screen


LK-8801 is a fassionable glass door lock, with fingerprint, RFID and password verification. It also support one-key unlocking and locking through remote controller (Optional). This lock comes with time attendance function, related attendance log could be exported through USB disk. Besides, it is embedded with doorbell.

The biggest installation feature on this lock is that no need drilling hole in the glass door or setting wiring program (dual-open doors), it could be installed easily and quickly.

The lock supports 2.4TFT screen, T9 input, touch keyboard with backlight, which offers a wonderful user-friendly experience.

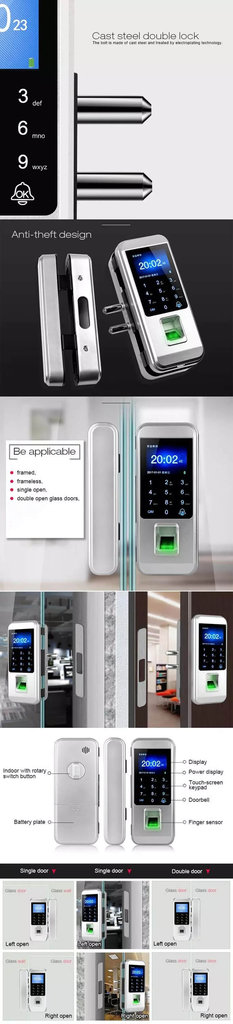

Fast Fingerprint Verification Speed
◆RFID and Password verification
2.4 inch colorful TFT screen
Simple Time Attendance function with SSR report export
Embedded Door Bell
Remote Controller operation


Display2 . 4 Inc h T F T LCD
SensorA dvanced Optical Sensor
Materia lL ock:Zinc Alloy /Cylinder:StainlessSteel
F ingerprint Capacity2000
RFID Capacity1000
Password Capacity1000
Time Attendance Yes, with SSR export
NO/NC ModeNC(Default), NO (Manual Set)
V erification SpeedLess than 0.5s
Remote ControllerYes (Optional)
Remote Controll Distance20m (Max.)
Door BellEmbedded
Glass Door RequirementDoor thinkness:1-1.2cm; Door Gap:0.5-1cm
Lock BodyLeft or Right (Adjustable)
Operating Temperature -20℃ to 45 ℃
Operating Humidity2 0% to 80%
Power SupplyDC 4.0 - 6.0V ( 4*1.5V AA Battery )
Working Current≤30 UA

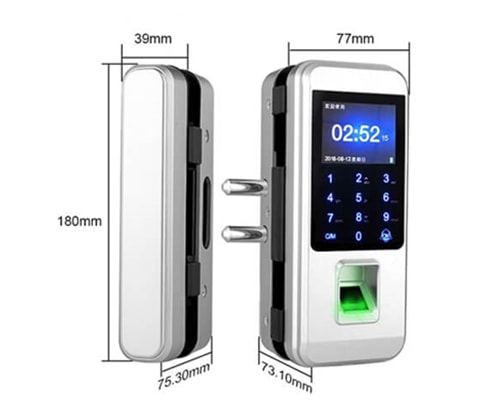

Dimension (Lock Body)190mm * 76mm * 73mm
Gross WeightAbout 1.00KG

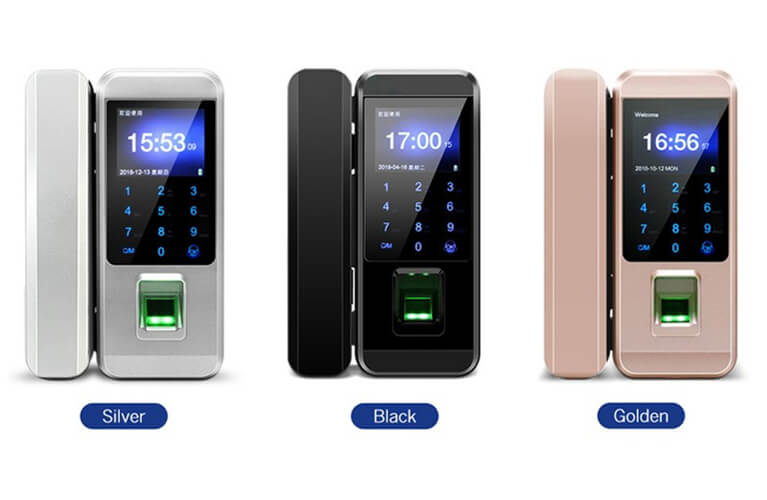

Available ColorB lack, Silver, Rose Gold
RemarkA ground lock is needded for dual-open door
