Project Description

  • D100 Wireless Door Sensor Window Sensor 433MHZ
  • D100 Wireless Door Sensor Window Sensor 433MHZ
  • D100 Wireless Door Sensor Window Sensor 433MHZ

Model: D210

WiFi Door Sensor and Window Sensor

General Functions:

Door and Window open/Close reports

Low Battery Reports

App Push Notification

◆Tamper Alarm

Ask for price

Specifications:

Power Supply DC 3V (CR2032 Lithium Battery * 1)
Standby Current < 2 uA
Alarm Current <15m A
Emission Distance >80m (in Open Area)
Radio Frequency 433Mhz by default
Optional Radio Frequency 315Mhz, 868Mhz
Working Temperature 0-55 degree
Installation Gap Allowed 25mm (Max.)
Transmitter Dimension 69*23*9mm (L*W*H)
Magnet Dimension 52*8.5*9mm (L*W*H)
Standard Function Remote Monitoring, Power Display, Tamper
Alerm, Emergency Button

Description:

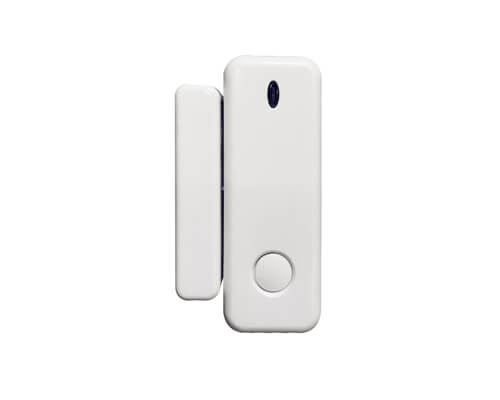

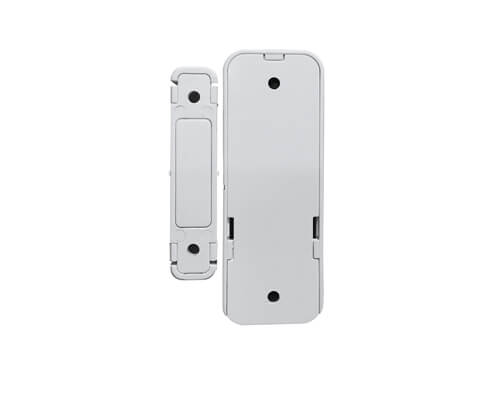

This wireless door and window sensor adopts 433MHZ RF Technology. It can be installed in any door or window. When alarm is triggered, related alarm signal will be sent to the alarm host for further response.
If connects with GSM Alarm system, SMS will be sent to cellphone, once there is any alerm like low battery and triggerd alarm.

It can connect with all 433MHZ Alarm Host (EV1527/2262 Code) in the market.

General Features:

◆Embedded with emergency button

Low battery alarm notification

Tamper alarm notification

Contact us to get distribution price for your market
D100 Wireless Door Sensor Window Sensor 433MHZ

Click to download realated documents:

D210 WiFi Door Sensor and Window Sensor Datasheet.pdf
