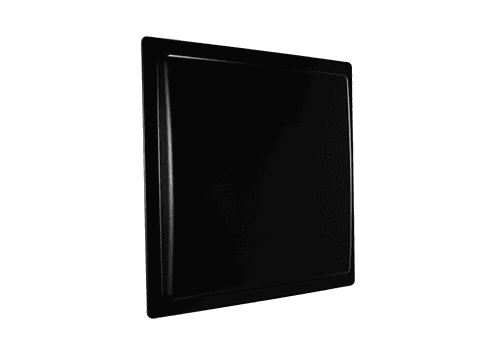

Model: U1000/U2000

UHF RFID Standalone Terminal/UHF Reader with Access Control

General Configuration:

◆Long Reading Distance
IP66 Protect Level
◆ID card Capacity: 5000
◆Communication: TCP/IP, USB, Wiegand input and output
◆Access Control Interface for electric lock,door sensor,alarm,exit button.

Description:

U1000 and U2000 are long distance RFID access control machines which integrate functions of UHF readers and controllers. Compared with UHF readers, they increase access control functions and support TCP/IP communication, Wiegand in/out, two relays, 3rd party electric lock, door sensor, exit button, which enable easy installation and convenient use.


The machines also support Access 3.5 and BioSecurity 3.0 software. They have obtained IP66 protection level certification and is suitable for outdoor use. With outstanding long distance identification capability, the machines can be used in many applications including long distance fixed vehicle access management, long distance access control management and long distance pedestrian access management

Features:

◆Long distance identification for access control management
◆5000 Cards big capacity
◆TCP/IP communication for remote management
◆Professional Access Control Functions: Anti-passback, Access control interface for 3rd party electric lock, door sensor,exit button
◆IP66 waterproof level suitable for outdoor applications

Specifications:

Model U1000E, U1000F U2000E, U2000F
Card Capacity 5000 cards
Transactions 30000
Hardware Platform ZMM220
Working Frequency F Series: 902Mhz-928MHz; E Series: 865MHz-868MHz
Reading Distance 0 - 6m (Stable is 0 - 5m) 0 -12m (Stable is 0 -10m)
Communication TCP/IP (connect access software) , USB (connect demo)
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Wiegand In/Out
Access Control Functions Standard access functions, anti-passback
Antenna Gain 8dBi 12dBi
Output Power 18dBm-26dBm
Support Software ZKAccess3.5, ZKBioSecurity3.0
Power Supply DC12V, 3A
Working Temperature -20 ℃ -+60 ℃
Working Humidity <95% (25 ℃ )
Dimension 250mm*250mm*70mm (±5) 445mm*445mm*70mm (±5

Long Distance Access Control

UHF Reader Long Distance Access Control Application-2

Long Distance Fixed Car Parking

UHF Reader Long Distance Access Control Application
