Project Description

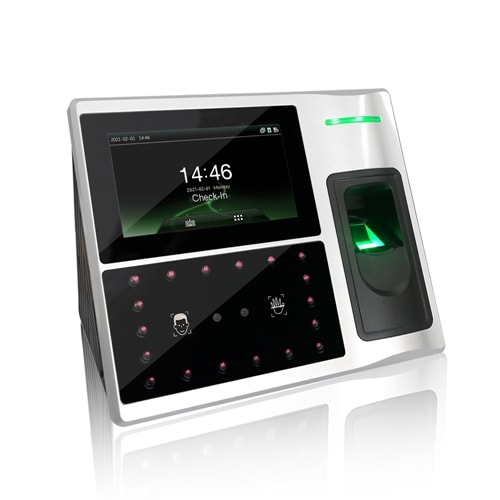

  • ZKTeco UFace802Plus Palm Face Fingerprint Time Attendance and Access Control-P1
  • ZKTeco UFace802Plus Palm Face Fingerprint Time Attendance and Access Control-P2

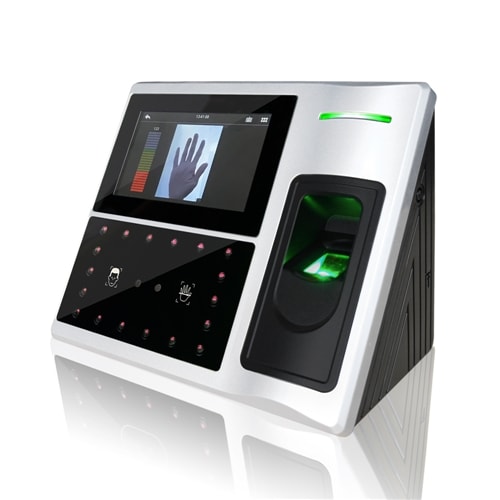

  • ZKTeco UFace802Plus Palm Face Fingerprint Time Attendance and Access Control-P3

Model: uFace802Plus
Palm, Face, Fingerprint Recognition Time Attendance and Access Control

General Configuration:
Face capacity: 3000
Palm capacity: 3000
Fingerprint capacity: 6000
ID Card Capacity:10,000 (Optional)
Record Capacity:100,000
Communication: TCP/IP, RS232/485, WiFi, USB-Host,Wiegand Out
Standard functions: ADMS, Web Server, Multilpe Vertification Mode, Advance Access Control, Battery Backup
Access Control Interface for Third Party Electric Lock, Door Sensor and Exit Button, Alarm
Optional functions: ID/MF Module, 3G, External printer

This device is suitable for big enterprises. Brand-new device, High Quality, Good Price and Fast Shipment.

Ask for price


uFace802Plus is a newly released multibio recognition terminal with time attendance and access control function. It comes with a big capacity, reaching 3000face, 3000palm and 6000fingerprint. It is equipped with ZK’s latest hardware platform and 3-in-1 contactless palm recognition algorithm(Palm Shape, Palm Print and Palm Vein). Thefore, the terminal can perform bio-authentication with the palm vein, palm print, and the shape of the palm when the sensor detects a hand presented.

The terminal’s touchless palm authentication method with a novel hand tracking technique allows angle tolerance as wide as ±60° in the roll axis. With the advanced palm, face, fingerprint algorithm and multi-biometric verification technology, users can enjoy the terminal’s enhanced anti-spoofing ability. This will significantly enhance the security level.

Less than 1s verification speed is reached. Because of its large user capacity, uFace802Plus could be used in many applications.

◆ Big Capacity: 3000Face, 3000Palm, 5000Fingerprint, 10000 Card
◆ Combined Multi-bio Verification Mode
◆ 4.3” Touch LCD: Touch screen with user-friendly interface
◆ Multiple Communication: RS232/485, TCP/IP, WiFi, USB Host, easy to manage the device
◆ Embedded Backup battery can support around 4 hours continuous operation
◆ Schedule Door Bell: Embedded bell and external bell connection
◆ Built-in Audio Function: Prompt audio acceptance or rejection for valid or invalid
◆ Wiegand Output: Can connect with external control panels

Display4.3-inch Touch Screen
Face Capacity3000
Palm Capacity3000
Fingerprint Capacity4000
Card Capacity10,000 (optional)
Log Capacity100000
CommunicationTCP/IP, USB Host, RS232/485, WiFi, 3G (optional)
LanguagesMulti-languages, English, French, Spanish, Arabic, Turkish, Portuguese, Hebrew, Korea, Thai, etc
Standard FunctionsWeb-server, Work Code, SMS, DST, Record Query, Automatic State Switch,Photo ID, ADMS, Scheduled Bell, T9 Input, 9-digit User ID, Multi-Verification Methods, Advanced Access Control, Backup Battery
Interfaces of Access Control3rd-Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand SignalWiegand Out
Optional FunctionsID/MF/HID Card, WiFi, 3G, External Bell/Printer, 485 Reader
AlgorithmsZKFace V12.0 & ZKFinger V10.0 & ZKPalm V12.0
Power SupplyDC 12V/3A
Operating Temperature0°C - 45°C / 32°F - 113°F
Operating Humidity20% - 80%
Dimensions (L*H*D)193.54 * 165.14 * 111.48 (mm) / 7.620 * 6.502 * 4.389 (in)
Gross Weight1.65kgs

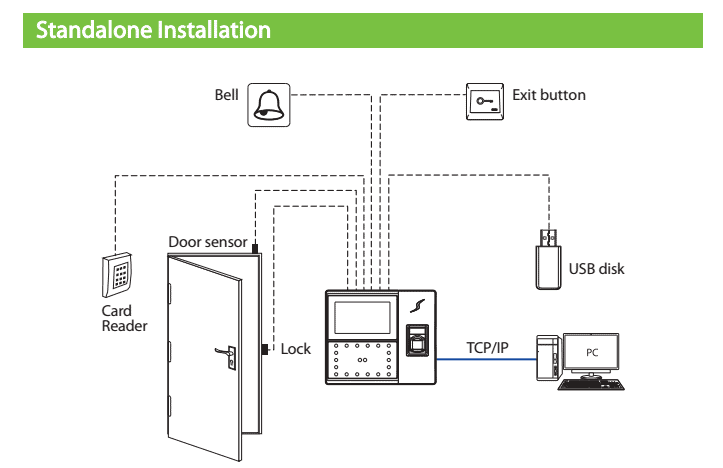

ZKTeco uFace800 Connection Diagram

uFace800Plus Palm Face Time Attendance Catalogue

uFace800Plus Series Quick Start Guide

uFace800Plus Series User Manual

ZKTime5.0 PC Software
