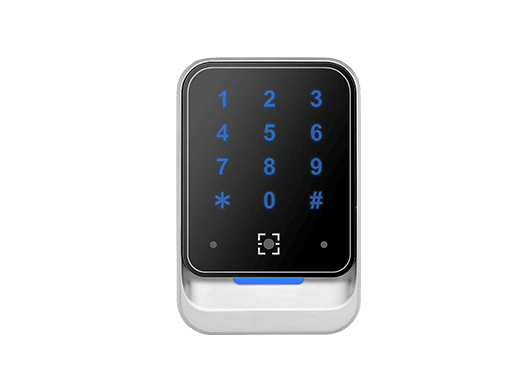

  • QR800 Dynamic QR and RFID Wiegand Reader with touchkey boards-p1

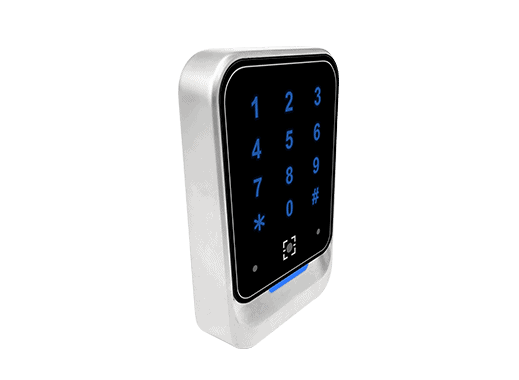

  • QR800 Dynamic QR and RFID Wiegand Reader with touchkey boards-p2

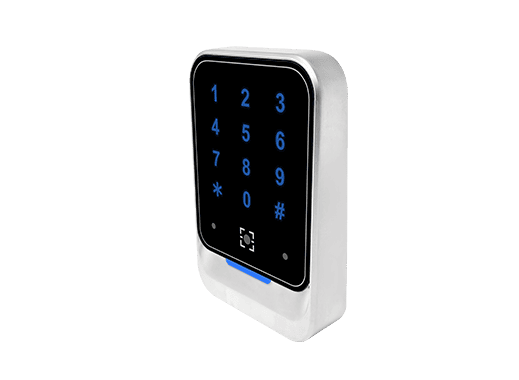

  • QR800 Dynamic QR and RFID Wiegand Reader with touchkey boards-p3

Model: QR800

QR Code & RFID Wiegand Reader with Keyboard

General Configuration:

Supports both Barcode and Dynamic QR code
Supports 13.56Mhz RFID card and NFC
Reading Distance: QR ≥ 10 CM, RFID Card ≥ 3CM
Supports W26/W34/W66, RS485 communication ports
IP65 Waterproof Metal Case for outdoor environment
Compatible with ZKTeco C3 and Inbio access controllers by default

Distribution Inquiry
Buy Online


QR800 is a dynamic QR code and RFID wiegand reader for access control system, with touch keyboards and dual compensation lights. The reader adopts advanced technology, reaching fast scanning speed at high accuracy rate. It works well under day & night environment. It is compatible with any access control panel that supports wiegand26/34 input. By default, QR800 reads 13.56Mhz proximity card, NFC, QR code and password.

The QR reader is equipped with metal frame and toughened glass faceplate. Related case meets IP65 waterproof standard with anti-exposion feature. The reader could be applied to wide applications, like Apartments Management, Visitors Management, Hotel Management, Self-service Supermarkets, Elevator System, etc.


International StandardISO/IEC 14443A RS485 Protocol
QR Code StandardQR,  Data Matrix,  PDF417,  GS1 Databar,  Code 128/EAN128,  UPC/EAN, Codabar,  Code 39/Code 93
QR Code TypesElectronic QR Code, Paper QR Code, Dynamic QR Code
RFID CardUltralight,  MF1(S50,S70),  DESFire EV1,  NTag,  NFC,  CPU,  or ISO/IEC 14443A
Operation Frequency13.56 Mhz
Working Voltage12V (No more than 200mA), 5V USB (No more than 500mA)
Resolution 648×488
Reading DistanceRFID>5cm, QR 5.0-18.0cm (Depends on QR Code size , Light Intensity)
Speed100ms (On average)
CommunicationsWiegand 34/26(Default WG34),  RS485
MaterialMetal Frame, Toughened Glass
KeyboardsTouch Keyboards with back light
Working Temp -10℃~+50℃
Working Humidity 20% ~ 80%
Waterproof StandardIP65
Dimension QR700 & QR701: 138*58*22.67mm
QR800 & QR801: 120*80*22.67mm
