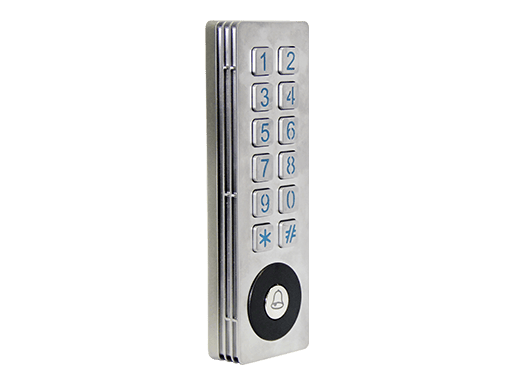

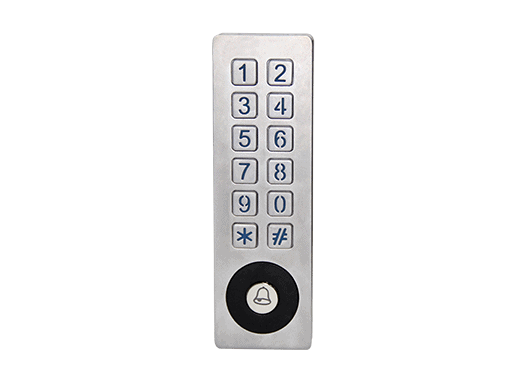

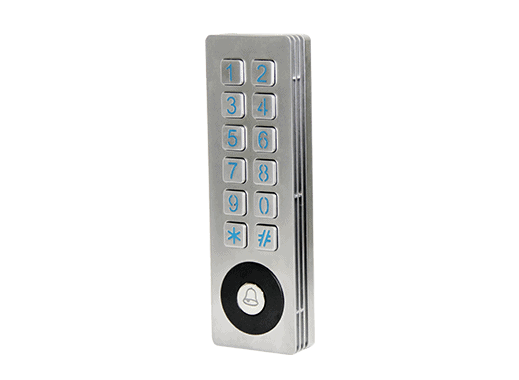

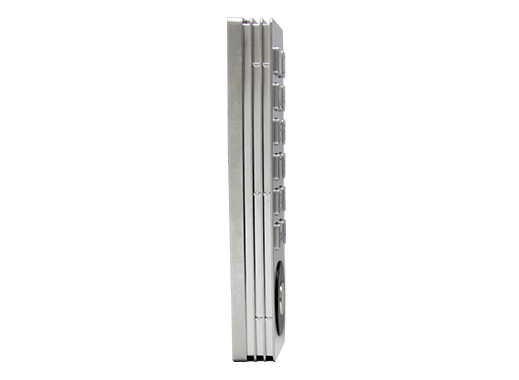

Model: RT373

RFID Access Control with IP65 waterproof metal case

Main Features

* Waterproof case, suitable for outdoor installation
* Supports RFID and Password verification
* Supports 5000 user capacity
* Backlight Light for night use
* Embedded Door Bell function
* With Wiegand 26/34 output, can work as slave reader for access control system

Description:

RT373, is a standalone waterproof RFID access control device with IP65 metal case and touch keypads. It supports fast verification with passwords and RFID cards. The device’s user capacity reaches 5000, suitable for a wide range of access control applications.

RT373 is not only a standalone device, but also can be used as slave readers for control panels like C3 and Inbio, and A&C standalone devices like F18, F19, F21, F22, TF1700. It is convenient to switch the device from access control mode to reader mode.

Specifications:

RFID Frequency 125KHz(Standard), 13.56MHz(Optional)
Protection Standard IP65
Operating Voltage DC9 - 14V
Operating Temperature -10°C ~ 60°C (14°F ~ 140°F)
Humidity Storage 15% ~ 90%
Dimensions (L*W*H) SKW-V: 160 * 50 * 20.5 (mm), SKW-H:120 * 86 * 20.5 (mm)
User Capacity5000
Password Capacity5000
Password Length4 to 6 digits
Verification Modes:Card Only / Password Only / Card + Password
Access Control Interface1 Relay, 1 Door Sensor, 1 Exit Button, 1 Doorbell, 1 Tamper Alarm
Wiegand Reader ModeW26/W34 Output

SKW Access Control Connection and Reader Connection

Download

RT373 RFID Access Control Datasheet.pdf

RT373 RFID Access Control User Manual
