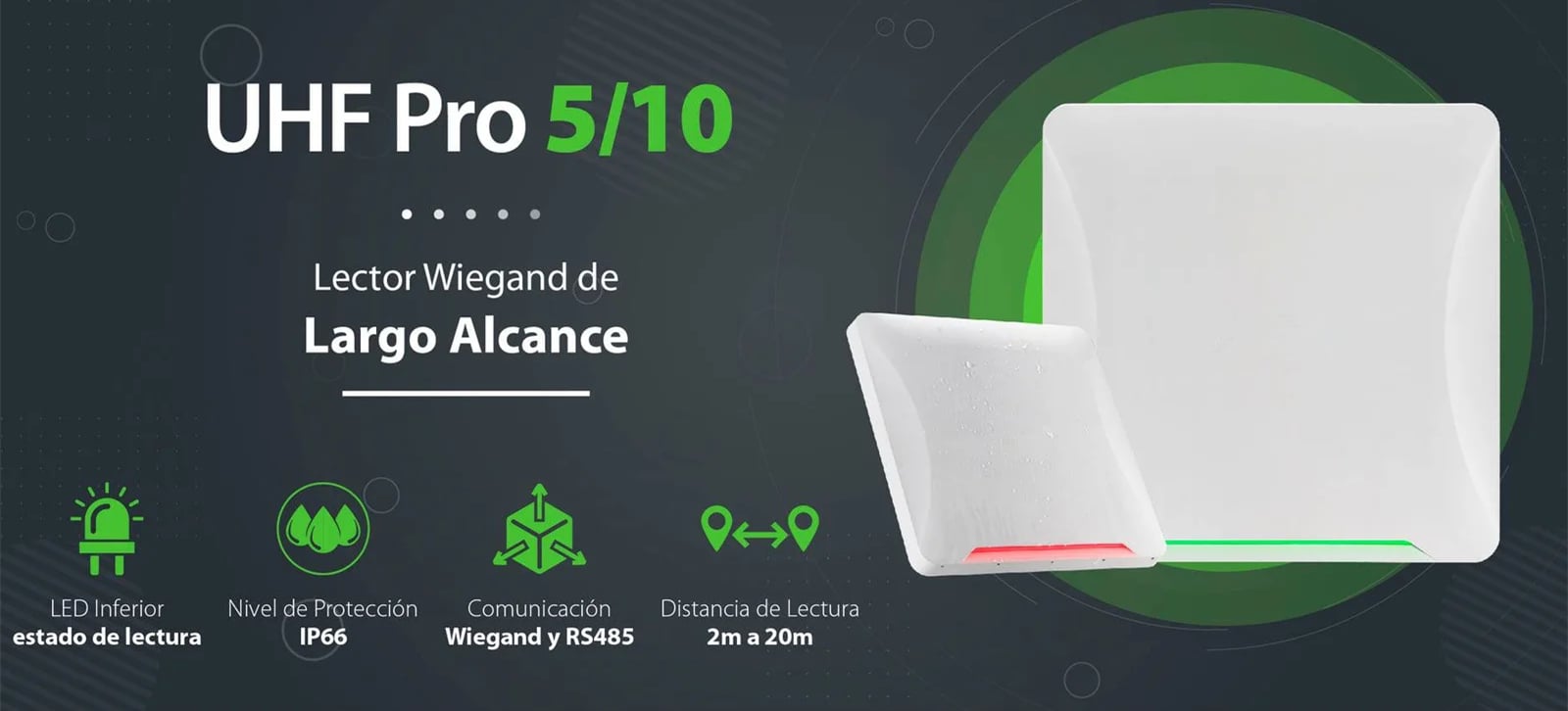

Model: UHF5 Pro, UHF10 Pro
ZK Long Range RFID Reader/UHF Reader for Access Control
General Configuration:
√ Reading Distance: UHF 5 Pro(5m), UHF10 Pro(10m)
√ Frequency: E Series 865MHz – 868MHz(Common in EU), F Series 902MHz – 906MHz(Common in America)
√ Working Mode: Read Always (Default) and Read by Trigger
√ Multiple Types of LED indicator
√ Communication: Wiegand, RS485, USB
√ IP66 waterproof level for outdoor use
√ Protocol Supported: EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Description:

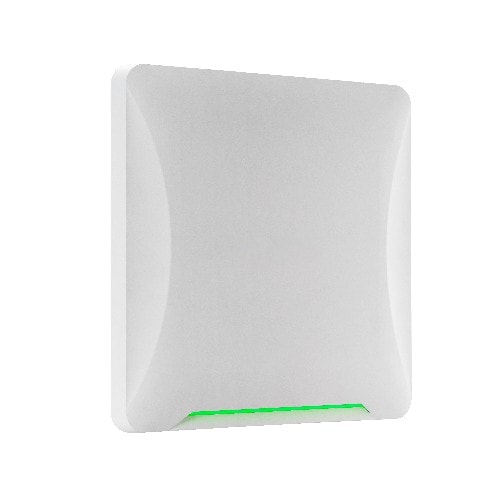

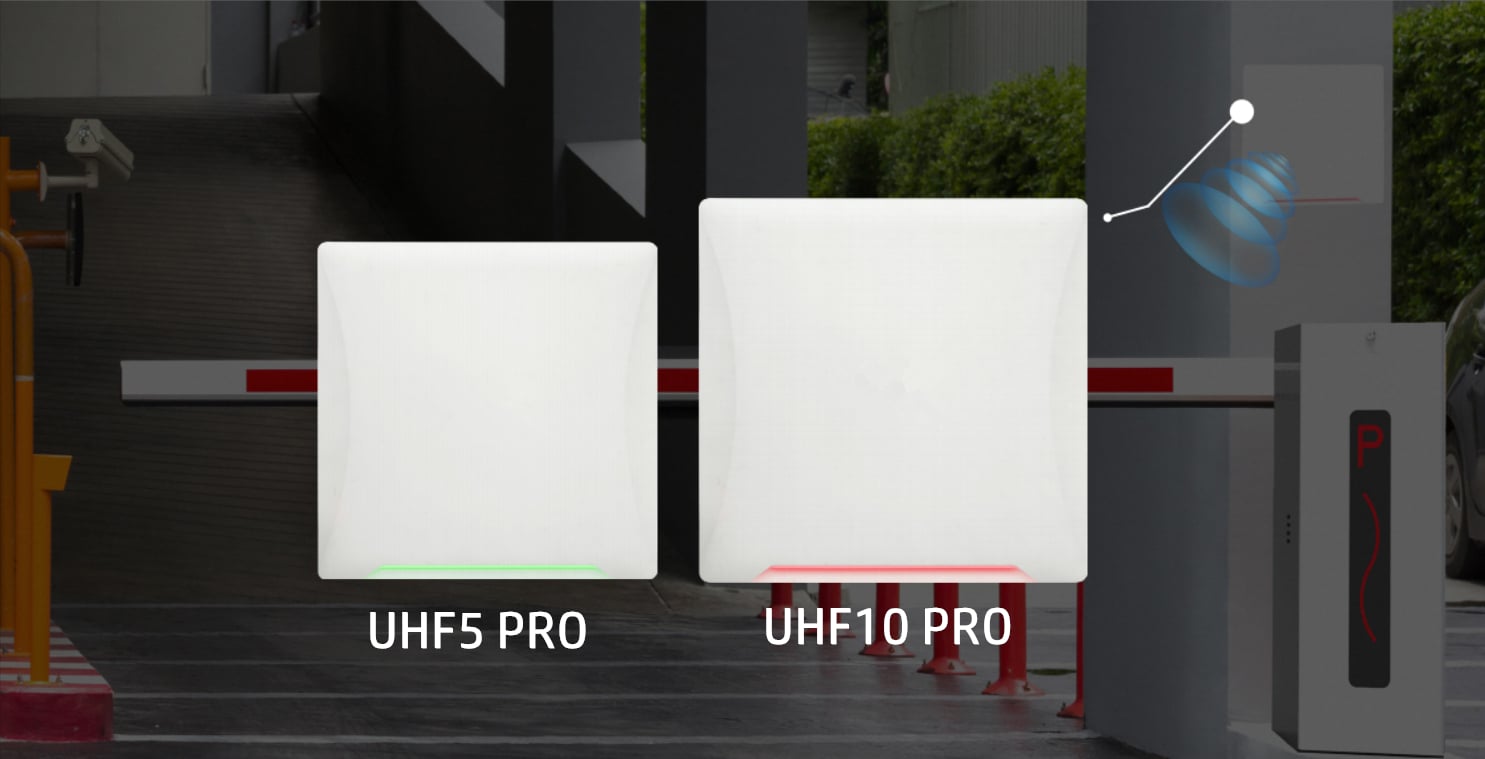

UHF5 Pro and UHF10 Pro are ZKTeco‘s third-generation UHF readers, with much stable performance, longer
reading distance, and faster recognition speed.
The UHF reader is equipped with the passive UHF card function, which could be widely used in Vehicle Management and Personnel Management applications.
The product also meets the CE, FCC technology requirements.
Features:
◆Support two working modes: Trigger to Read & Always Read (Default)
◆Support different wiegand data output (Wiegand 26 by default)
◆LED at the bottom of readers indicating the reading status (7-color indicators: red, green, blue, yellow, cyan, purple, white)
◆Multiple communication modes: support Wiegand 26/34/66 and RS485, USB
◆Protection level of IP66
Specifications:
| Model | UHF5E Pro & UHF5F Pro | UHF10E Pro & UHF10F Pro |
| Reading Distance | 2 to 8 meters (Hand held test) (Actual scenario test is around 4m) | 10 to 20 meters (Hand-held test) (Actual scenario test is around 8m) |
| Antenna Gain | 9dBi | 12dBi |
| Dimensions (mm) | 308.5 *308.5 * 67.5 | 445 * 445 * 67.5 |
| Weight | 1.8kg | 3kg |
| Power | 1.2 - 4.2W | 1.2 - 4.5W |
| Frequency | E: 865MHz - 868MHz | F: 902MHz - 906MHz (adjustable) | |
| Communication Interface | Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options) | |
| Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C | |
| Working Mode | Read Always (Default) and Read by Trigger | |
| Output Power | 19dBm - 30dBm | |
| Protection Level | IP66 | |
| Working Voltage | DC 9-15V | |
| Working Temperature and Humidity | -20°C - 65°C; <85% | |
| Storage Temperature and Humidity | -20°C - 80°C; <85% | |
| RS485 Communication | Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200 |
Long Range RFID Reader UHF5/UHF10 Pro Application Scenario
Introduction about UHF Reader for Application Solution in Parking Lots
1. Register the UHF Tags

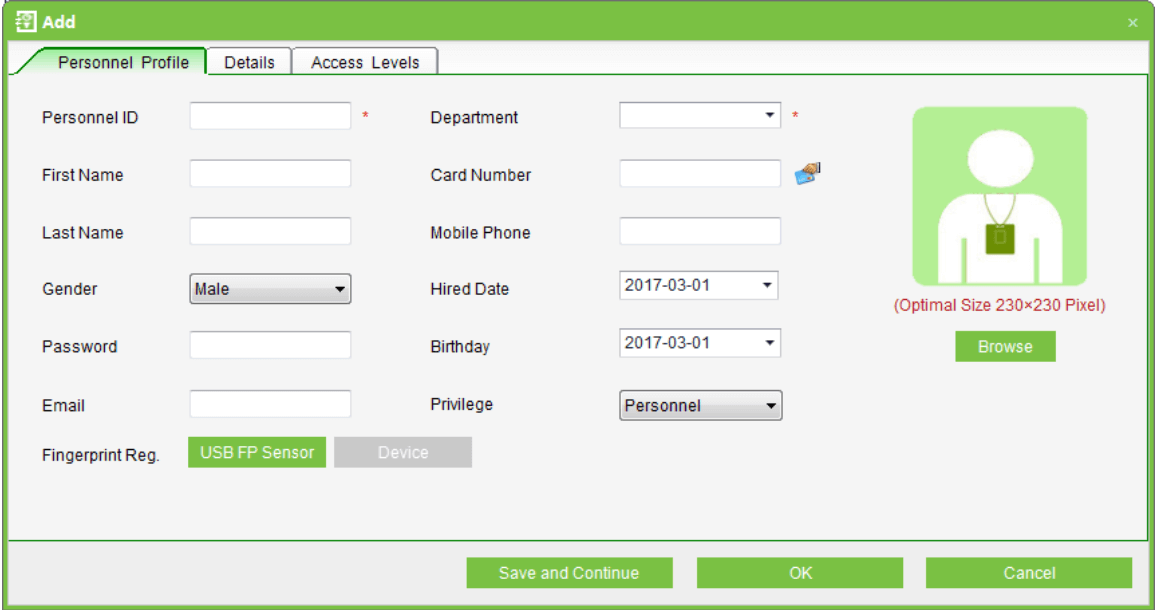

Connect the 868-915Mhz UHF Card Enroller to a computer, run the access control software (Here we use ZKAccess3.5 for reference). Click the Personnel Profile to register the UHF tags, as shown in below picture.
2. Install the UHF Tag

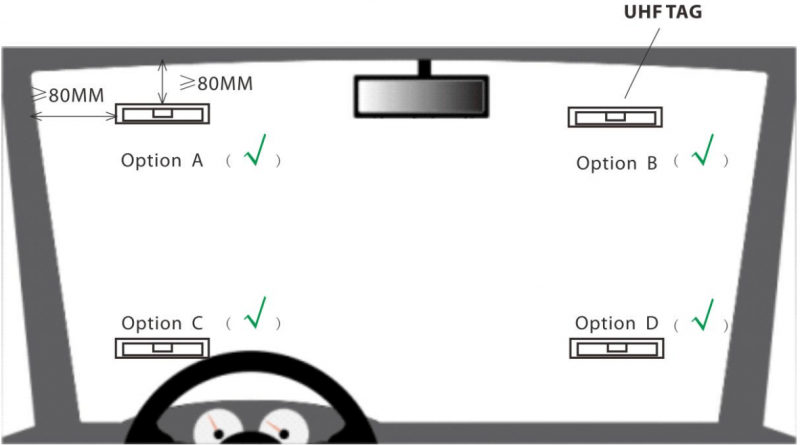

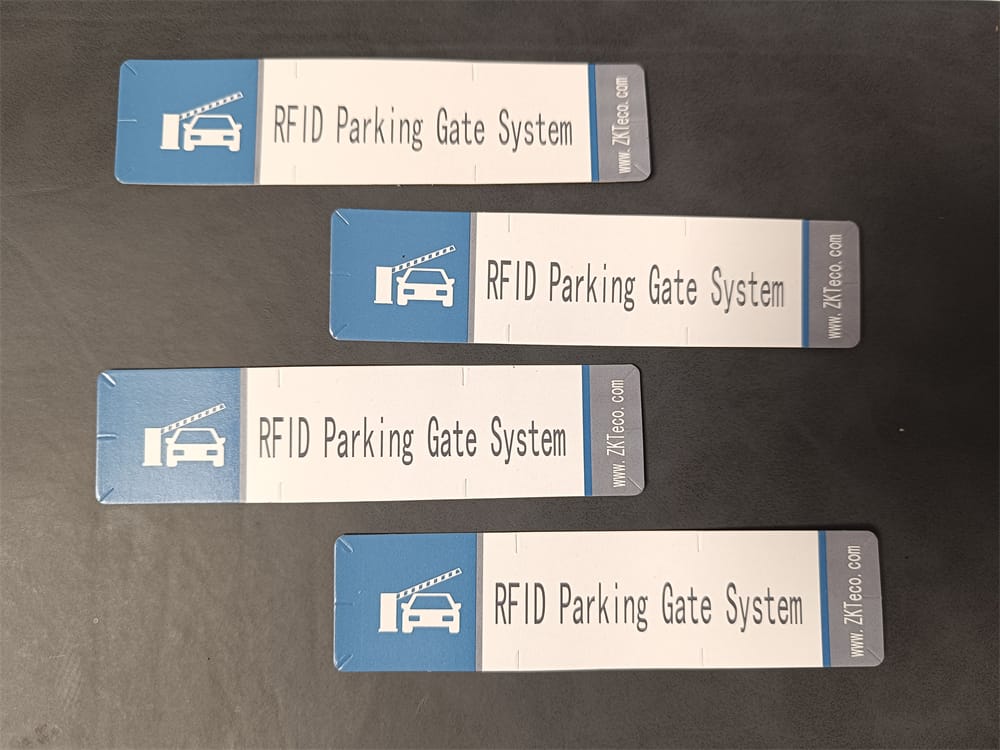

After Registration, install the UHF tag in an appropriate place on the windshield inside the car, as show in below picture. The distance between the UHF Tags and the metal frame shall be no less than 80mm.
3. Install the UHF Long Range RFID Reader

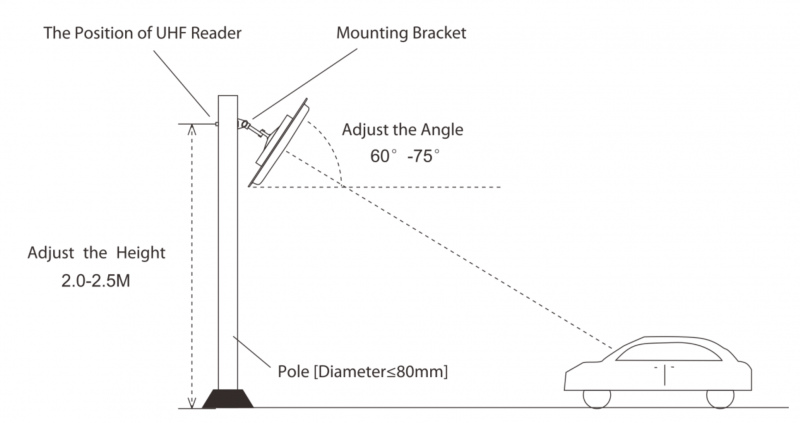

Please note the left and right angles of the UHF reader shall be adjusted so that the reader faces the coming vehicles
4. Application
The remote RFID system consists of a trigger, a detector, a controller, and a reader.
➢ Trigger: Ground sensing detector. When a vehicle drives into an area in which the ground induction coil is laid, the ground sensing detector is triggered and the UHF Reader reads the card. The ground sensing detector is optional as long as the card can be read within the effective distance.
➢ Detector: UHF RFID reader. When a vehicle enters the card reading distance, the reader reads the card and transmits the card information to the controller.
➢ Controller: ZKTeco controllers such as C3 and Inbio Series or other common controllers available in the market. The controller verifies the card information and outputs a relay signal for cards passing verification to the barrier gate of the parking lot.
➢ Executor: Upon receiving the relay signal from the controller, the barrier gate is opened, and the whole remote identification is finished.

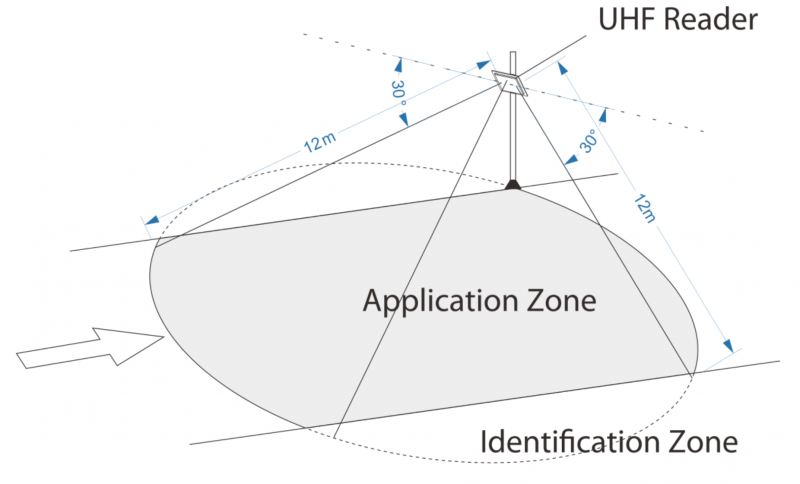

5. Diagram: Simulated reading zone of UHF Reader

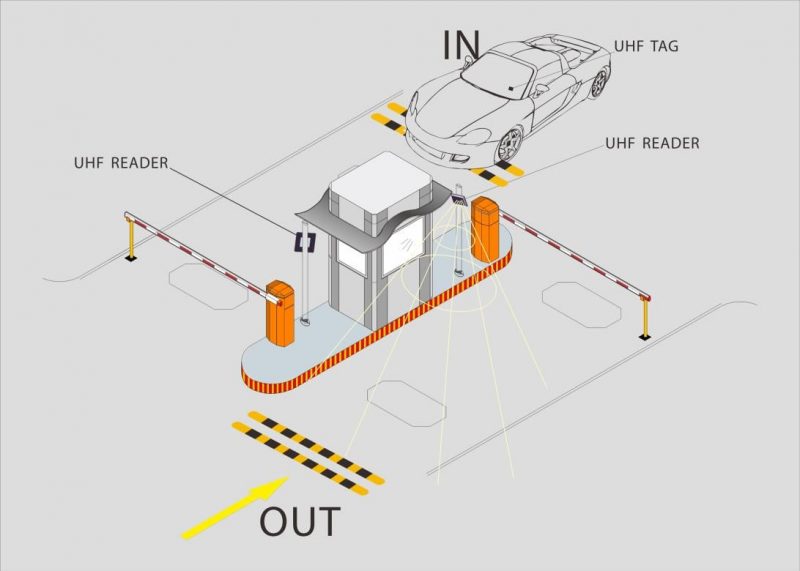

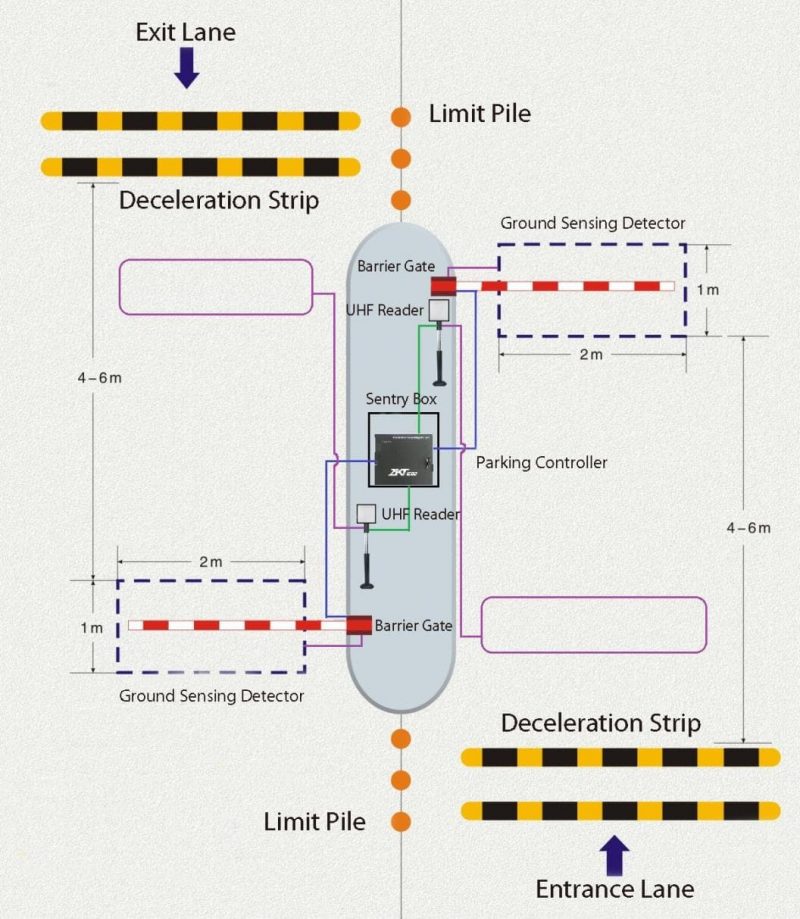

6. Floor Plan of Installing and Wiring UHF Reader in Parking Lots
Segmented applications of Long Range RFID products
1) Vehicle access control
(1) Parking lot applications;
(2) Automatic toll management without parking for the toll stations in the highway, bridge or express way;
2) Personnel access control
(1) Remote personnel attendance management;
(2) Meetings sign-in management;
(3) Campus access control;
(4) Patrol attendance management;
(5) Remote personnel access control;
3) Goods access control
(1) Management of assets, documentations, and books;
(2) Automatic management of production processes;
(3) Materials in/out control in a warehouse
(4) Port container management
(5) Logistics management;
Click to download catalogue (<1MB):
UHF5 Pro and UHF10 Pro UHF Reader.pdf
UHF5 Pro and UHF10 Pro UHF Reader User Manual
ZK UHF Reader Setting Demo
Scan to chat with iSecus in Whatsapp
Popular Long Range RFID Tags for UHF Readers

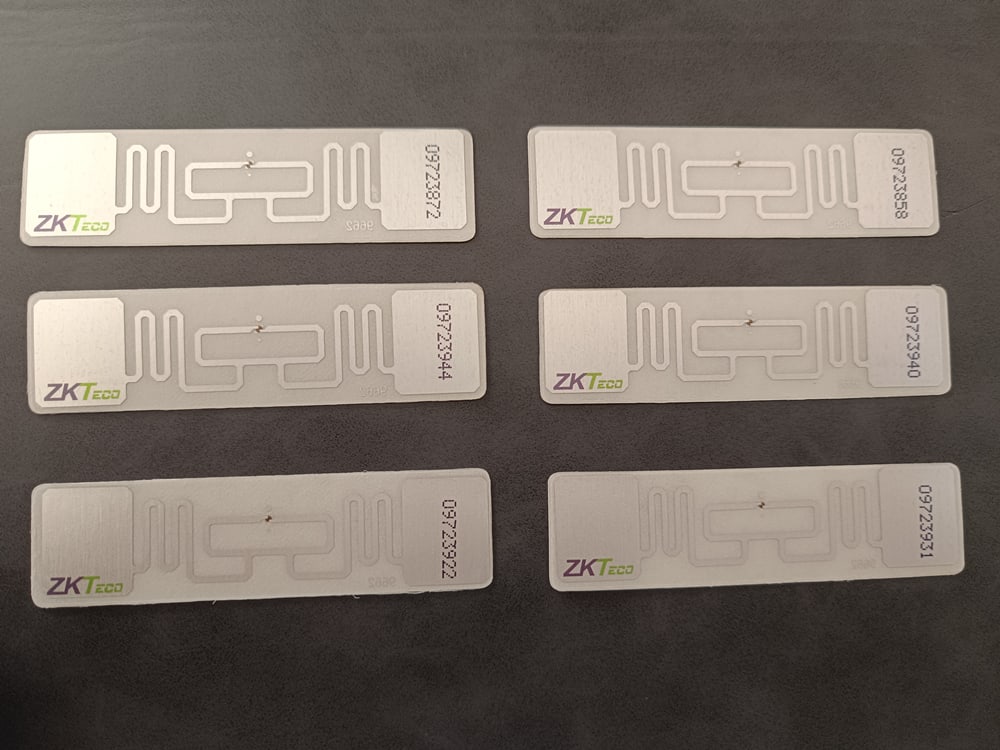

| Model | UHF1-Tag4 |
|---|---|
| Working Frequency | 860MHz~960MHz |
| Reading Distance | Up to 10 meters for UHF1-10E and UHF1-10F (Determined by the environment and reader) |
| Protocol Standard | ISO/IEC 18000-6C, EPC global Class 1 Gen 2 |
| Chip | Alien H3 |
| Working Mode | Passive (no battery) |
| Storage Structure | EPC: 96bits, UID/TID: 64bits, User: 512bits Kill Password: 32bits, Access Password: 32bits |
| Erase Endurance | 100,000 Times |
| Data Storage Period | 10 Years |
| Working Temperature | 0~60℃ |
| Storage Humidity | 20%~60% RH |
| Immunity Against Electrostatic Voltage | 2 KV (HBM) |
| Curvature | > 60mm |
| Dimension | 96.5×23.2 (mm) ±0.5(mm) |
| Installation | Stick on the windshield ( Parking Applications ) |
| Model | UHF1-Tag2 |
|---|---|
| Working Frequency | 860MHz~960MHz |
| Reading Distance | Up to 10 meters for UHF1-10E and UHF1-10F (Determined by the environment and reader) |
| Protocol Standard | ISO/IEC 18000-6C, EPC global Class 1 Gen 2 |
| Chip | Alien H3 |
| Working Mode | Passive (no battery) |
| Storage Structure | EPC: 96bits, UID/TID: 64bits, User: 512bits Kill Password: 32bits, Access Password: 32bits |
| Erase Endurance | 100,000 Times |
| Data Storage Period | 5 years ( Only for chip ) |
| Working Temperature | -30℃ ~ 55℃ |
| Storage Humidity | 40%-50% RH |
| Immunity Against Electrostatic Voltage | 2 KV (HBM) |
| Curvature | > 60mm |
| Dimension | 72mm*20mm (error±0.02mm) |
| Installation | Stick on the windshield ( Parking Applications ) |
