Model: UTi712S

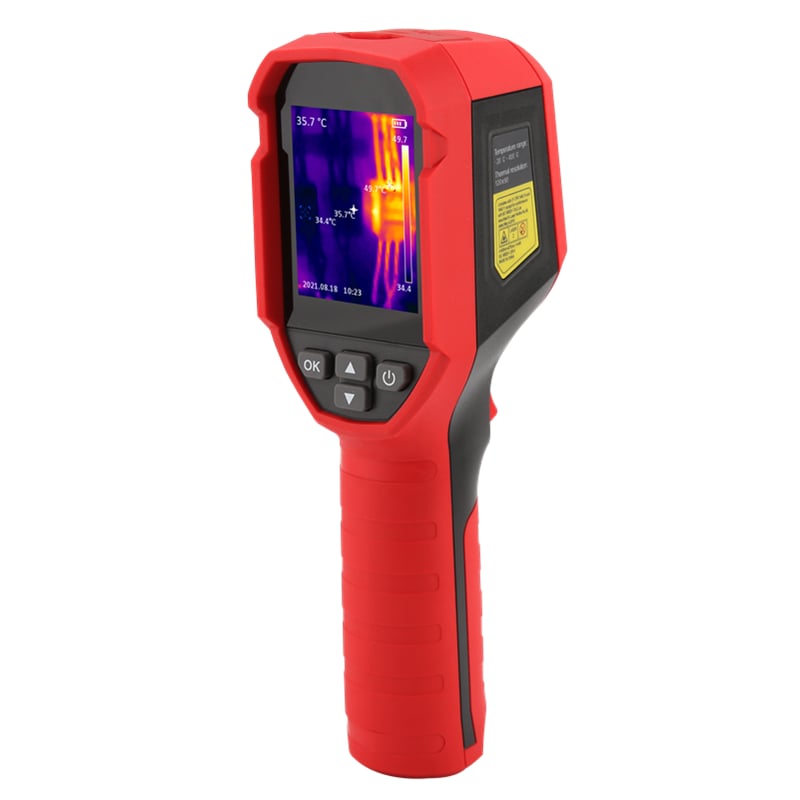

UTi712S Handheld Thermal Imaging Camera to detect water leaks

UTi712s is a professional thermal imaging camera, measuring temperature from -20℃ to 400℃. It supports 5 international display languages: English, German, French, Russian, Spanish.

General Configuration:
IR resolution 120*90
2.4″ TFT Colorful Screen
Temperature Range:-20℃ ~400℃
Thermal Camera
SD Card Storage
Embedded Battery
Flush and sound alarm
PC Software for analysis
IP65 Waterproof and 2M drop test

Ask for price
Buy Online

UTi712 is a newly released professional thermal imaging camera for industrial use. With advanced infrared uncooled lens, the temperature measurement range reaches -20℃~ 400℃ to meet wider measurement requirements. It supports 2.4 TFT big screen and thermal imaging pixels 120*90.

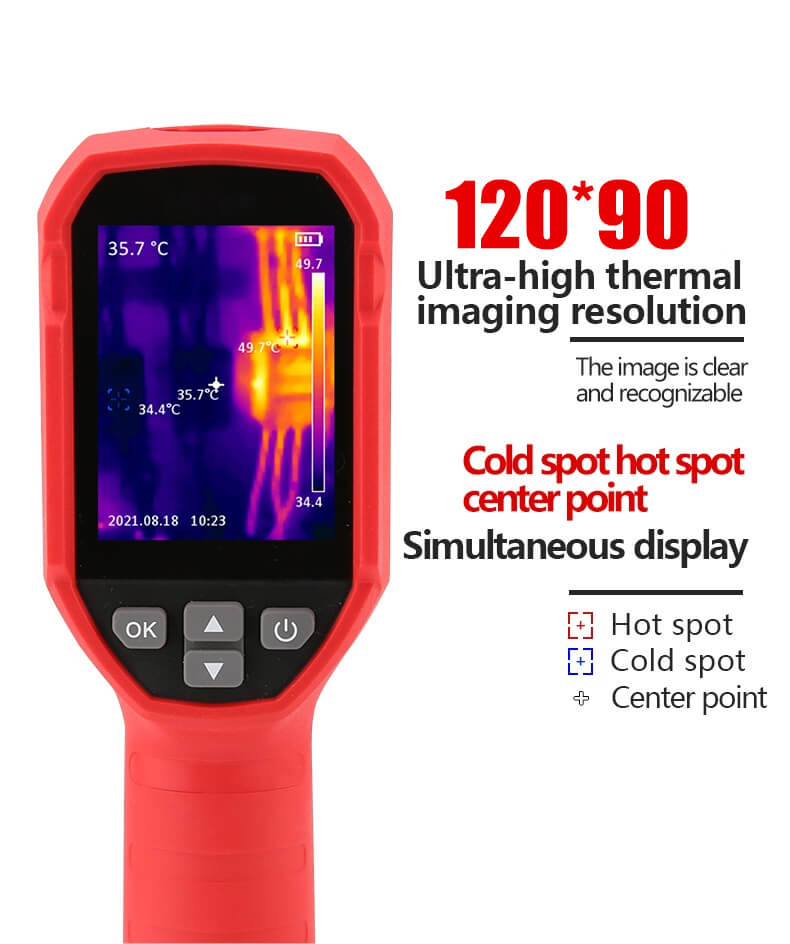

The handheld camera supports central point measuring, high and low points automatical tracking function. If abnormal points are found, there are screen symbol alert, buzzer alarm and flash alarm. It can help you to find abnormal temperature points built-in equipments easily.

The device can take alarm pictures automatically or screen shot manually and store them into SD card. Besides, PC software is available for image analysis, generating reports into PDF format.

The device reaches IP65 protection level and 2 meters drop resistance. It is stable and durable.

Specifications:

General Characteristics
SensorUncooled focal plane array
Object Temperature range-20~400℃ (-4F~752F)
Measurement accuracy±2℃ or ±2% whichever is greater
IR resolution120x90 pixels
Screen Display2.4”TFT
Field of view (FOV)50°x38°
Optimal Measuring Distance50cm
Thermal sensitivity (NETD)60mk
Spatial resolution (IFOV)7.3mrad
FocusFocus free
Frame rate25Hz
Image FormatBMP
Rechageable Li Battery3.7V/2600mAh
Less than 2.5hours -20~400℃ (-4F~752F)
Battery operating time 8hours
Founctions
Palettes6 (Iron, Lava, White Hot, Black Hot, Rainbow, Rainbow HC)
EmissivityAdjustable (0.01-0.99)
Image ModelThermal
LED
Auto tracking for Lo/Hi temperature
Buzzer Alarm
Storage16G Micro SD Card
PC softwareAnalysis
Temperature compensation
LanguageEnglish, German, French, Russian, Spanish
ProtectionIP54/2m
Communication interfaceType-C
Package
Product net size196 x 63 x 75mm
Product net weight310g
Standard accessoriesMicro SD card, Type-C USB cable, Manual

UTi712S Handheld Thermal Imaging Camera for Water Leak Detection-P6
UTi712S Handheld Thermal Imaging Camera for Water Leak Detection-P4
UTi712S Handheld Thermal Imaging Camera for Water Leak Detection-P8
UTi712S Handheld Thermal Imaging Camera for Water Leak Detection-P3

Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgement.
3. Avoiding judgement errors, reducing labor cost, and discovering poor heat dissipation and hidden trouble points.
4. PC Software for data analysis and report output

Thermal Imaging Cameras can be used widely in many applications:

UTi712S Handheld Thermal Imaging Camera for Water Leak Detection-P11
UTi712S Handheld Thermal Imaging Camera for Water Leak Detection-P12
