Model: UTi260B

Industrial Thermal Imager Camera(-15℃ ~550℃) with realtime monitoring function

UTi260B is a popular handheld thermal imaging camera for industrial use, measuring temperature from -15℃ to 550℃. It is one of the MOST POPULAR thermal camera at high performance.

General Configuration:
IR resolution 256*192
2.8″ TFT Colorful Screen
Temperature Range:-15℃ ~550℃ (5℉~1022℉)
Thermal Camera and Visible Light Camera
Auto Alarm and tracking for hot spot/cold spot
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
On screen analyzer: Point 3
SD Card Storage for picture snap
Embedded Battery
Flush and sound alarm
PC Software monitoring and analysis
IP65 Waterproof and 2M drop test

UTi260B is an infrared thermal imager that supports surface temperature measurement accurately. It can deliver real-time thermal images and clearly display them on the device screen. With infrared and visible light lenses, the temperature measurement range reaches -15℃~ 550℃/(5℉~1022℉) to meet wider measurement requirements. Its thermal imaging pixels 256 x 192 (49152) are easier to find abnormal temperature points built-in equipments.

The high-brightness illuminator adopts a new generation of sensor modules to ensure excellent infrared resolution and rich color palette modes. In that way, it will meet the requirements of multiple imaging shooting modes. The device can take pictures and store them into SD card. Besides, PC software is available for image analysis, generating reports and giving external alarm alert. Meanwhile, the PC software real-time screen could be projected to monitor.

The device reaches IP65 protection level and 2 meters drop resistance. It is stable and durable.

Specifications:

Model260B
SensorUncooled focal plane
Temperature range -15˚C~550˚C (5℉~1011℉)
Temperature Resolution0.1˚C
Accuracy±2˚C or ±2%
Temperature measurement response time≤500ms (95% of reading)
Pixel of thermal imagery49152 (256*192)
Pixel dimemsions12μm
Palettes Style Choices7
Bandwidth of infraed spectroscopy8~14μm
Field of view (FOV)56°(H) × 42°(V)
Instantaneous field of view (IFOV)3.8mrad
Thermal imaging sensitivity<60mk
Frame rate<29Hz
Temperature displayCenter temperature measurement and high temperature tracking (default)
Image formatBMP
Image modesThermal Camera, Fusion, Visible Camera, PIP
Buzzer AlarmN/A
Temperature measuring point3 extral measuring points aside from Besides central point
PC Software Realtime monitoring
Display resolution320×240
PC analysis software (PC)
Data communicationType-C USB
Auto power offSelectable (5min, 10min, 30min), 30min auto power off (default)
Service time≧6 hours
Charging time4 hours
Image storageMicro SD card
PowerA single Li-ion 3.7V/5000mAh 26650 battery
Display2.8" TFT LCD
Product colorRed & grey
Product size236mm x 75.5mm x 86mm
Standard accessoriesManual, Type-C USB cable, 16GB TF card
Standard carton gross weight2.2kg

Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgement.
3. Avoiding judgement errors, reducing labor cost, and discovering poor heat dissipation and hidden trouble points.
4. PC Software for data analysis and report output

Typical Applications Scenery of UTi260B thermal Cameras:

UTi260B can be used in a wide applications, such as PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.

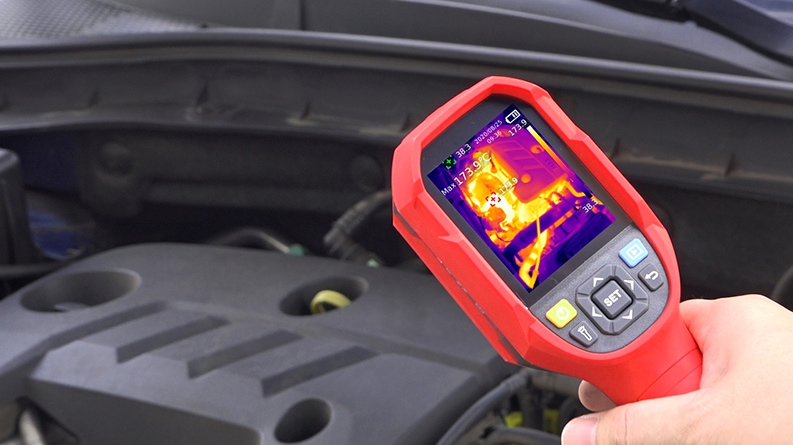

UTi260B-Thermal Imaging Camera on automotive-maintenance-1

Automative Maintenance

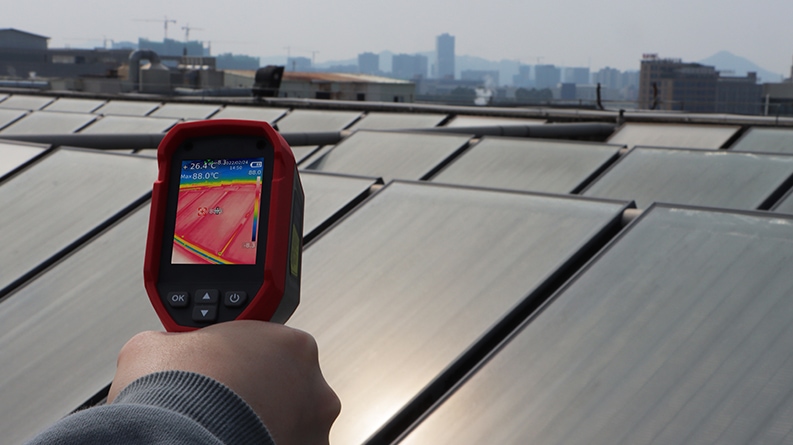

UTi-260B Thermal Imaging Camera on solar-panel-inspection-1

Solar Panel Inspection

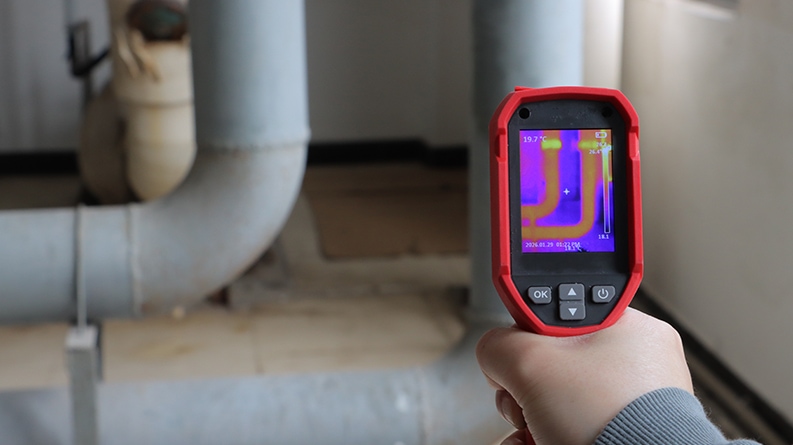

UTi260B-Thermal Imaging Camera on pipeline-inspection-2

Pipeline Inspection

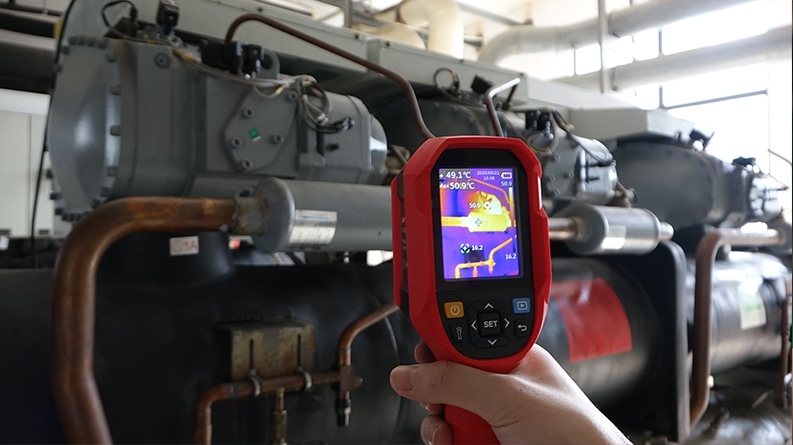

UTi260B-Thermal Imaging Camera on pipeline-inspection-1

Pipeline Inspection

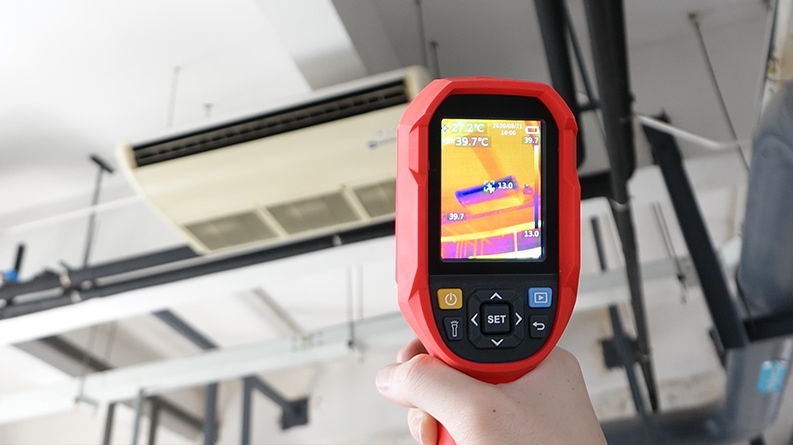

UTi260B Thermal Imaging Camera on air-conditioner-inspection-2

HVAC Inspection

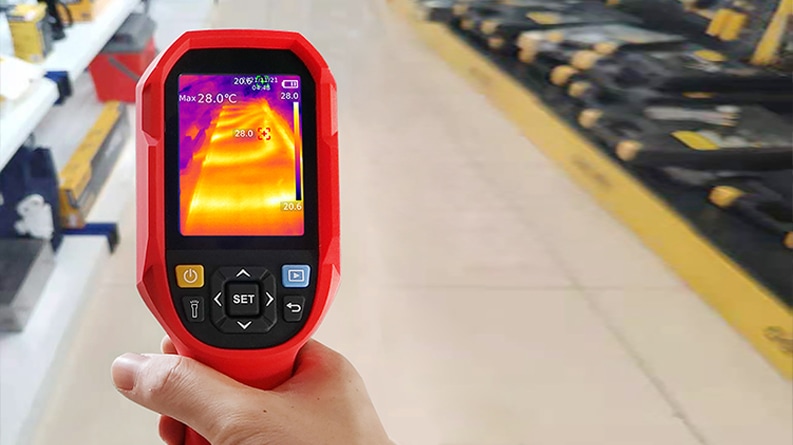

UTi260B-Thermal Imaging Camera on Floor-heating-system-inpsection-1

Floor & Ground Heating Inspection

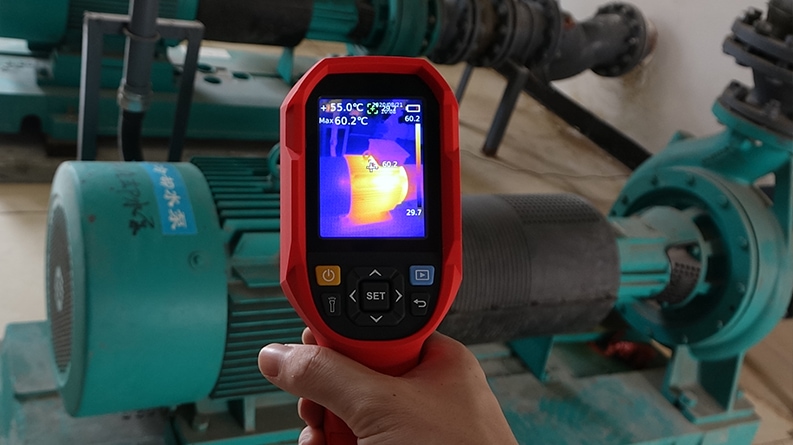

UTi260B Thermal Imaging Camera on Motor inspection

Motor Inspection

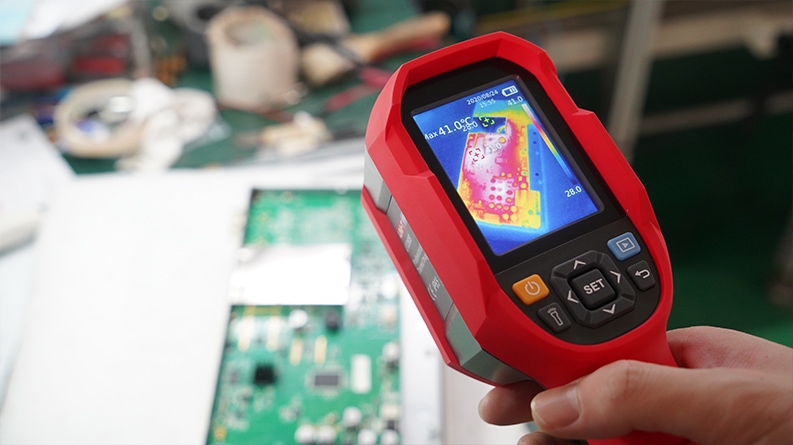

UTi260B Thermal Imaging Camera on PCB inspection-2

PCB Inspection

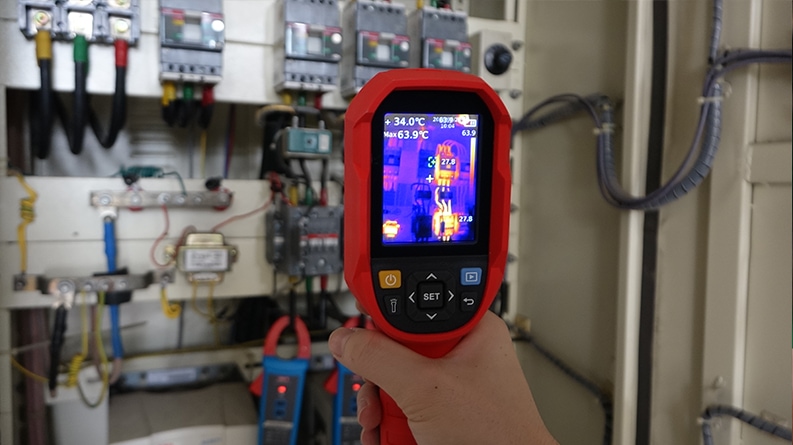

UTi260B-Thermal Imaging Camera on power-distribution-carbinet-inspection

Power Distribution Inspection
