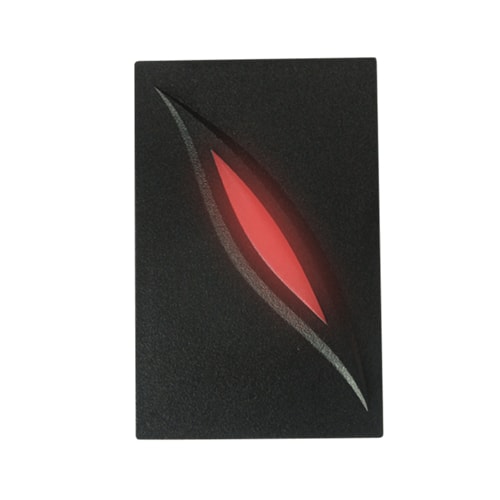

Model: KR100E/M
Waterproof RFID Wiegand Reader for Access Control System
General Configuration:
√ 125Khz for E version and 13.56Mhz for M version
√ IP65 Waterproof Case for outdoor use
√ Card Reading Distance 5-10cm (Non touch)
√ Standard Wiegand 26 and Wiegand 34 output
√ Embedded Beeper
√ Red and Green Backlight Indicator
Scan to chat with us in Whatsapp
Description:
The KR100E/KR100M Series are waterproof RFID wiegand readers for all our access control devices.
With an elegant and robust design, they are easy to connect and install, and offer the possibility to control one door from both sides. The LED lights indicate allowed or denied access. They have a proximity reading range of up to 10cm in the E series case and up to 5cm in the M series case. The fact that this series is waterproof, and the operating temperatures can range from -20º to +65º, it is the ideal solution for outdoor installation. Also they can be connectedwith ZKTeco C3 and Inbio controllers.
Specifications:
| Model | KR100E: 125kHz Proximity Card Reader KR100M: 13.56MHz Mifare Card Reader |
| Read Range | KR100E Up to 10 CM / KR100M Up to 5 CM |
| Reading time ( Card ) | 300 ms |
| Power | DC 6-14V / Max.70mA |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Output Card Format | 26bit Wiegand (E) 34bit Wiegand (M) |
| Output Pin Format | 8 bits |
| LED indicator | 2 Color LED Indicators (Red and Green) |
| Beeper | yes |
| Operating temperature | -10° to +70°C" |
| Operating Humidity | 10% to 90% (relative humidity non-considered) |
| Color | Black |
| Material | ABS+PC with texture |
| Dimension: (WxHxD) mm | 77.5x42.8x16.5 |
| Weight | 50g |
| Index of Protection | IP65 |
