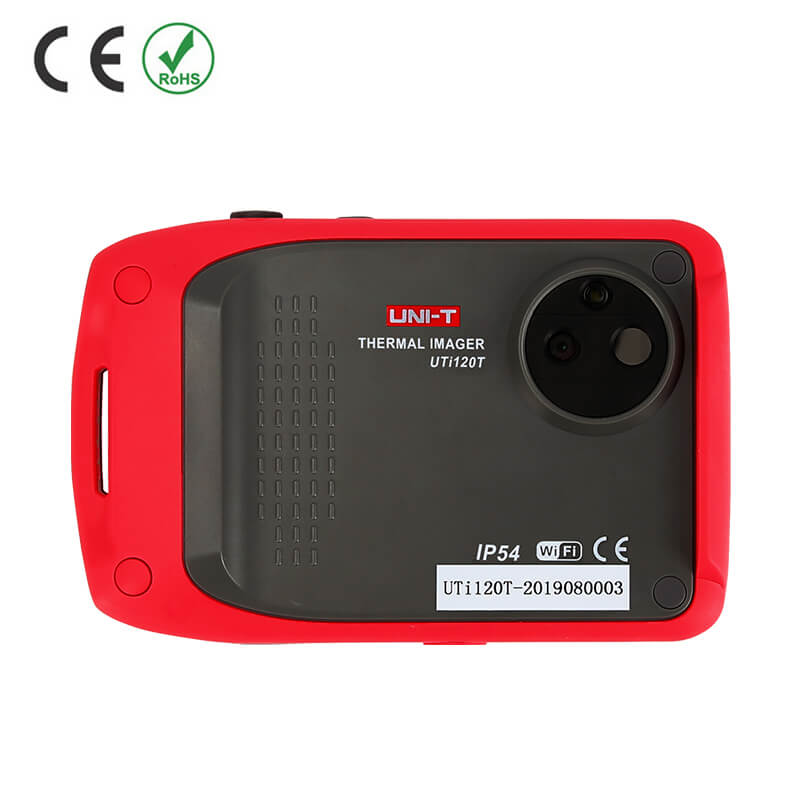

  • UTi120T Pocket Thermal Imager-Matches Fluke PTi120-P2

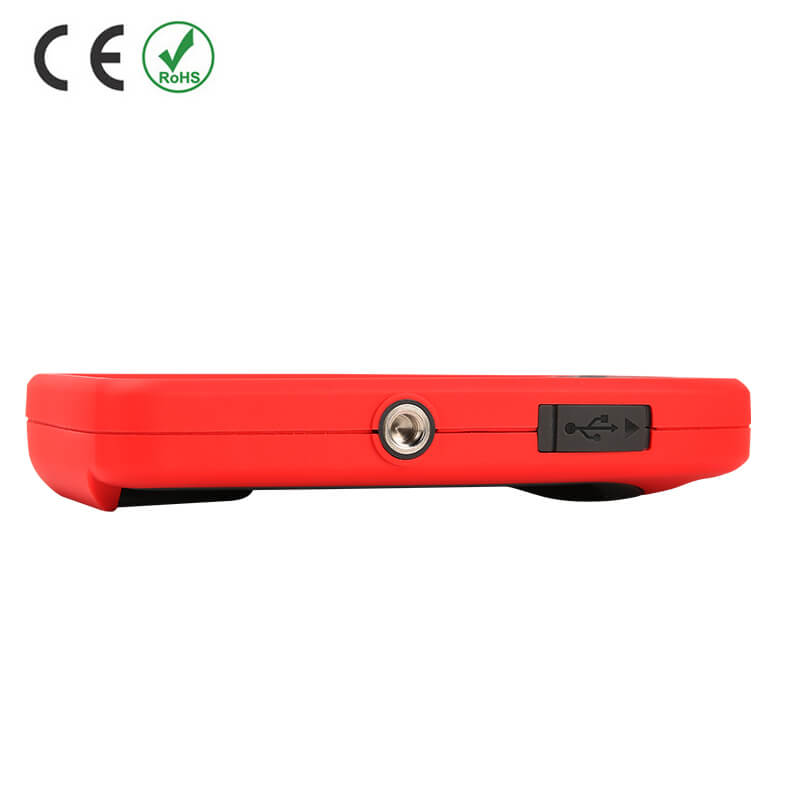

  • UTi120T Pocket Thermal Imager-Matches Fluke PTi120-P3

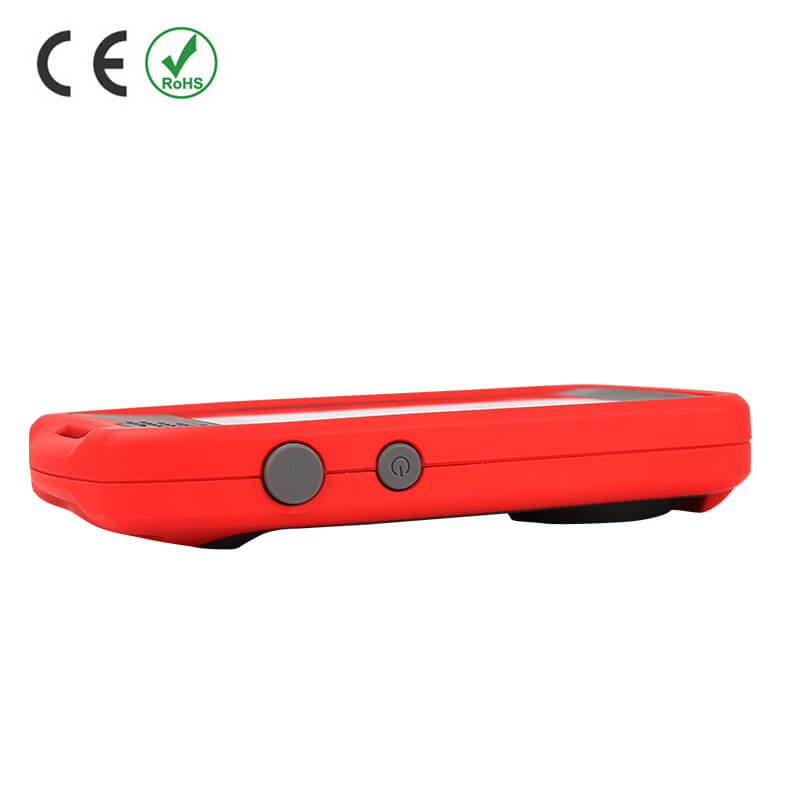

  • UTi120T Pocket Thermal Imager-Matches Fluke PTi120-P4
  • UTi120T Pocket Thermal Imager-Matches Fluke PTi120-P4

Model: UTi120T (Matches Fluke PTi120)

Pocket Thermal Imager Camera(-20℃ ~400℃) with PC and Cellphone Realtime Monitoring

UTi120T is a newly released pocket thermal imaging camera for industrial use to measure temperature from -20℃ to 400℃.

It supports the following configuration:
* IR resolution 120*90
* Temperature Range:-20℃ ~400℃
* Thermal Camera and Visible Light Camera
* SD Card Storage
* Embedded Battery
* WiFi Connection
* PC Software analysis and APP monitoring
* IP54 Waterproof and 1M drop proof

Ask for price
Buy Online

UTi120T is a pocket infrared thermal imager with compact and elegant design. It adopts 3.5″ LCD touch screen with user-friendly operation interface. Its temperature measurement range reaches -10℃~ 400℃ to meet more measurement requirements. It supports thermal image, visible light image and blending image.

The high-brightness illuminator adopts a new generation of sensor modules to ensure excellent infrared resolution and rich color palette modes, which can meet the requirements of multiple imaging shooting modes. The device can take pictures and store them into SD card automatically. PC software is available for image analysis and processing to generate reports. Besides, it supports WiFi and can connect to cellphone app wirelessly.

The device reaches IP54 protection level and 1 meters drop resistance. It is stable and durable.

Features:

* Measurement Range: -10˚C~400˚C
* Accuracy: ±2℃
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* PC Software for data analysis and report output
* WiFi connection with PC and Cellphone
* Automatic Taking alarm photo and save to SD card

Specifications:

Specifications
ModelUTi120T
IR resolution120×90 pixels
Field of view (FOV)50°×38°
Thermal sensitivity (NETD)<60mk
Temperature range -20~400℃
Spatial resolution (IFOV)7.6mrad
Frame rate25Hz/9Hz
Measurement accuracy±2℃ or ±2% whichever is greater
FocusFocus free
Digital zoom2×, 4×, 8×
Display modesThermal, image blending, visible light
Display3.5”LCD
Auto capture of Hi/Lotemperature
Measurement modesPoint, area
WIFI
PC analysis software
Drop proof1m
IP ratingIP54
General Characteristics
Power Li-ion battery (3.7V 5000mAh)
Product colorRed and grey
Product net weight212g
Product size205mm x 124 mm x 65mm
Standard accessoriesCarrying bag, micro USB cable, micro SD card
Standard individual packingBlister, gift box, English manual
Standard quantity per carton5pcs
Standard carton measurement387mm x 246mm x 166mm
Standard carton gross weight2.6kg

Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgement.
3. Avoiding judgement errors, reducing labor cost, and discovering poor heat dissipation and hidden trouble points.
4. PC Software for data analysis and report output
