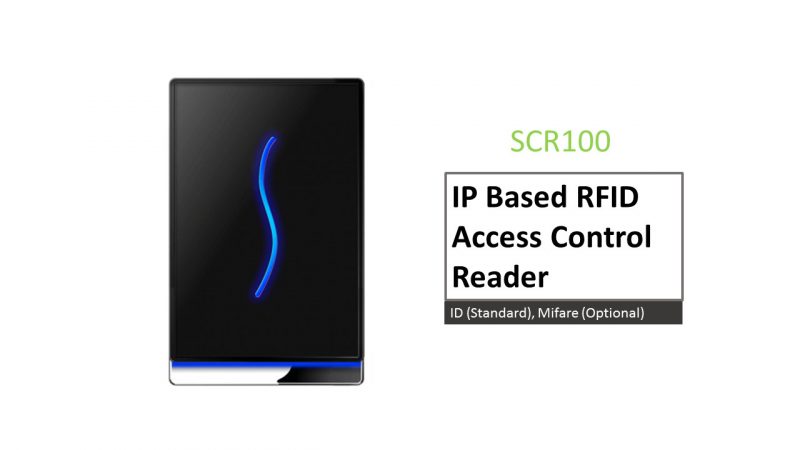

Model: SCR100

Professional IP Based RFID Access Control Reader

General Features:

◆ID card Capacity: 30,000
◆Log Capacity: 50,000
◆Communication: TCP/IP, RS232/485, USB Host
◆Access Control Interface for electric lock,door sensor,alarm,exit button.
◆Wiegand input&output

SCR100 is suitable for house, small office and factory etc.

Ask for price

Description:

SCR100 is an IP based RFID access control devices, which is made with elegant design and professional surface treatment. The device has lock control, alarm, exit button, door sensor. The Wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by Wiegand-out interface. The operation can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user data and record etc.

SCR100 is suitable for house, small office and factory etc.

Features:

◆Elegant casing design
◆Easy installation, safe and reliable
◆Simple and convenient operation method
◆ID card standard, Mifare card optional
◆Full door lock control system
◆Wiegand out to connect with control panel
◆Wiegand in to construct master and slave system
◆Audio prompt and LED feedback guide the user to operate
◆Anti-pass back function to realize high security

Specifications:

ModelSCR100
ID Card Capacity30000
Logs Capacity50000
CommunicationUSB Host, TCP/IP, RS232/485
Access Control Interfacefor 3 rd  Party E-lock, Door Sensor, Exit Button, Doorbell
WiegandStand Wiegand input and output
Standard FunctionsAnti-pass back, Web Server
Optional FunctionsMifare
Operating Temperature0 ℃  to 45 ℃   ( -5 °F to 122 °F )
Operating Humidity20% to 80%
Power SupplyDC 12V
Dimension153mm * 95.5mm * 35.5mm
Gross WeightAbout 0.85KG

Click to download catalogue (<1mb): SCR100 RFID Access Control.pdf
