Model: DT-810
Non-linear Junction Detector for High-level Government Project
General Configuration
√ Working Frequency Range: 2.404GHz-2.472GHz
√ Receiving Harmonic Range: Manual or Auto
√ Receiving Sensitivity: Less than -140dBm
√ Battery: Li Battery, working over 5 Hours
√ Interactive Interface: LCD, Audio, Vibration
√ Detection Distance: GPS module @ 400-500mm; Mobile Phone @ 180-220mm; SIM Card @ 90-120mm
Chat with iSecus on Whatsapp
Description:

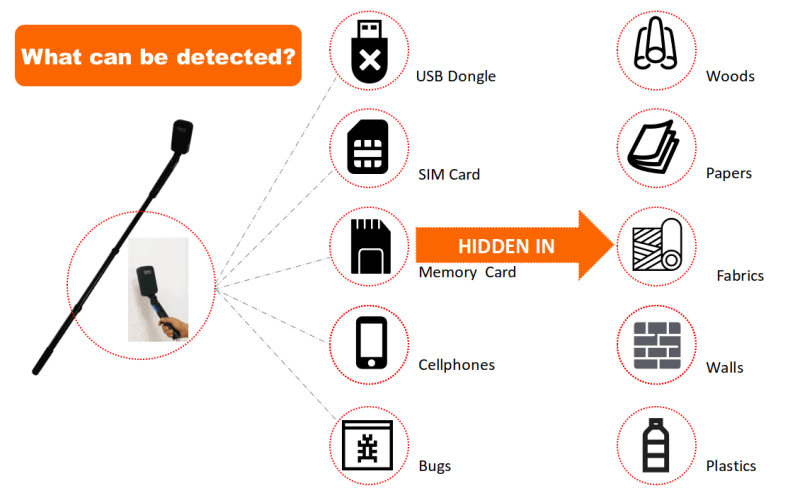

DT-810 is an Advanced non-linear junction detector developed with modern advanced technology. It can detect any electronic equipment hidden in walls, floors, ceilings, lamps, furniture or containers. Whether these electronic devices are transmitting signals or not, they are alerted by display, vibration and sound prompts, so that the detectors can focus on hidden targets.
Technical Principles:
The non-linear junction detector emits S-band fundamental wave to the target area or object, and the receiver captures the second and third harmonics generated by the target object. Artificial intelligence algorithm is used to analyze the harmonic law, so as to detect and identify the electronic equipment with non-linear junctions.
Application scenarios:
Non-linear junction detector can be widely used in government, public security, prison, justice, army, education examination, business security and personal privacy protection, etc.
Business Safety: Detecting unauthorized electronic devices, such as eavesdroppers, mobile phones and devices with SIM cards, hidden in company board rooms or secret offices;
Public Safety: Detecting electronic devices hidden or prohibited from use in safe areas, such as detonating devices, remote controllers, etc.
Personal Privacy Protection: Hidden cameras and surveillance devices such as recording pens, cameras, etc. in residential buildings and hotels.
Features:
- High positioning accuracy: The product uses 2400MHz radio frequency detection technology with high precision positioning characteristics.
- High semiconductor recognition ability: the product built-in spectrum analyzer supporting second and third harmonic detection can quickly and effectively identify devices containing semiconductors.
- High Sensitivity: Especially for SIM card devices with high sensitivity, to ensure that secrets, mobile communications equipment can be quickly detected.
- Low false alarm rate: built-in nondestructive detection algorithm greatly improves the detection capability, and the false alarm rate is very low.
- High Safety and reliability: meets the requirements of electromagnetic radiation and absolute safety to human body.
- Flexible operation: support automatic transmission power and manual mode selection, easy to operate manually
- User-friendly interface: support OLED visual graphical interface, vivid display of power emission level and second and third harmonic graphics, easy to operate.
- High performance/price rate: with the world most cost-effective, cost-saving and excellent performance.
Specifications:
| Model | DT-810 |
| Working Frequency | 2400MHz |
| Head-end Screen | 3.5" LCD, Displaying TX Power, 2nd&3rd Harmonic Signal, Electronics or Oxides info and Icon as Detection Result |
| Central Control Panel Screen | 1.8" LCD, Displaying Control Menu |
| Search Light | Yes |
| Telescopic Length | Maximum up to 1.45m |
| Working Voltage | 7.4V |
| Frequency Range | 2.404GHz-2.472GHz |
| Receiving 2nd-3rd Harmonic Range | 4.808GHz-4.944GHz; 7.212GHz-7.416GHz |
| Pulse Mode Transmit Power (Max.) | 0-4W (EIRP) |
| Receiving Sensitivity | Less than -140dBm |
| Receiving Dynamic Adjustable Range | 30dB |
| Battery Working Time | 6 H |
| Battery Type | Replaceable Lithium Battery, |
| Charging Time | Fast Charging 2.5H/block |
| Interactive Interface (LED screen audio, vibration) | LED Display Received Harmonic Signal Intensity; |
| Audio Prompts are supported and headphones can be connected; | |
| Supporting Vibration Tips | |
| Detect penetrability | It can penetrate 370mm brick wall |
| Product Dimension | (750mm x 114mm x 108mm)±5mm |
| Transition Case Dimension | (700mm x 330mm x 180mm)±10mm |
| Product Weight | ≤1.52kg±0.05kg |
| Working Temperature | (-)30 ~(+) 55 degree |
| Working Humidity | No more than 93%, no condensate |

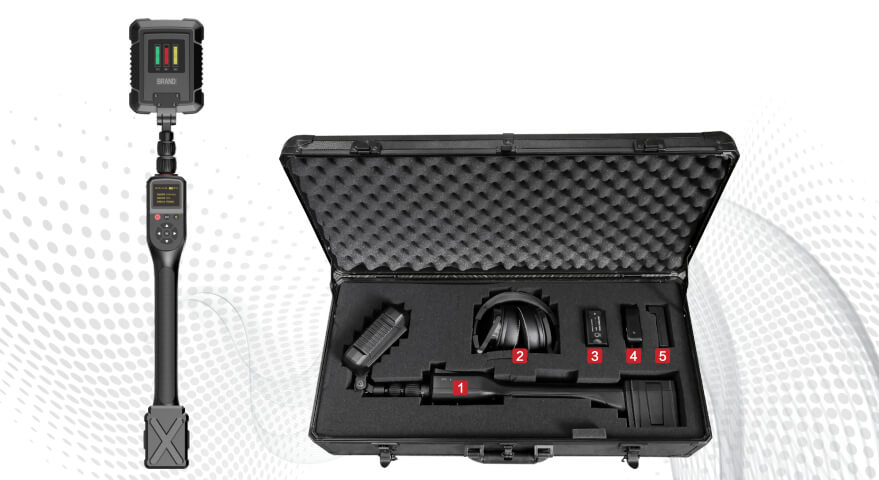

| Packing List | NLJD *1, Headphone*1, Li Battery*2, AC-DC Adapter*1, Charger*1, Electronic Sample*2, Protection Case*1 |
DT-810 Non-linear Junction Detector is at top-high configuration and performance. This NLJD is particully suitable for governmental projects.
Top Quality Non-linear Junction Detector DT-810
DT-810 Non-linear Junction Detector (TSCM Equipment)
DT-810 NLJD Demonstration
DT-810 Detecting Under-ground Cellphone Performance
Technology Introduction of Non-linear Junction Detector
Typical Applications of Non-linear Junction Detectors
- Surveillance Detection: Sweep for active and passive surveillance devices to protect the privacy.
- Prison Security: Locate unauthorized mobile phones to prevent illegal communications.
- Venue Protection: Ensure the event venues are free from hidden electronics before high-profile gatherings.
- Threat Assessment: Detect suspicious packages or potential IEDs with high-risk search capabilities.
- Railway Safety: Safeguard public transportation from potential attacks.
- Arms Cache Detection: Find buried ammunition and arms caches with precision.
- Military and Civil Operations: Conduct thorough searches for hidden electronics in various operational contexts.
DT-810 Comparison with Similar NLJD model in the market
| Model | DT-810 | Orion 2.4HX | ST-402 |
|---|---|---|---|
| Brand | iSecus | REI | Cayman |
| Country of Origin | China | United States | Russia |
| Frequency | 2.404GHz – 2.472GHz | 2.404GHz – 2.472GHz | 2G-3G |
| Receiving Sensitivity | ≤-140dBm | ≤-140dBm | 40dBm |
| Power Ouput | 4W (Max.) | 3.3W/6.6W | 2W |
| Operating Time(Pulse) | ≥4 Hours | ≥4 Hours | 3-4 Hours |
| Alarm Alert | Screen Alert, Sound, Vibration | Screen Alert, Sound, Vibration | Screen Alert, Sound |
| Rod Length | 145cm Extendable | 130cm Extendable | 86cm Extendable |
| Lighting Function | YES | YES | NO |
| Equipment Weight | 1.5KGS | 1.4KGS | 1.7KGS |
| Working Environment | -30℃-55℃ | -10℃-55℃ | 5℃-40℃ |
How is the penetration capability of DT-810 NLJD?
Global NLJD Manufacturing: Key Players and Market Insights
Non-linear junction detectors (NLJDs) are advanced devices designed to identify concealed electronic circuits, playing a critical role in security operations. Their reliance on cutting-edge technology limits production to a select few nations with specialized expertise. Currently, Russia, USA, China, and the UK. lead global NLJD manufacturing, leveraging their technological infrastructure to meet demand from defense, law enforcement, and security sectors.
As electronic surveillance threats escalate, these countries remain pivotal suppliers, driving innovation and maintaining dominance in this niche yet vital market. Their strategic capabilities ensure ongoing advancements in NLJD technology, addressing evolving security challenges worldwide.
A detailed comparison chart is provided for better selection of suitable NLJD device for your projects.
Chat with iSecus on Whatsapp
Explore More NLJD equipment from iSecus
Highlight Key Differences Between Models
Focus on the factors that differentiate models, such as sensitivity, power output, and ease of use:
- Sensitivity: “Some models are more sensitive and can detect smaller or more deeply hidden devices, while others are better for general sweeps in less challenging environments.”
- Power Output: “Higher power output allows the device to penetrate walls or obstacles more effectively, but it may also require more skill to operate.”
- Ease of Use: “Some models are designed for beginners, with simpler controls and automated features, while others are more advanced and require experience to use effectively.”
Some Useful Guide on Selecting iSecus NLJD Devices
- Advanced model to Beginner model (Price from Higher to Lower): DT-840, DT-810, DT-820Plus, DT-820
- For Complicated Environment: Please choose DT-810 and DT-840 as the detection sensitivity reaches -140db.
- For Occasional Users or Simple Environments: Please choose DT-820 and DT-820Plus
- For Challenging Environments such as Military/Defence/Prison Applications: Please choose DT-810. If budget is enough, can consider DT-830, DT-840
- If need equivalent model to REI Orion 2.4, please choose DT-810
- If need equivalent model to Lornet24/36, Cayman, JNN, DT-820 and DT-820Plus are suggested
