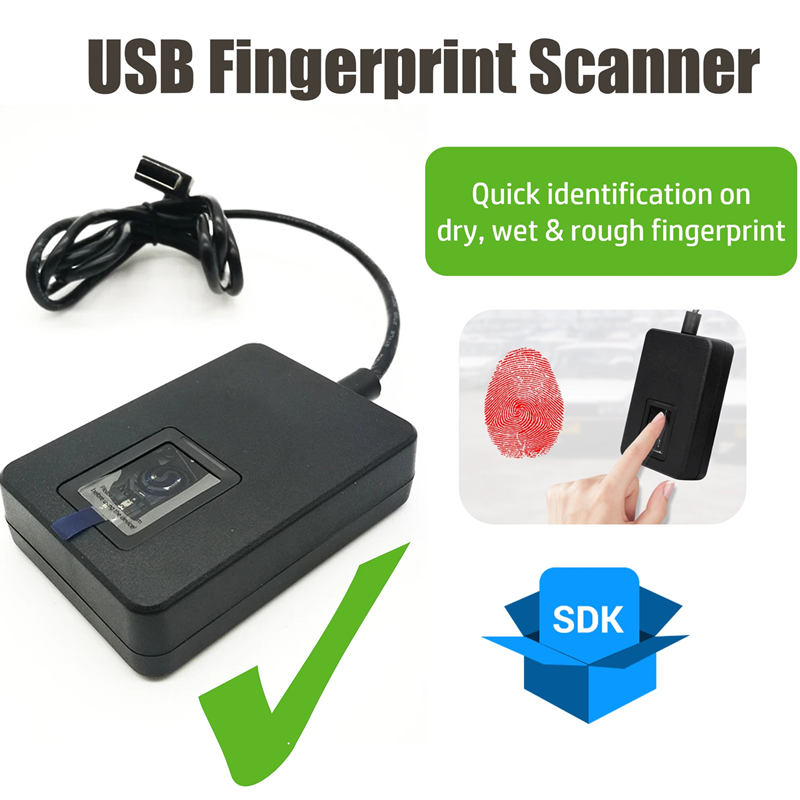

ZK9500
Fingerprint Scanner/Fingerprint Sensor/Fingerprint Reader
General Specifications:
◆Image Quality: 2 megapixels CMOS
◆Live Fingerprint Detection: Yes
◆Image Format: BMP
◆Dry, Wet, or Rough Fingerprint: Works well
◆Communication: USB 2.0 / USB1.1
◆Image Size: 300 * 400 pixel (FAP20 )
Chat with iSecus on Whatsapp
Description:
ZK9500, an latest optical fingerprint scanner,is developed by ZK. It supports finger detection and captures fingerprint image fast,with high resolution. The product is small, easy to use fingerprint registration on the desktop. Low power consumption, it also applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications.
Features:
◆High Speed USB 2.0
◆Quick recognition of dry, wet and rough fingerprints
◆Available SDK for development
Specifications:
| Model Name | ZK9500 (Live10R) |
| Material | Optical |
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS[image out only] |
| Image Quality | 2 mega pixels CMOS |
| Encrypted Fingerprint Data | YES |
| Sunlight Operation | Yes, Dark field and Automatic Gain / Exposure |
| Water Splash | YES |
| Dry, Wet, or Rough Fingerprints | Work well |
| Power Consumption | 5V:200mA Scanning;5V:60mA idle (waiting for finger) |
| Live Fingerprint Detection | NO |
| LED | Green |
| Product Certifications | FCC, CE, RoHS |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500~1000 dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 mm |
| Image Size | 300 * 400 pixel (FAP20) |
| Dimension | 75.5 * 53.2 * 19 mm (L*W*H) |
| Image Format | BMP |
| Template | ZKFinger V10.0 |
| Compatible OS: | Windows XP/Vista/7/8/10, Android |
| Gray Level | 256 |
| Weight | 0.12kg |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
How to register Fingerprint and Card in Inbio from ZKAccess3.5
USB Finger Scanner Connection Diagram with Windows PC
Free SDK is offerd for further development
SDK Functionality:
- Initial/Open/Close device
- Set/Get parameter: SN. ,DPI, image size
- Get Image
- Generate ZKTeco Fingerprint V10.0 Templates
- Add/Delete template in hosting memory
- Finger template identification in hosting memory
- Finger template verification in hosting memory
- Finger template merging
- BMP/JPG image extract to template
- Data format transfer[Base64]
- Storage image in hosting, need to design
- Storage templates in hosting, need to design
Operation System: Windows XP/Vista/7/8/10/11(32/64bit)
SDK Demo Language: ActiveX/C/C#/Java
