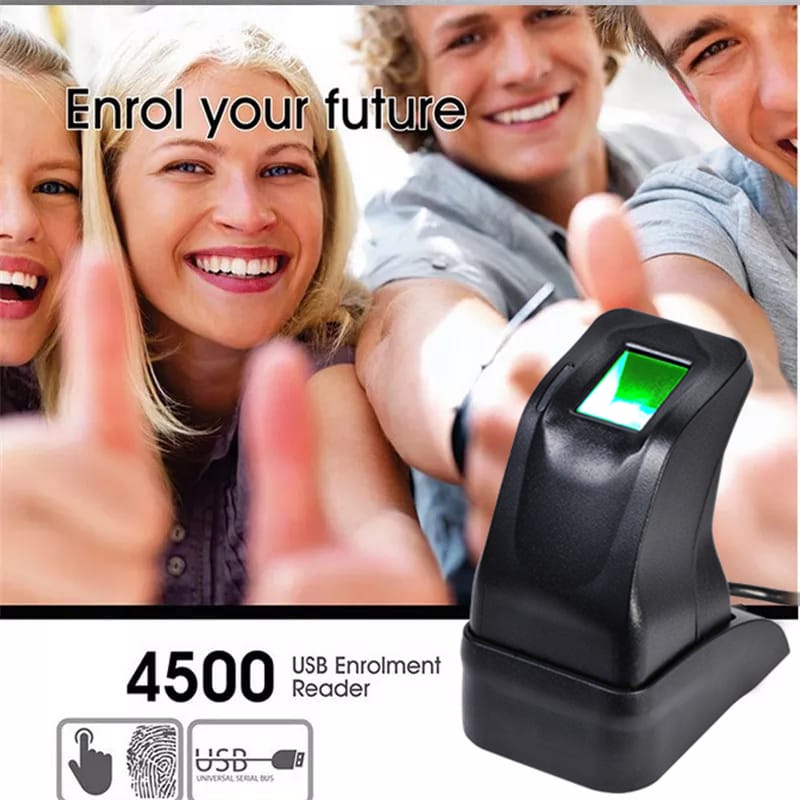

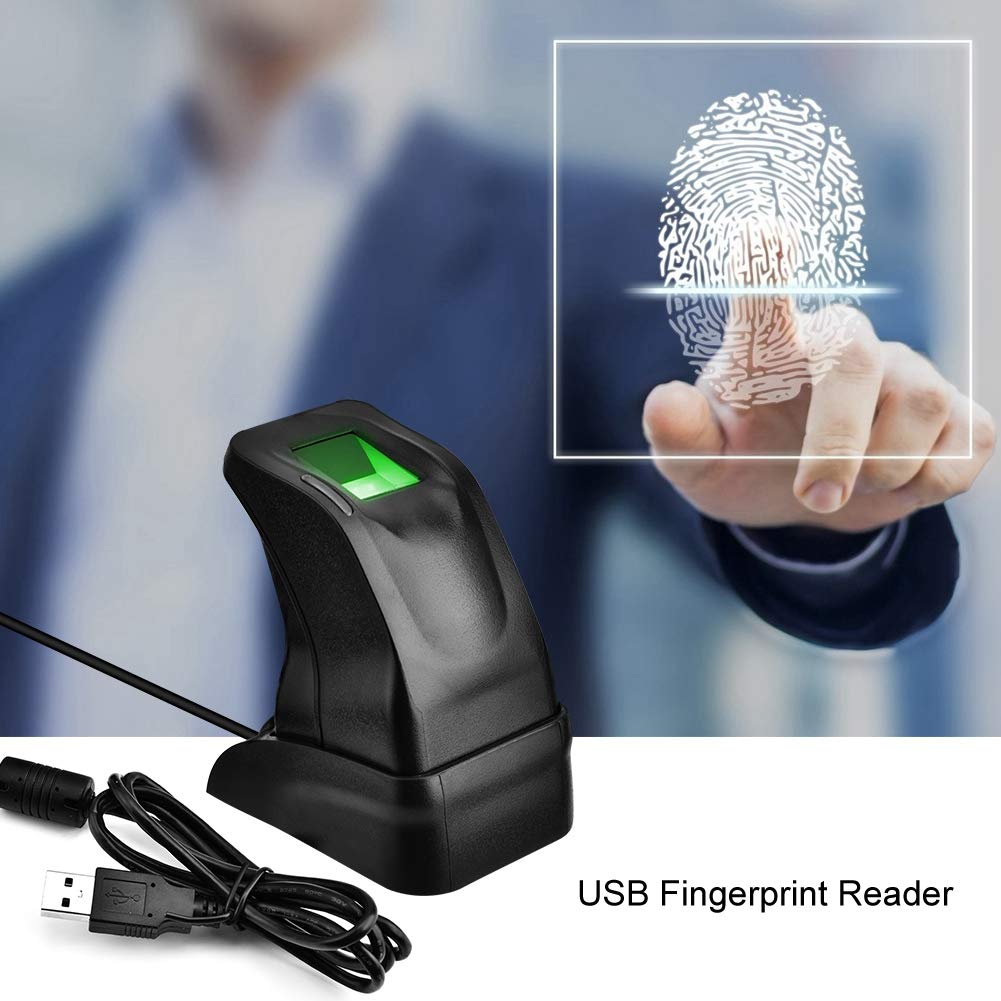

Fingerprint Scanner/Fingerprint Reader ZK4500

Description:

ZK4500 is a stable and excellent fingerprint scanner. The device can capture fingerprint image and upload to the PC by USB interface. It supports Windows 2000/XP/2003/Vista/7(32/64bit). We provide developer with SDK. The developer can integrate the hardware into their own system. This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.

Features:

• High-performance, maintenance-free optical fngerprint sensor.
• Readily accessible for any fnger
• High quality industrial-class ABS plastic material with scratchproof texture surface treatment
• Removable weighted stand
• High speed USB interface
• LED indicates the status of the device
• Driver CD included
• Available SDK for secondary development

Specifications:

Model Name	ZK4500
Material	Optical
CPU	120MHz DSP
Flash	16KB
SoC	RTOS[image out only]
Image Quality	0.3 megapixels CMOS
Encrypted Fingerprint Data	NO
Sunlight Operation	White filed, General Sunlight
Water Splash	YES
Dry, Wet, or Rough Fingerprints	General Level
Power Consumption	5V:200mA Scanning; 5V:90mA idle (waiting for finger)
Live Fingerprint Detection	NO
LED	Green
Product Certifications	FCC, CE
Power Voltage	5V (USB)
Power Current	200mA
Communication	USB 2.0 / USB1.1 / USB1.0
Interface Socket	USB Type A
Image Resolution	500dpi
Effective Collecting Area	13.24 * 15.7 mm
Collecting Area	15.4*18 mm
Image Size	280 * 360 pixel
Dimension	65.5 * 48 * 79.8mm (L*W*H)
Image Format	BMP
Template	ZKFinger V10.0
Template Size	<2KB, (ZKFinger V10.0);1568 B (ISO 19794-2)
Gray Level	256
Weight	0.25kg
Operating Environment	-20 °C ~ +50 °C; 90% r.h.
