Model: DT-510
Best 5G Jammer, SDR Jamming Wireless Signals
General Configuration
√ Jamming Technology: Adanced SDR (Software Defined Radio)
√ Can Jam 2G/3G/4G/5G mobile networks, Bluetooth, WIFI
√ Number of RF Jamming Channel: 15
√ Antenna: Built-in directional antenna
√ Total RF Power: <20W
√ Portable Compact Design: 2.6 KG
Chat with iSecus on Whatsapp
Description:

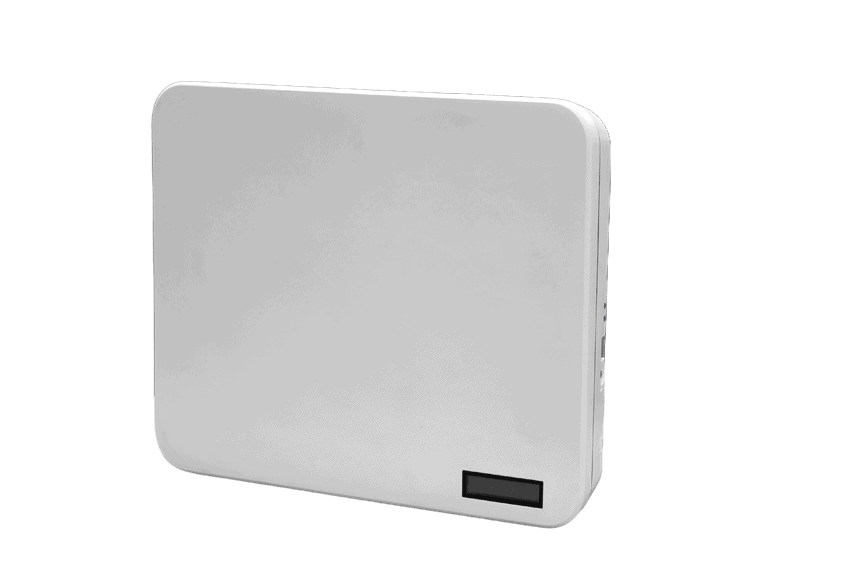

DT-510 is a top-level portable 5G Wireless Signal Jammer in the worldwide. It is a revolutionary device that ensures a secure communication environment. By effectively jamming 2G/3G/4G/5G mobile networks, as well as Bluetooth and WIFI signals, it offers an additional layer of security to your communication framework. Based on good SDR architecture design, DT-510 5G wireless signal blocker only jams with the terminal equipment. It does’t interfere with the operator’s base stations, nor affect the public communication business of telecom operators. This makes it an appealing option for those seeking a secure communication environment. Further, the 5G jammer can be easily upgraded and expanded according to the development of communication technology, without any change on the hardware.
In the era of fast-paced technological advancements, having a signal jammer that can adapt to the changes is essential. The DT-510 5G Wireless Signal Jammer, with its unique SDR design and non-interfering jamming mechanism, offers just that.
Description:
DT-510 is a top-level portable 5G Wireless Signal Jammer in the worldwide. It is a revolutionary device that ensures a secure communication environment. By effectively jamming 2G/3G/4G/5G mobile networks, as well as Bluetooth and WIFI signals, it offers an additional layer of security to your communication framework. Based on good SDR architecture design, DT-510 5G wireless signal blocker only jams with the terminal equipment. It does’t interfere with the operator’s base stations, nor affect the public communication business of telecom operators. This makes it an appealing option for those seeking a secure communication environment. Further, the 5G jammer can be easily upgraded and expanded according to the development of communication technology, without any change on the hardware.
In the era of fast-paced technological advancements, having a signal jammer that can adapt to the changes is essential. The DT-510 5G Wireless Signal Jammer, with its unique SDR design and non-interfering jamming mechanism, offers just that.
3-into-1 Wireless Signal Jammer
◆ 2G/3G/4G/5G Cellphone Signal Jammer: If you want to block cellphone signal for call and sms, DT-510 is suitable. It only block download network, no effect on the operator communicationbase stations.
◆ Bluetooth Jammer: Want a jammer to disable the communication from unwanted listenning devices? DT-510 is a professional bluetooth signal jammer with built-in antenna.
◆ WiFi Jammer: DT-510 is a portable signal jammer with direct antenna to scrambler WiFi at long distance.
This is a powerful 3-into-1 device used to scrambler unwanted wireless signal, including Bluetooth, WiFi, Phone Signals.
Specifications:
| Model | DT-510 | |
| Description | 5G Wireless Signal Jammer (Based on SDK Technology) | |
| Interference Frequency Range | Channel 1: 934-960MHz | Channel 2: 2300-2370MHz |
| Channel 3: 3400-3500MHz | Channel 4: 3500-3600MHz | |
| Channel 5: 869-880MHz | Channel 6: 2010-2170MHz | |
| Channel 7: 2515-2615MHz | Channel 8: 758-798MHz | |
| Channel 9: 2615-2675MHz | Channel 10: 1805-1915MHz | |
| Channel 11: 2400-2485MHz | Channel 12: 3300-3400MHz | |
| Channel 13: 4800-5000MHz | Channel 14: 5150-5350MHz | |
| Channel 15: 5725-5850MHz | ||
| Interference Mode | SDR (Software Defined Radio) | |
| Jamming Control | One-key On/Off, Web Control (Remote) | |
| Jamming Distance | High power: facing distance 10-12m, 120° sideline distance 6-8m | |
| Medium power: facing distance 8-10m, 120° sideline distance 4-6m | ||
| Low power: facing distance 6-8m, 120° sideline distance 3-5m | ||
| Jamming Range | 60~80㎡(in an unobstructed environment, RSRP less than -85~-95dBm) | |
| Whole RF Power | <20W (single RF channel mode power <2W) | |
| Number of RF Channels | 15(Separate Control/Settings on each channel from Web) | |
| Antenna Type | Built-in directional antenna (antenna directionally >120° ) | |
| Number of Antenna | Built-in integrated | |
| Ports | Power Input, TCP/IP | |
| Power Input | 19V/12A DC Adapter | |
| Indicators | Working LED, Alarm LED | |
| Working Temperature | -20℃ ~45℃ | |
| Storage Temperature | -30℃ ~70℃ | |
| Weight | 2.6kg | |
| Size | 348mm*287mm*62mm |

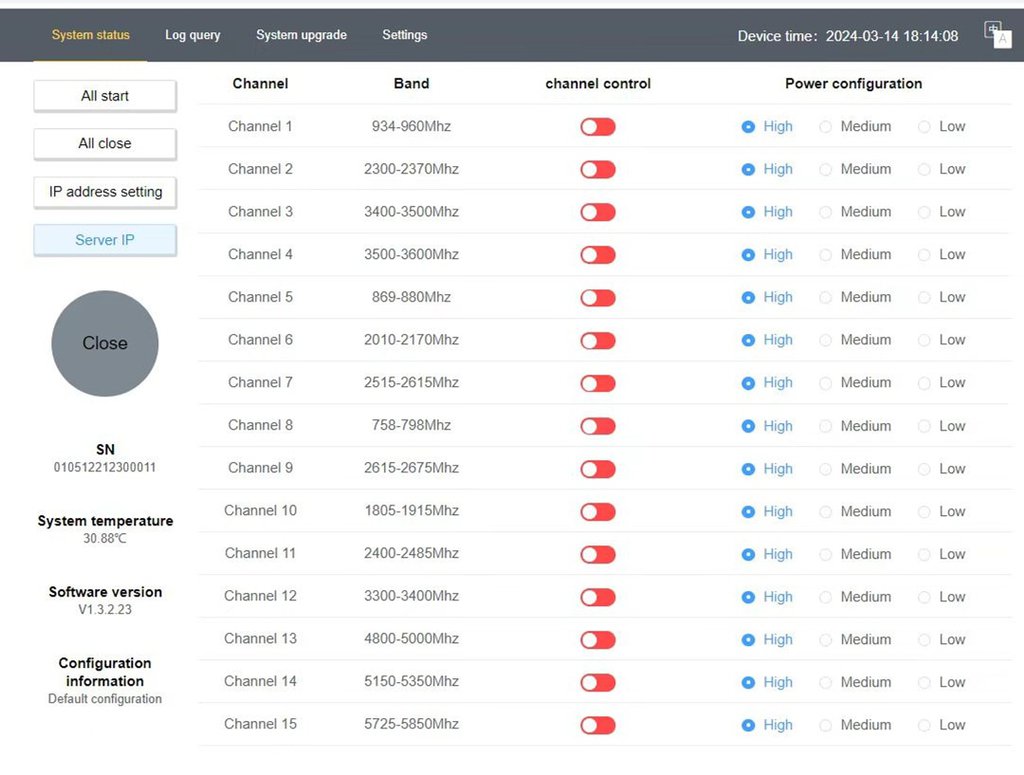

One click to turn on/off or customize the frequency
Wide Application Scenerios of DT-510
DT-510 5G Wireless Signal Jammer can be widely used in areas such as government, public security, justice, prisons, military, education examinations, enterprises. It is extremely easy to use and operate. By working with Audio Jammers AJ-315W, AJ-316D, you can realize a perfect conference audio jamming solution.
✪ Strict Control: Top-high secuirty areas such as military locations, prisons, detention centers, and important exams to prevent cheating.
✪ Commercial Security: research and development of core technologies, intellectual property protection, confidential and sensitive departments, etc.
✪ Confidential Meetings: major confidential meetings of party and government agencies, enterprises, closed bid evaluation, etc.
✪ Production Safety & Efficiency Improvement: Phone calls are prohibited at gas stations & oil depots to prevent explosions. It also guarantees the production safety and efficiency in production lines.

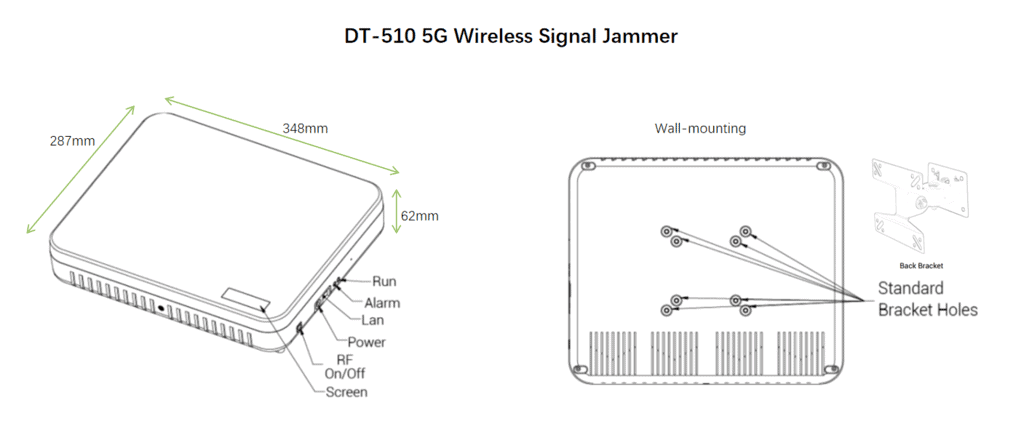

Flexible Installation of DT-510 5G Wireless Signal Jammer
Wall-Mounting
Tripod-Mounting
FAQ Related to DT-510 5G Jammer
Q1: What is the jamming coverage of DT-510?
Answer: If it is in an enclosed space, the wireless signal jamming coverage can reach around 100 square meters under High Power Ouput. Because the jamming signal can reflect on brick/glass walls.
Q2: Does DT-510 Passively jamming the cellphone networks, say generates continuous noise on the marked frequencies? Or actively, say it digitally blocks the signal of the phone when it detects it on a specific frequency?
Answer: Active Jamming. Below is the jamming principle of our DT-510:
Q3: Are the 15 channels radio frequency built-in by factory default, or it is necessory to select the needed channels before purchase?
Q4: Does DT-510 support the 4G/5G cellphone network in my countries?
Q5: Does it require any technology knowledge to use DT-510 5G Jammer?
Q6: What is the power output of this SDR 5G Jammer?
Q7: Is it legal or illegal to use G5 Jammer?
Chat with iSecus on Whatsapp
The practicality of DT-510 5G jammer in Europe
| Channel | Jamming Bands (MHz) | International Standard (3GPP Band) | Common Usage in Europe (√ = Common) | Remark |
|---|---|---|---|---|
| 1 | 934-960 MHz | Band 8 (B8) / n8 | √√√ (Very common, used for 2G/3G/4G/5G) | This is one of Europe's most important low-frequency bands. |
| 2 | 2300-2370 MHz | Band 40 (B40) / n40 | X (Less common in Europe, used in Asia, North America) | Primarily deployed in Asia (e.g., China, India). |
| 3 | 3400-3500 MHz | Band 42 (B42) / n77 / n78 | √√√ (Very common, 5G C-Band core) | Core 5G frequency band in Europe. |
| 4 | 3500-3600 MHz | Band 42 (B42) / n77 / n78 | √√√ (Very common, 5G C-Band core) | Core 5G frequency band in Europe, used in conjunction with Channel 3. |
| 5 | 869-880 MHz | Band 5 (B5) / n5 | X (Less common in Europe, common in Americas, Australasia) | B5 is rarely used in Europe; some countries might have limited deployments. |
| 6 | 2010-2170 MHz | Band 1 (B1) / n1 (2110-2170MHz) | √√√ (Very common, used for 3G/4G/5G) | This is a very common 3G/4G/5G band in Europe. Note: There might be unused gaps between 2010-2110MHz. |
| 7 | 2515-2615 MHz | Band 41 (B41) / n41 / Band 7 (B7) / n7 | √√ (Common, used for 4G/5G) | 2600MHz in Europe is primarily FDD (B7), but may also include TDD (e.g., B41). |
| 8 | 758-798 MHz | Band 28 (B28) / n28, Band 20 (B20) | √√√ (Very common, 700/800MHz Digital Dividend band) | Important low-frequency band in Europe for 4G/5G wide coverage. Note: B20 downlink is 791-821MHz, and B28 downlink is 758-803MHz, so this channel largely covers them. |
| 9 | 2615-2675 MHz | Band 41 (B41) / n41 / Band 7 (B7) / n7 | √√ (Common, used for 4G/5G) | Covers the 2600MHz band along with Channel 7. |
| 10 | 1805-1915 MHz | Band 3 (B3) / n3 | √√√ (Very common, used for 2G/3G/4G/5G) | One of Europe's most widely used LTE bands. |
| 11 | 2400-2485 MHz | ISM Band | √√√ (Globally common, Wi-Fi 2.4GHz, Bluetooth, Zigbee) | Common in Europe as well. |
| 12 | 3300-3400 MHz | Band 42 (B42) / n77 / n78 | √√√ (Very common, 5G C-Band core) | Core 5G frequency band in Europe, used in conjunction with Channel 3 and 4. |
| 13 | 4800-5000 MHz | n79 | X (Very rare in Europe, mainly in China, Japan) | This band is almost never used for n79 in Europe. |
| 14 | 5150-5350 MHz | U-NII-1/2A (Wi-Fi 5GHz) | √√√ (Globally common, Wi-Fi 5GHz) | Common in Europe as well. |
| 15 | 5725-5850 MHz | U-NII-3 (Wi-Fi 5GHz) | √√√ (Globally common, Wi-Fi 5GHz) | Common in Europe as well. |
Seeing from above charts, the DT-510 5G jammer is highly suitable for the European market to block unwanted wireless signal in certain applications. It effectively covers most mainstream European 2G/3G/4G/5G mobile communication bands (e.g., 700MHz, 800MHz, 900MHz, 1800MHz, 2100MHz, 2600MHz) and crucial 5G C-Band (3.3-3.6GHz). It also jams global 2.4GHz and major 5GHz Wi-Fi frequencies. While some channels may be redundant for Europe, its granular frequency control via 15 channels offers excellent flexibility and precision for targeted signal suppression, making it a robust solution for diverse European scenarios.

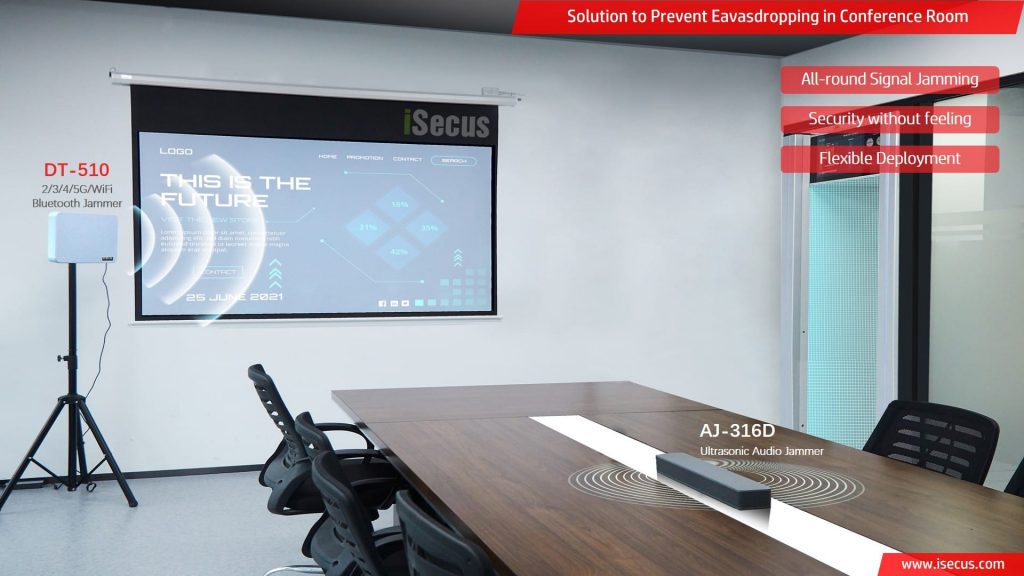

Solution to Prevent Eavasdropping in Conference Room
Audio Recording Jamming Solution
