Description:
The AJ-301C is a centralized control terminal engineered for comprehensive management of audio jamming systems in secure conference environments. It provides a single point of control for up to 32pcs audio jammer units, streamlining operations and enhancing security protocols.
Key capabilities include one-click remote power control for all connected units and real-time monitoring of their operational status. With flexible connectivity options including stable wired aux and convenient wireless Bluetooth, the AJ-301C can be seamlessly integrated into any meeting room setup.
Features:
◆ Centralized Control: Manage up to 32 individual audio jammers from a single, user-friendly interface.
◆ Flexible Connectivity: Supports both wired aux for maximum reliability and wireless Bluetooth for versatile, easy installation.
◆ One-Click Operation: Instantly power all connected jammers on or off with a single command for immediate protection.
◆ Real-Time Status Monitoring: Continuously monitor the operational status of every jammer unit to ensure complete security coverage at all times.

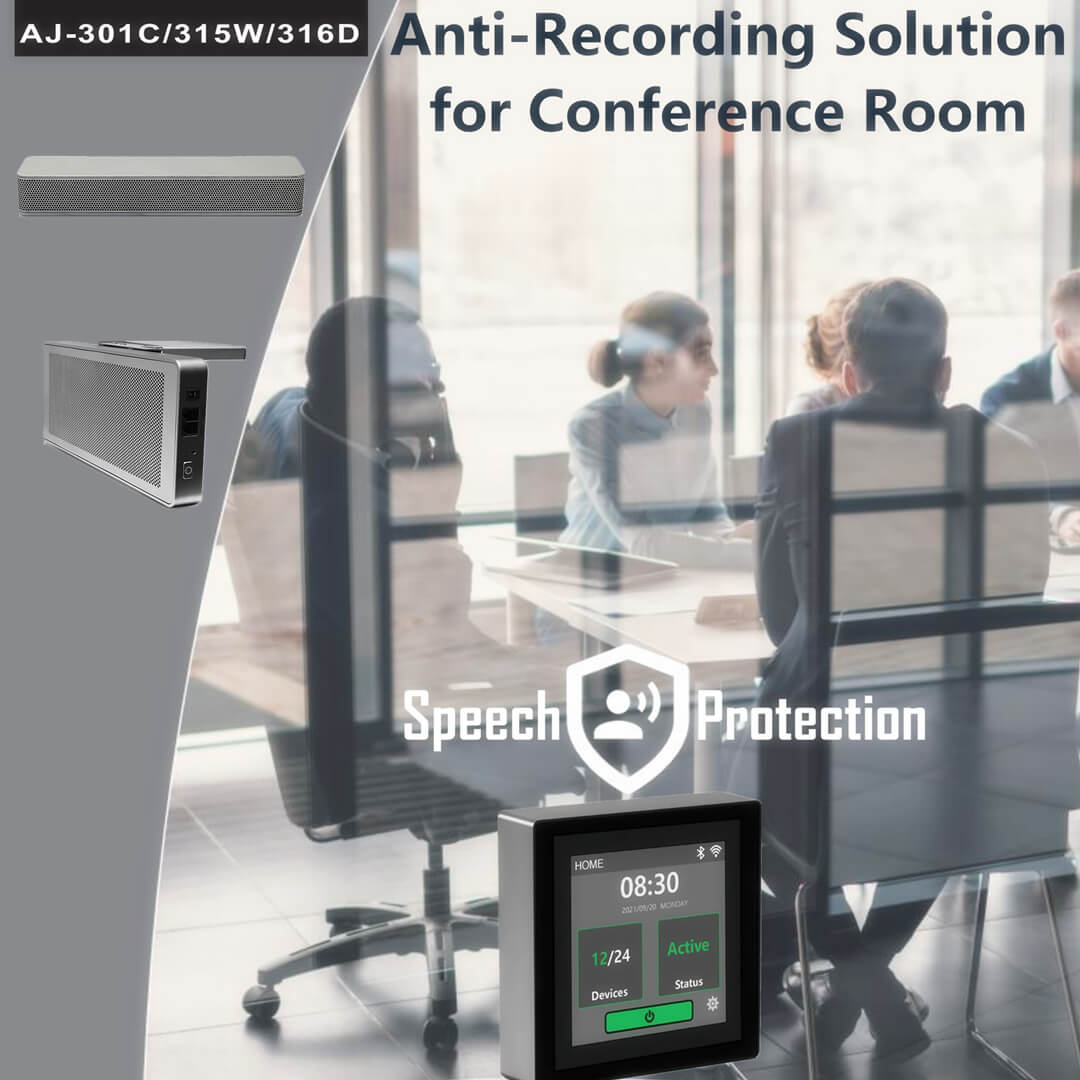

Ultrasonic Audio Jammer Solution for Conference Room
It is commonly to be noted that: Ultrasonic Audio Jammer is to jam the area where there are humanbeing taking un-authorized voice recording, rather than the whole space. So it is required for a stretegy deployment on jammers qty and position.
For best jamming performance, below audio jammers qty are suggested as Typical Scenoarios:
Around 20M² Room: AJ-315W * 4 + AJ-316D * 3 + AJ-301C * 1 (Table Length 4M)
Around 40M² Room: AJ-315W * 6 + AJ-316D * 5 + AJ-301C * 1 (Table Length 6M)
Introduction of the Solution:
Our advanced audio jamming solution for conference rooms can effectively block these common recording devices. It offers secure, unobtrusive, and wide coverage with easy deployment advantage. The system consists of a smart gateway, desktop and wall-mounting microphone jammers. The jammers can be connected to the gateway via Bluetooth or cable. It can operate on a single jammer independently or multiple jammers through network deployment.

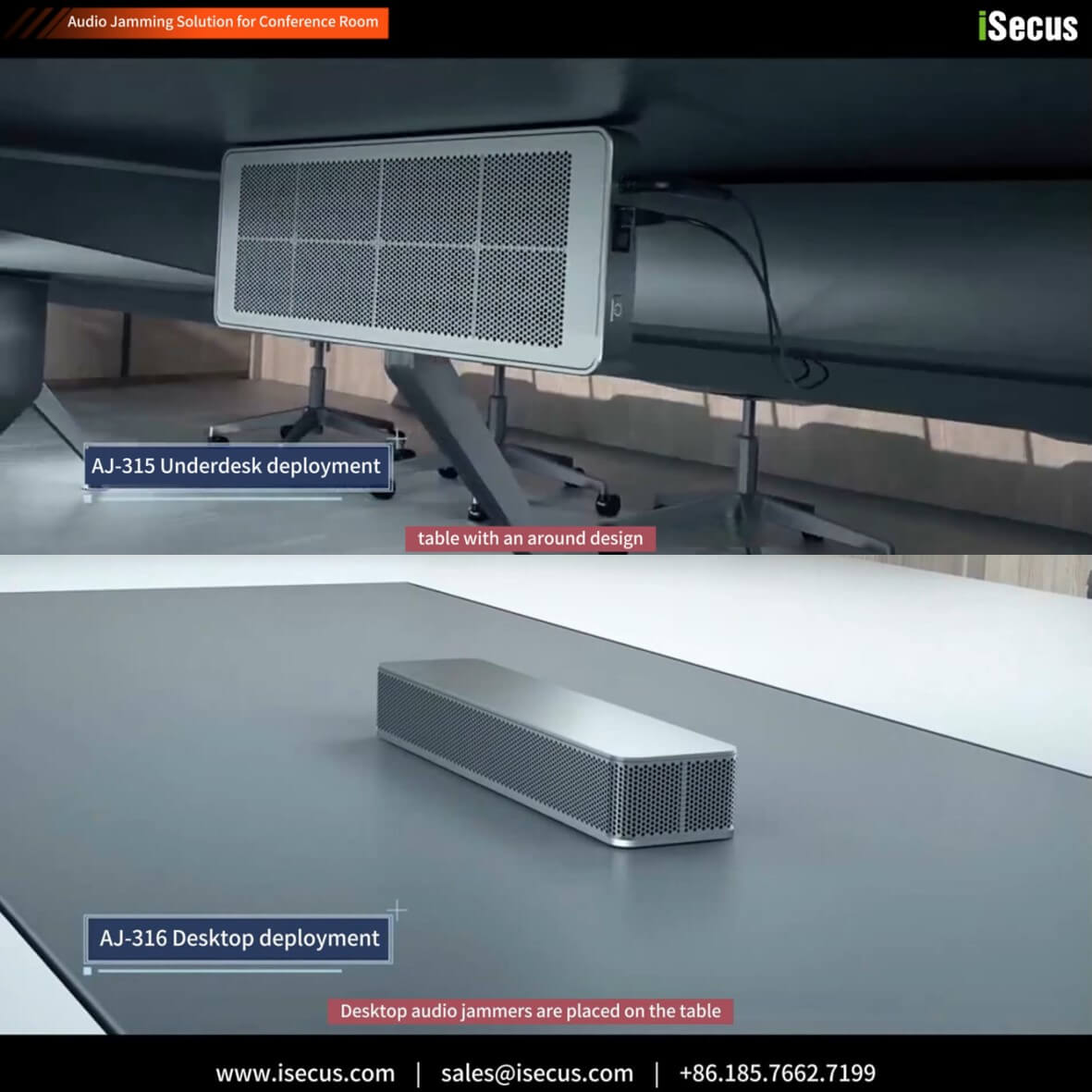

Desktop audio jammers are placed on the table, aligned in a straight line, to jam the above-table area from recording devices. Wall-mounting audio jammers are installed under the table with an around design, to jam the under-table area from recording devices. The gateway can centrally manage maxi-mun 32 jammers.
By emitting ultrasound waves that are not hearable to our humanbody”s ear, the audio jammers create a nonlinear effect on recording devices. All recorded voice on site will be noise and impossible to restore.
Under-table Jammer AJ-315W
AJ-316D Desktop Audio Jammer

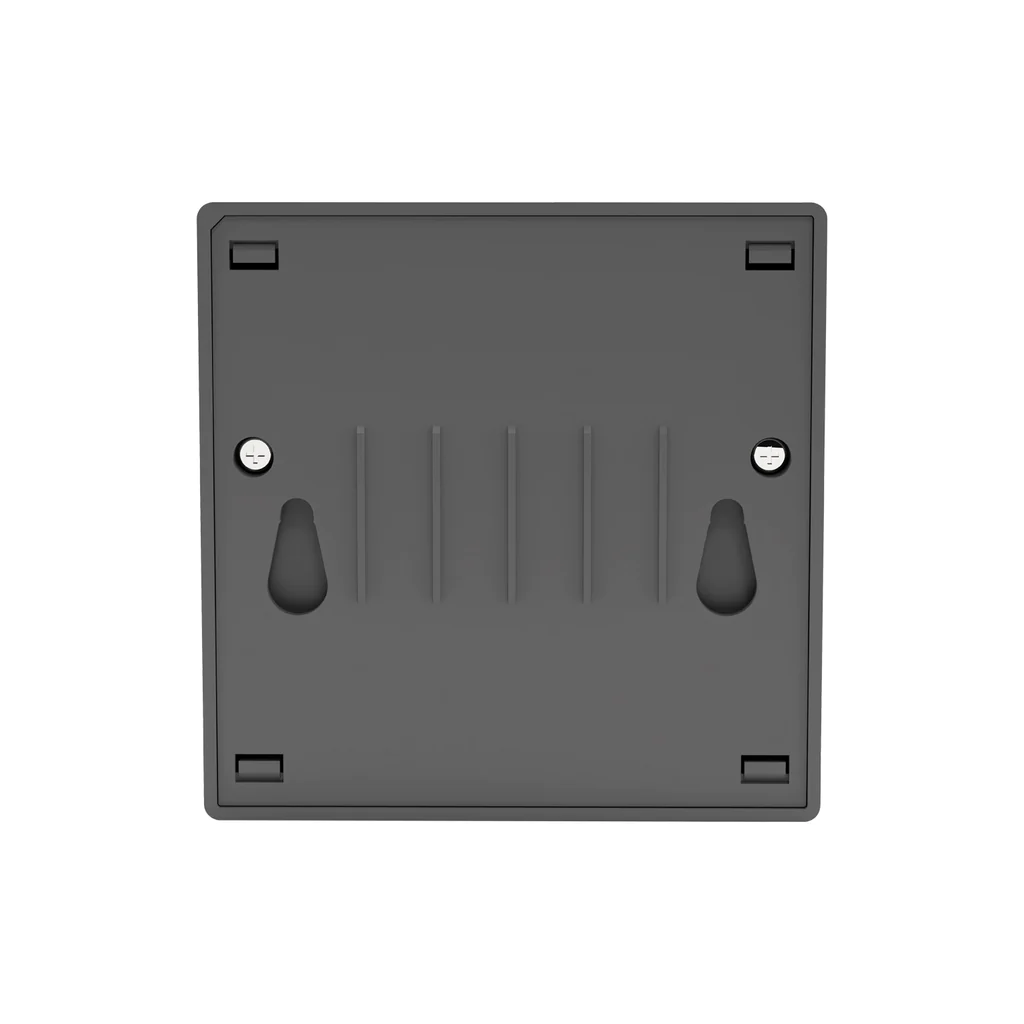

AJ-301C Audio Jammer Controller

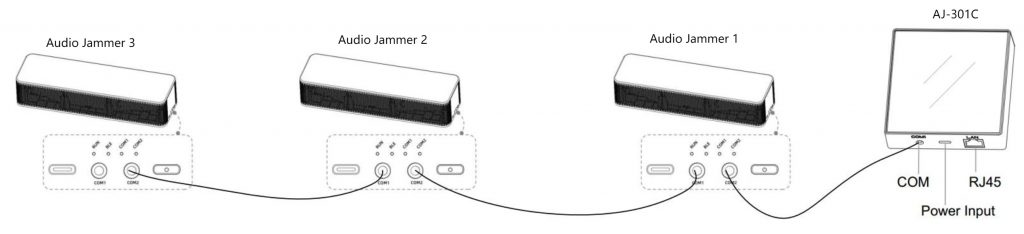

Introduction about how to connect the jammer controllers with audio jammers
Due to wireless jammers are used in certain scenario, some users don’t want to use Bluetooth Connection. In this way, serial wiring is suggested.
Description
1. AJ-301C is central controller, only 1* COM1 port.
2. AJ-315W and AJ-316D, there are 2 ports, COM1 and COM2.
3. Please connect AJ-301C’s COM1 with AJ-315W/316D’s COM2
4. COM1 of AJ-315W/316D is connected to COM2 of the next level AJ-315W/316D, by series connection method
