Model: RevFace15Plus
7″ Touch Screen Face Recognition Access Control
General Configuration:
√ Face User Capacity: 30,000
√ Advanced Hardware: 1GB RAM/8GB Flash, 2MP WDR Camera
√ Communication: TCP/IP, Wiegand Input/Output, Wi-Fi, RS485/RS232
√ Professional Access Control Interface: Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
√ Waterproof Level: IP65
√ Suggested Software for WLAN management: ZKBioAccess, ZKBiotime
ZK RevFace15Plus is for high-level organization such as government, multinational company. If you are looking for Big Face User Capacity Face Recognition Access Control, RevFace15 is highly recommended.
Description:
RevFace15 is a state-of-the-art face recognition terminal that supports visible light technology and mask detection. It is powered by the latest ZKTeco’s customized CPU, which runs a smart facial recognition algorithm that can handle various scenarios. RevFace15 is one of the top-configuration models, which is designed to boost performance in all aspects and deal with all kinds of scenarios.
RevFace15 is a reliable and durable device that can operate in extreme temperatures from -20°C (-4°F) to 45°C (113°F). It also has an IP65 rating, can be installed outside with dustproof and waterproof.
What softwares does RevFace15 support?
TA Push Mode: ZKTime5.0, ZKBiotime AC
Push Mode: ZKAccess, ZKBioAccess, ZKBioCVSecurity
Features:

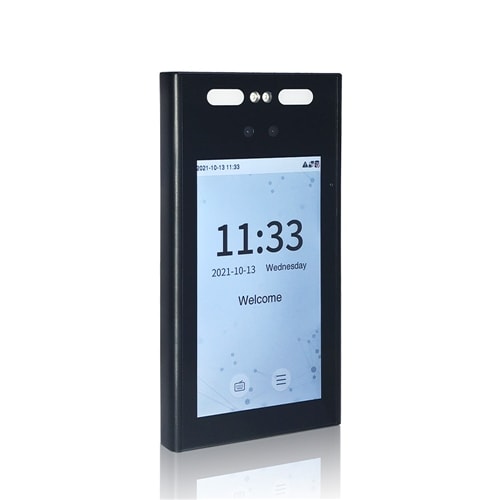

◆ 7-inch touch LCD screen
◆ Visible Light Facial Recognition at Super Fast Speed
◆ Large Face Users Capacity
◆ Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
◆ IP65 ingress protection rating
◆ Compatible with external RS232, RS485 and Wiegand reader
◆ Unrivaled facial recognition speed (less than 0.2 seconds per face)
Specifications:
| Model | RevFace15Plus |
| Display | 7-inch Touch Screen |
| User Capacity | 30000 |
| Face Capacity | 30000 |
| Transaction | 200000 |
| Operation System | Linux |
| Standard Function | ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods |
| Hardware | Quad-core ARM Cortex-A7@ 1.2GHz, 1GB RAM/ 8GB Flash, 2MP WDR Low Light Camera, Adjustable LED Light Brightness |
| Communication | TCP/IP, Wiegand Input/Output, Wi-Fi, RS485/RS232 |

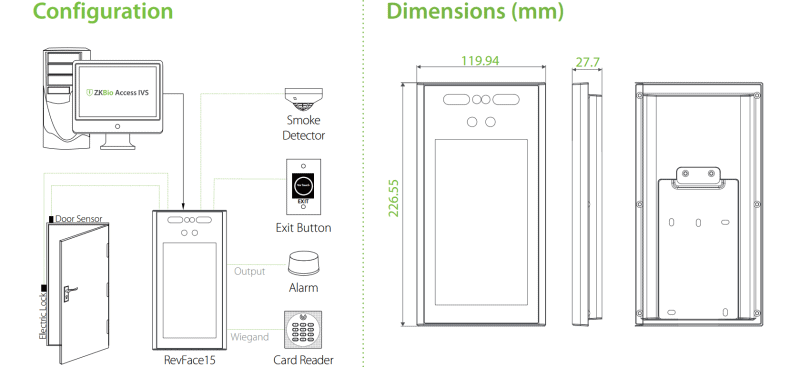

| Access Control Interface | 3rd-Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input |
| Facial Recognition Speed | ≤0.2s |
| Biometrics Algorithm | ZKLiveFace V5.9 |
| AC Adapter | DC 12V 3A |
| Working Humidity | 0% to 90% |
| Working Temperature | -20°C to 45°C (-4°F to 113°F) |
| Dimensions (W*H*D) | 119.9 * 226.6 * 27.7 (mm) |
| Supported Software | ZKBioAccess IVS, Biotime8.0, ZKTime5.0, ZKAccess3.5 |
| Protection Level | IP65 |
