  • ZKTeco IN01A Fingerprint Time Attendance and Access Control-S

Model: IN01-A
ZK Fingerprint Time Attendance and Access Control

General Configuration:
3.0″ TFT LCD
Fingerprint Capacity: 3,000 (Optional 8000)
RFID Card Capacity:10,000 (Optional)
Log Capacity: 100,000
Communication: TCP/IP, RS232/485, USB Host & Client
Standard Functions: DST, Self Service Query, T9 Input, Schedule Bell, SSR and Network Report, Simple Access Control function
Optional Functions: ID/MF module, UPS, ADMS, Li Battery

Inquire Price


ZK IN01-A is a 3-inch TFT screen Time Attendance & Access Control Terminal that adopted the new user-friendly firmware and latest coreboard which improves its performance,accelerates identification speed and has more expandabilityfor various customization requirements.

Built-in 2000 mAh backup battery eliminates the trouble of power failure. It is equipped with RS232/485, TCP/IP, USB-Host and optional Wi-Fi/ GPRS communication that ensure a smooth data transmission between device and PC. The IN01-A has access control interface for Wiegand I/O, door lock, alarm, and bell.


◆Color TFT screen with GUI Interface for ease of use
◆Built-in Serial, Ethernet port and USB port
◆Multiple verification methods: Fingerprint/Card/Password
◆Combined Verification Group function
◆Built-in battery backup provides approx 4 hours continuous operation
◆10000 Card User Capacity suitable for big enterprise use

Fingerprint Capacity3000
ID Card Capacity10,000 (Optional)
Record Capacity100000
Display3.0-inch TFT screen
CommunicationTCP/IP, RS232/485, USB (host and client)
Standard FunctionsWorkcode, SMS, DST, Self-Service Query, Automatic Status Switch, Multiple Verification Mode
Access Control Interface for3rd Party Electric lock, Door Sensor, Exit Button, Alarm, Door Bell
Wiegand SignalInput & Output
Optional FunctionsID/Mifare/HID, GPRS, Wi-Fi, Built-in Battery, Photo-ID, External Printer, ADMS
External Bell, Scheduled-Bell, Anti-Passback
Power Supply12V DC 3A
Operating Temperature0°C - 45°C
Operating Humidity20% - 80%
Dimension 211.54× 1589.4 × 47.8 mm (L x W x T)

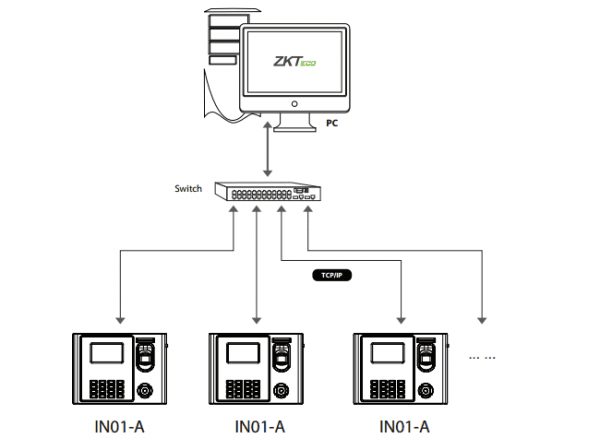

IN01-A Connection Diagram

ZKTeco IN01-A connects to Biotime

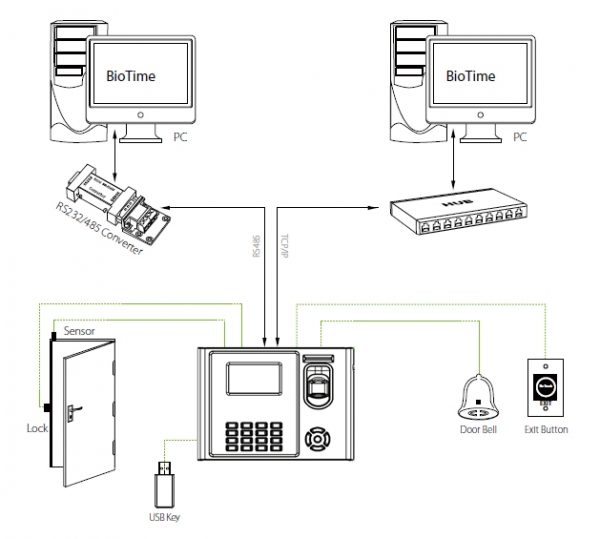

ZKTeco IN01A-Connection Diagram
