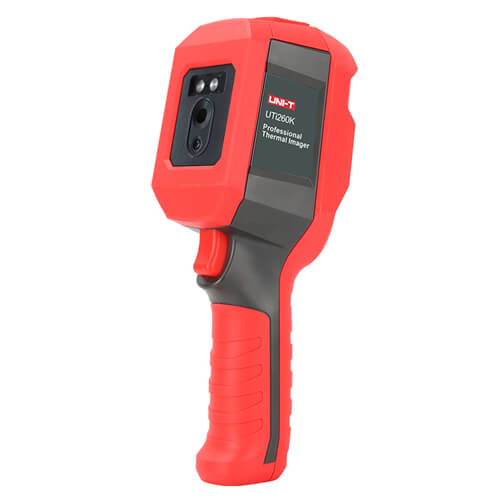

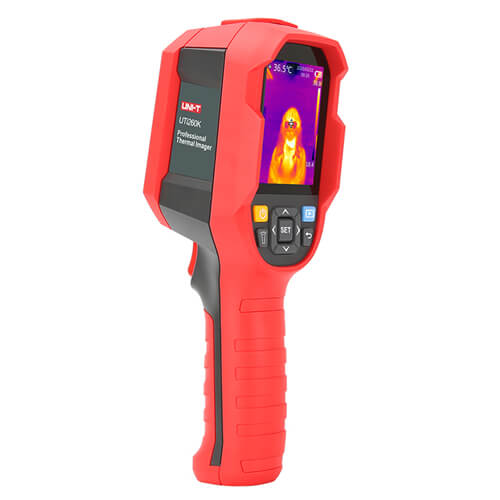

Model: UTI260K

Thermal Imager Camera thermometer with realtime monitoring function

UTi260K is a newly released thermal imaging camera with thermometer function. It supports higher configuration than other models like UTi165K and UTi160H. This handheld camera offers superior-high-quality resolution thermal imaging. By connecting camera with PC, you can monitor the video in realtime and project the video to big monitor.

UTi260K enjoys below advantages:

  • Higher IR resolution 256*192: Much clearer thermal image

  • High Frame Rate ≤25Hz: More fluent video

  • Picture in Picture Mode: To get better imaging viewing

  • Region of Interest Mode: To avoid interference

Ask for price


* Measurement Range: 30℃ ~45℃(℃ and ℉  switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Recommended Measuring Distance: 100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis
* Tripod mounting hole(1/4 inch)

Scan to chat with iSecus in Whatsapp:


SensorUncooled focal plane
Temperature range30˚C~45˚C
Accuracy±0.5℃ (@ 25℃ ambient temperature)
Optimal measuring distance1m
Temperature measurement response time≤500ms (95% of reading)
Thermal resolution49152 (256×192)
Pixel dimemsions12μm
PalettesIron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy8~14μm
Field of view (FOV)56°(H) × 42°(V)
Instantaneous field of view (IFOV)3.8mrad
Thermal imaging sensitivity<50mk
Frame rate<25Hz
Temperature displayCenter temperature measurement and high temperature tracking (default)
Image formatBMP
Image modesThermal camera, visible camera, image blending
Temperature measuring pointBesides central point, 3 temperature measuring points can be added
Visual camera
Resolution of visible light640×480
Display resolution320×240
Image blending0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC)
Real-time image transmissionPC software image projection
Data communicationType-C USB
Auto power offSelectable (5min, 10min, 30min), 30min auto power off (default)
Battery life≥6 hours
Charging time≦5 hours
Charging voltage/current5V/2A
Image storage16G Micro SD card
General Characteristics
PowerA single Li-ion 3.7V/5000mAh 26650 battery
Display2.8" TFT LCD
Product colorRed & grey
Product size236mm x 75.5mm x 86mm
Standard accessoriesManual, Type-C USB cable, 16GB TF card
Standard carton gross weight2.2kg
