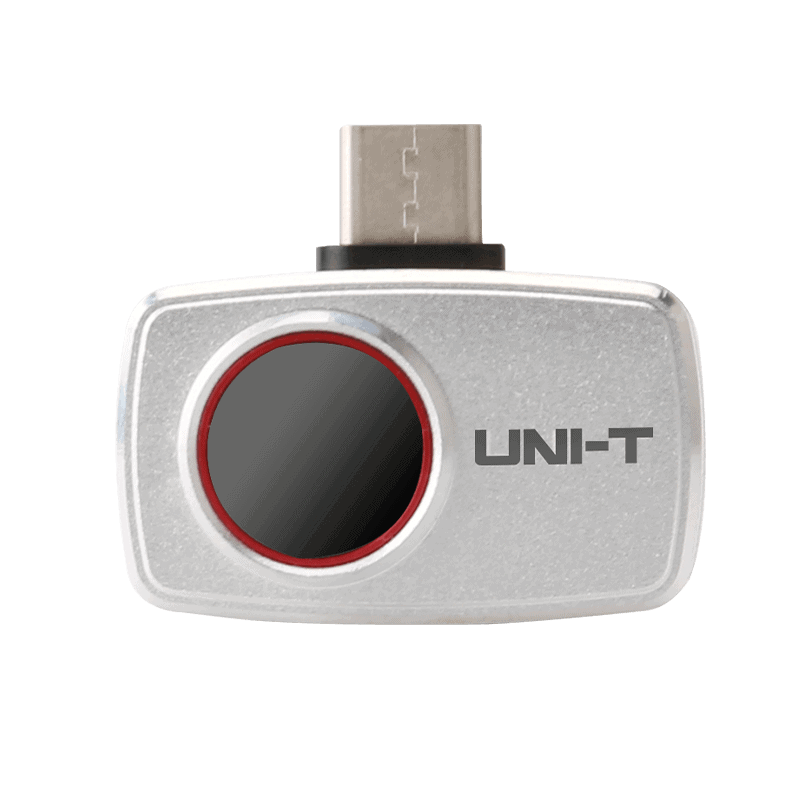

  • UTi256M Smartphone Thermal Imaging Camera-P1

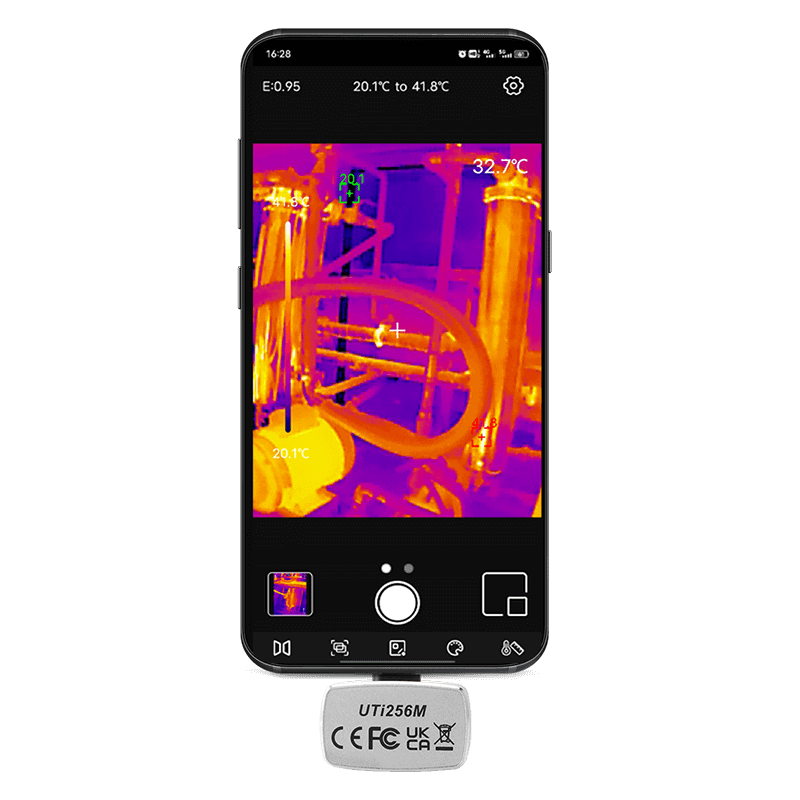

  • UTi256M Smartphone Thermal Imaging Camera-P2

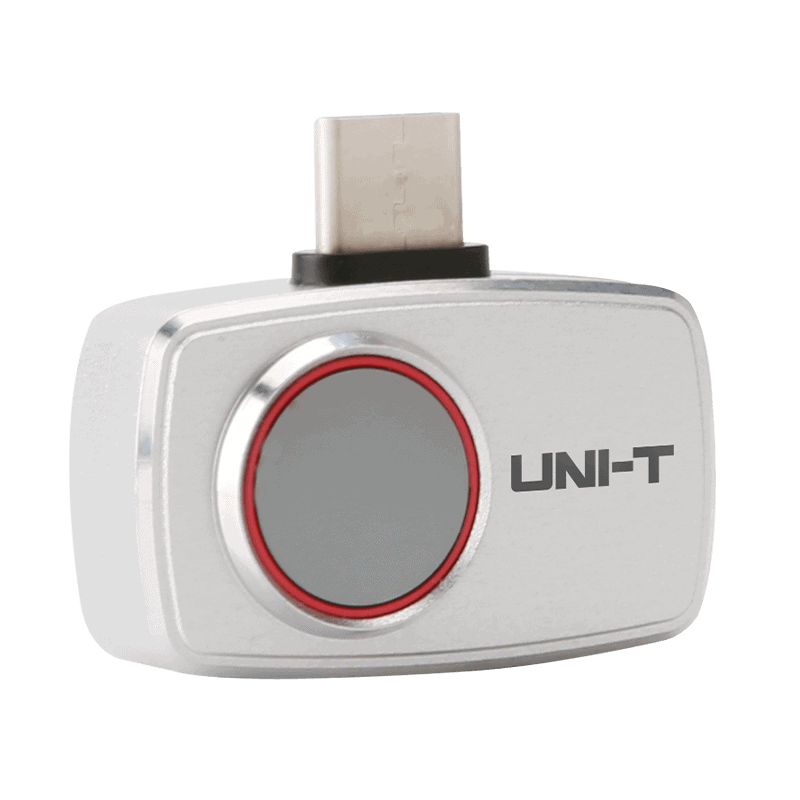

  • UTi256M Smartphone Thermal Imaging Camera-P3

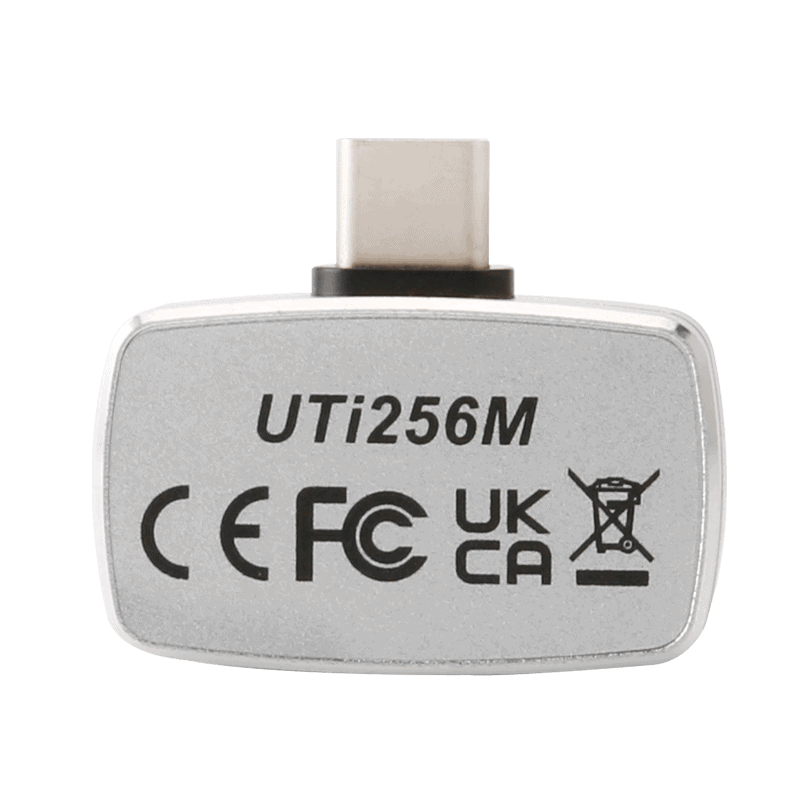

  • UTi256M Smartphone Thermal Imaging Camera-P4

Model: UTi256M

Mobile Phone Thermal Imager for Android

UTi256 is an advanced portable thermal imaging camera at high performance/price rate.

General Configuration:
  Measurement Range: -20℃ ~ 200℃
  Image Mode: Thermal Image, Fusion Image, PIP
On screen analyzer: Point 6/Line 6/Rectangle 6/Circle 6
IR Resolution: 256*192 (49152)
Palettes: 7
Video recording and Picture Screenshot
Operation system: Android(USB Type-C interface)

Ask for price
Buy Online

UTi256M is a professional thermal camera for Android smartphone. The camera is compact, portable, and easy to operate through connecting with mobile phones. It supports 256×192 IR resolution and provides clear image at fast speed.

UTi256M can detect wide temperature measurement range -20℃ ~ 200℃. It could be used to troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features:
* Wide Temperature Measurement Range: -20℃ ~ 200℃
* Multiple Image Modes: Thermal, Fusion and Picture in Picture
* Image Snapshot and Video Recording
* High/Low Temperature Tracking
* High/Low Temperature Alert
* On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6

Specifications:
Technical Data
Cellphone OSAndroid 6.0 above
IR resolution (Pixels)256×192
Field of view(FOV)56.0°×42.2°
Thermal sensitivity(NETD)≤50mK @25℃
Spatial resolution(IFOV)3.8mrad
Frame rate≤25Hz
FocusFocus free
Lens focal length3.2mm
Temperature measurement range-20℃ ~ 200℃(-4℉~392℉)
AccuracyIndustry: ±2° or ±2% whichever is greater (0℃~550℃)
Emissivity0.01~1.00 adjustable(0.95 Default)
Functions
Color palettes7(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modesThermal, Fusion, PIP
On screen analyzerPoint 6/Line 6/Rectangle 6/Circle 6
Auto alarm for high/low temperature
Video recording
General Characteristics
USBType-C
Drop proof1m
Image/Video storage formatJPEG
CertificatesCE, FCC, UKCA
Product size33mm×28.2mm×11.3mm

Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgement.
3. Avoiding judgement errors, reducing labor cost, and discovering poor heat dissipation and hidden trouble points.
4. PC Software for data analysis and report output

Typical Applications on UTi256M:
Electricity Facilities Inspection, Mechanical Equipment Inspection, Heating Equipment Inspection, Building & HVAC (Heating, ventilation, and air conditioning) Inspection, etc.

A close glance at UTi256M Camera Features

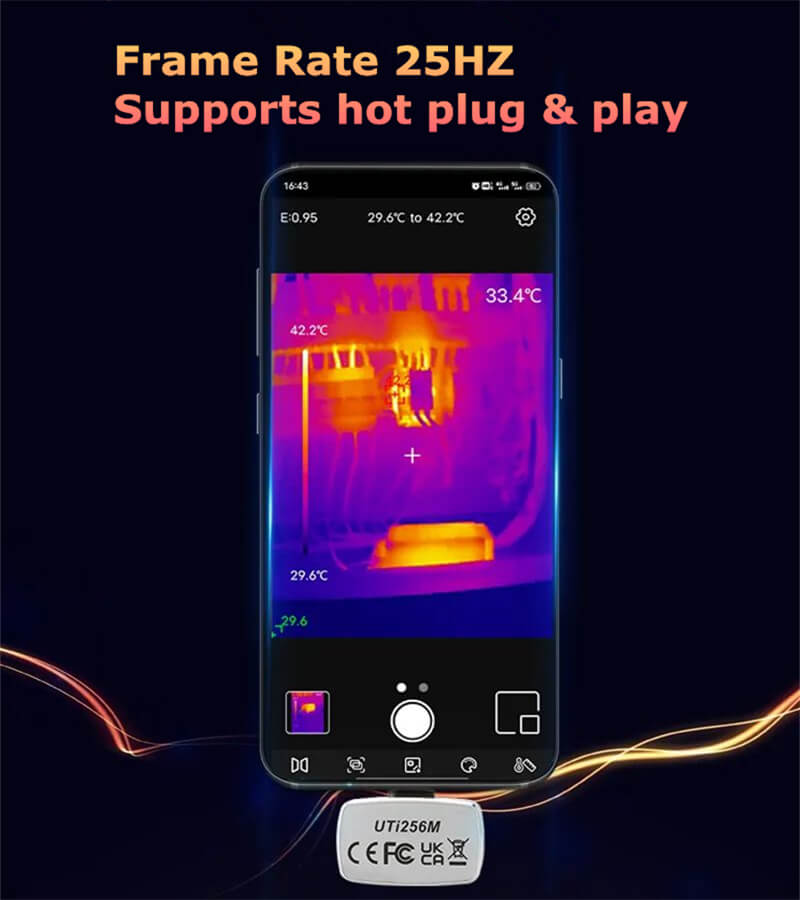

UTi256M Thermal Imaging Camera Smartphone Imager from iSecus-P1

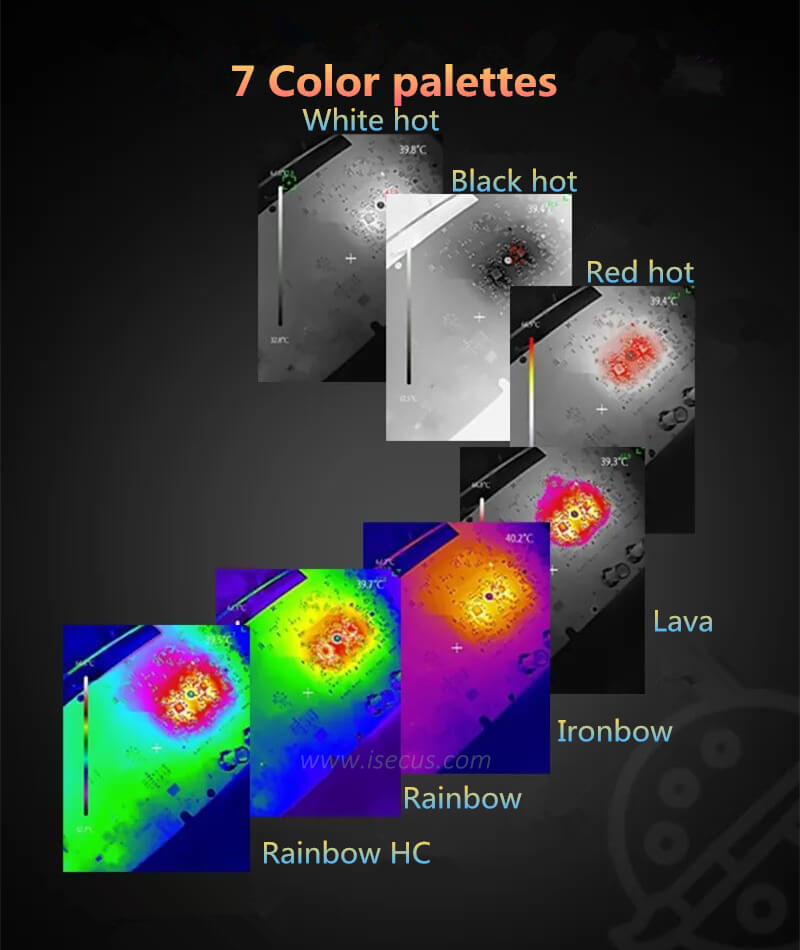

UTi256M Thermal Imaging Camera Smartphone Imager from iSecus-P2

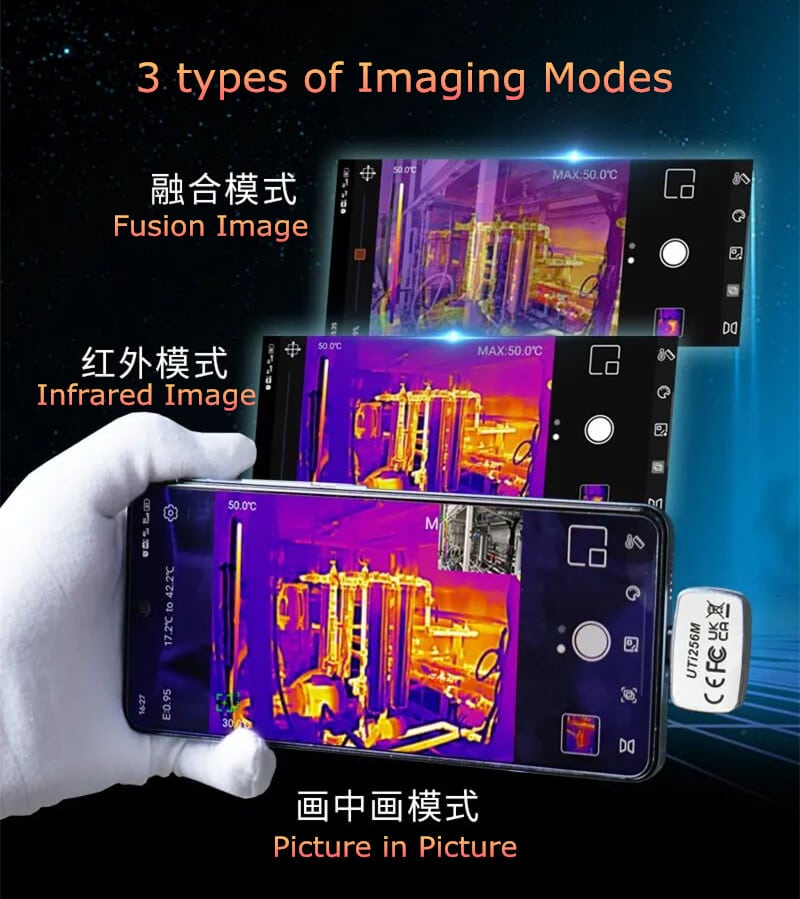

UTi256M Thermal Imaging Camera Smartphone Imager from iSecus-P3

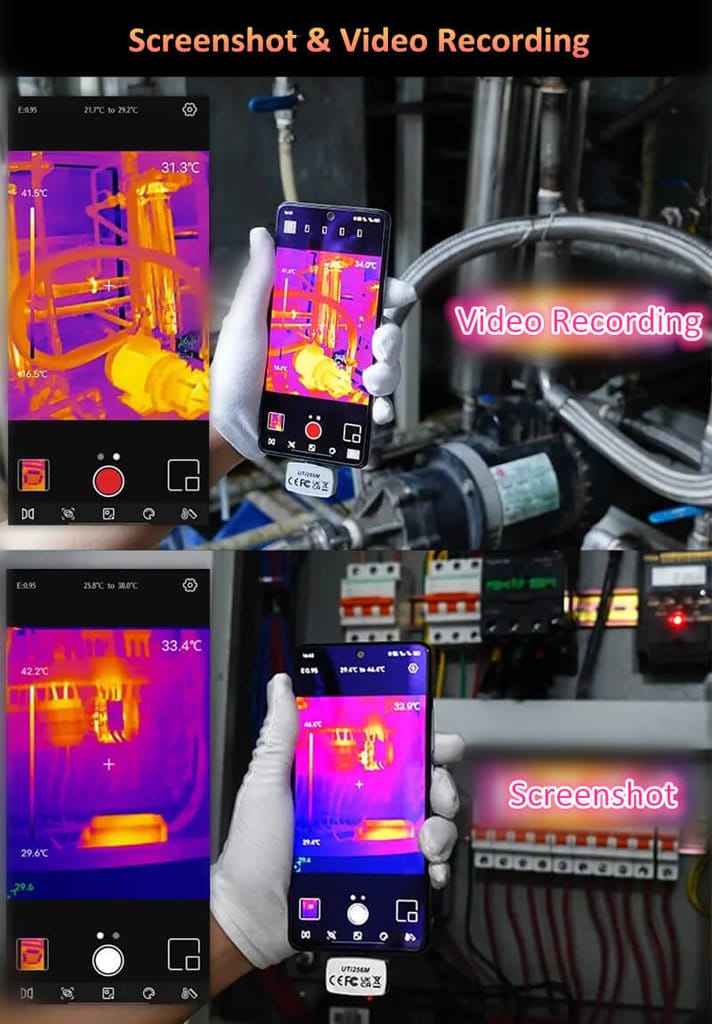

UTi256M Thermal Imaging Camera Smartphone Imager from iSecus-P4

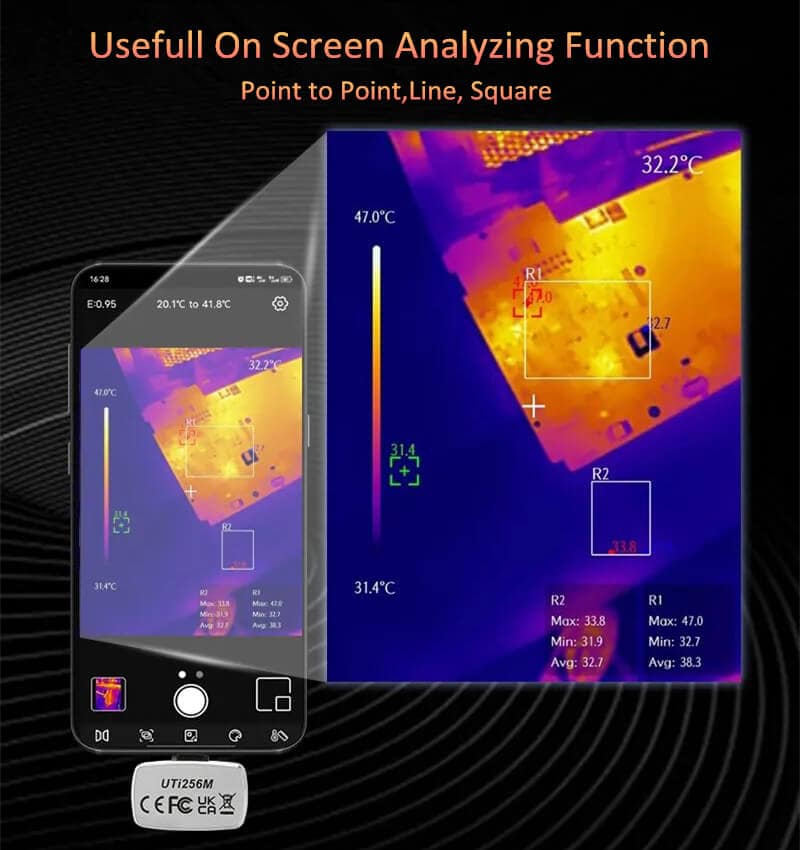

UTi256M Thermal Imaging Camera Smartphone Imager from iSecus-P5
