Project Description

Model: UTi165A

Industrial Thermal Imaging Camera(10℃ ~400℃) , 120 * 160 resolution

UTi165A is a handheld thermal imaging camera for industrial use to measure temperature from -10℃ to 400℃.  Can be used in wide applications like electric testing, power monitor system.

It supports the following configuration:
* IR resolution 120*160
* Temperature Range: 10℃ ~400℃ (14℉~752℉)
* Thermal Image and Visible Light Image Display
* SD Card Storage
* Embedded Battery
* Flush Alarm
* PC Software analysis
* IP65 Waterproof and 2M drop resistant

Ask for price
Buy Online

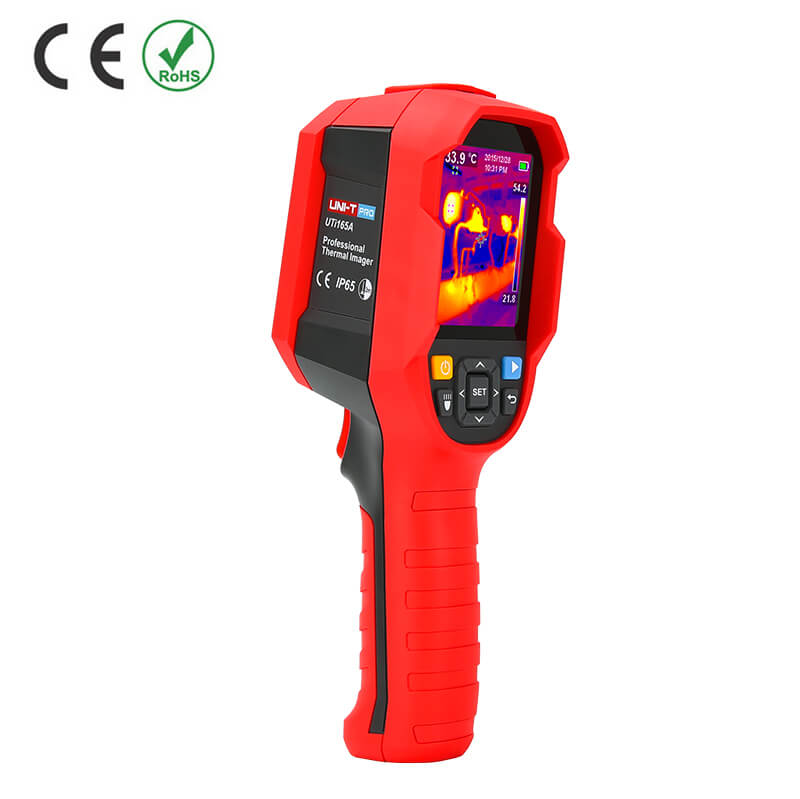

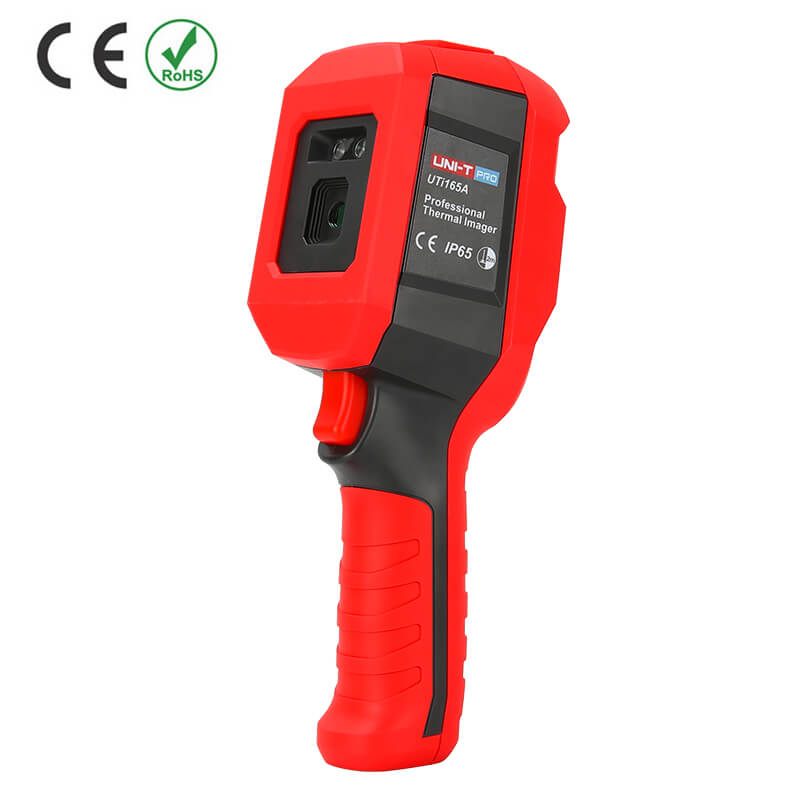

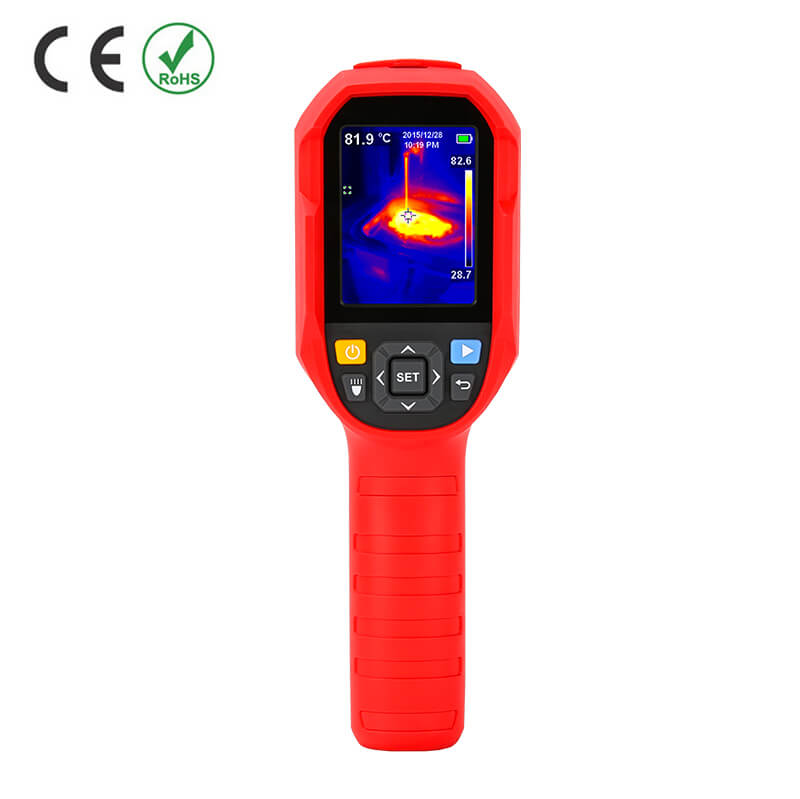

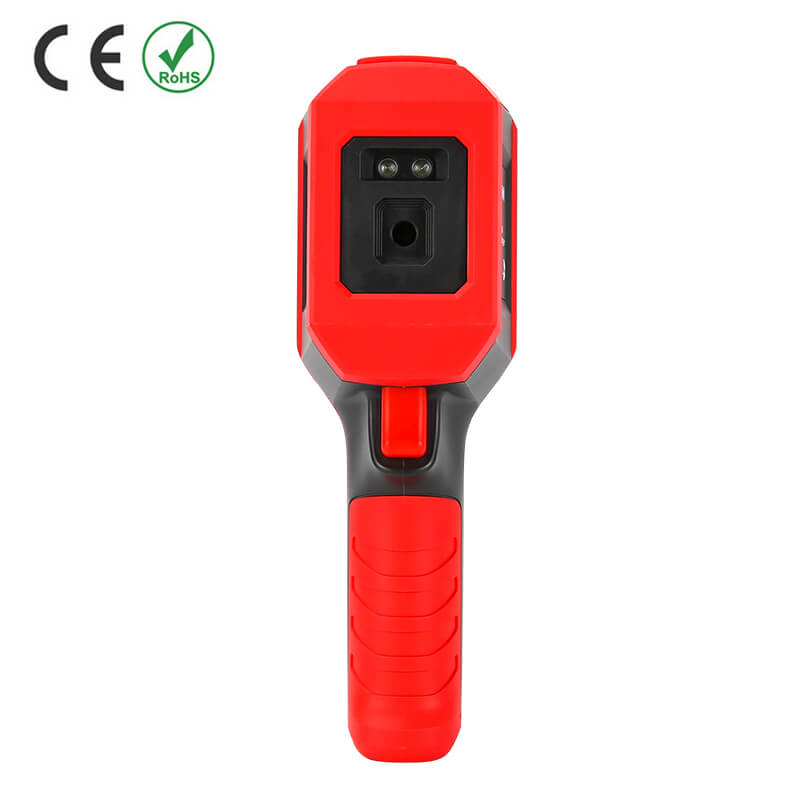

UTi165A is a professional infrared thermal imager that supports surface temperature measurement with a wide range among -10℃ ~400℃ (14℉~752℉). It adopts 2.8″ LCD screen and potential problems can be clearly displayed through the thermal imager screen.

The device is elegant in design, completed in functions, and durable. It is embedded with hgih-brightness lighting, and allows you to easily find the object under test even when working in a dim environment. UTi165 reaches IP65 waterproof level and 2M drop resistant. Can cope with a variety of shooting environments.

This thermal imager cameras could be used widely in many applications, like electricity system inspection, solar penel inspection, motor inspection, power line inspection, power distribution cabinet inspection, etc.

Features:

* Measurement Range: -10℃ ~400℃ (14℉~752℉)
* High IR resolution: 160*120
* Temperature Alarm: High/Low Temperature
* IP65 Waterproof level to be used outdoor
* Taking photo and save to SD card
* PC Software analysis and report export
* Tripod mounting hole(1/4 inch)

Specifications:

ModelUTi165A
SensorUncooled focal plane
Temperature range10℃ ~400℃ (14℉~752℉)
Temperature Resolution0.1˚C
Accuracy±2˚C or ±2%
Temperature measurement response time≤500ms (95% of reading)
Pixel of thermal imagery19200(160*120)
Pixel dimemsions12μm
Palettes Style Choices5
Bandwidth of infraed spectroscopy8~14μm
Field of view (FOV)56°(H) × 42°(V)
Instantaneous field of view (IFOV)6.1mrad
Thermal imaging sensitivity<50mk
Frame rate<9Hz
Temperature displayCenter temperature measurement and high temperature tracking (default)
Image formatBMP
Image modesThermal Camera
Buzzer AlarmN/A
Temperature measuring pointCentral point
Display resolution320×240
PC Software Realtime monitoring
Data communicationType-C USB
Auto power offSelectable (5min, 10min, 30min), 30min auto power off (default)
Service time≧6 hours
Charging time4 hours
Image storageMicro SD card
Waterproof LevelIP65
Drop Requirement2M Drop
PowerA single Li-ion 3.7V/5000mAh 26650 battery
Display2.8" TFT LCD
Product colorRed & grey
Product size236mm x 75.5mm x 86mm
Standard accessoriesManual, Type-C USB cable, 16GB TF card
Standard carton gross weight2.2kg
