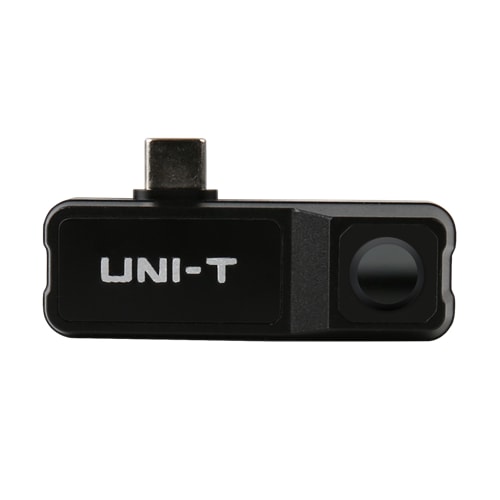

  • UTi120M Mobile Thermal Imager 120x90 Video Recording-P1

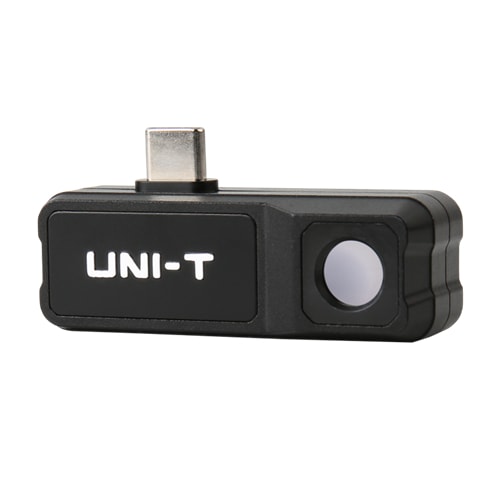

  • UTi120M Mobile Thermal Imager 120x90 Video Recording-P2

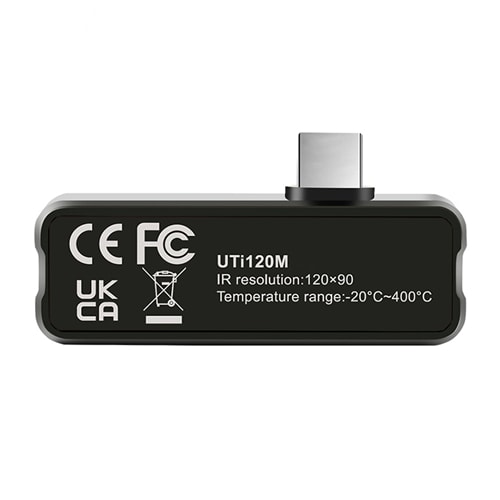

  • UTi120M Mobile Thermal Imager 120x90 Video Recording-P3
  • UTi120M Mobile Thermal Imager 120x90 Video Recording-P4

Model: UTi120M

Mobile Thermal Imager/Smartphone Thermal Imaging Camera

A cost-effective mobile thermal imager for your smartphone.

General Configuration:
  Measurement Range: -20°C ~200°C
  Image Mode: Thermal, Fusion, Piture in Picture
On screen analyzer: Point 6/Line 6/Rectangle 6/Circle 6
IR Resolution: 120*90
Palettes: 7
Video recording and Image Snapshot
Operation system: Android(USB Type-C interface)

Ask for price
Buy Online

UTi120M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. UTi12om provides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module

Features:
* Wide Temperature Measurement Range: -20℃ to 400℃ / -4℉ to 752 ℉
* Multiple Image Modes: Thermal Image, Fusion Image, Picture in Picture
* Image Snapshot and Video Recording
* High/Low Temperature Tracking
* High/Low Temperature Alert
* On screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6

Specifications:

Technical Data
IR resolution (Pixels)120×90
Field of view(FOV)50°×38°
Thermal sensitivity(NETD)≤60mK @25℃
Spatial resolution(IFOV)7.3mrad
Frame rate≤25Hz
FocusFocus free
Lens focal length2.28mm
Temperature measurement range -20℃ ~ 400℃
Temperature scale/
Measurement modes/
Accuracy±2℃ or ±2% whichever is greater
Emissivity0.01~1.00 adjustable (0.95 default)
Functions
Color palettes7(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modesThermal,Fusion,PIP
On screen analyzerPoint 6/Line 6/Rectangle 6/Circle 6
Auto alarm for high/low temperature
Video recording
General Characteristics
USBType-C
Drop proof2m
Image/Video storage formatJPEG
CertificatesCE,FCC,RoHS
Product net weight25g
Product size53mm×18.2mm×18.5mm
Packing Details
Standard accessoriesMicro USB adapter, Type-C male to female extention USB cable, English manual
Standard individual packingGift box
Standard Qty per carton20pcs
Standard carton size290mm×265mm×325mm
Standard carton G.W.4.8kg

Advantages of thermal imager detection:
1. Intuitive, efficient and convenient, making users directly “see” the temperature variation.
2. Thermal condition of different locations for comprehensive analysis, providing more information for judgement.
3. Avoiding judgement errors, reducing labor cost, and discovering poor heat dissipation and hidden trouble points.
4. PC Software for data analysis and report output

Typical Applications on UTi120M:

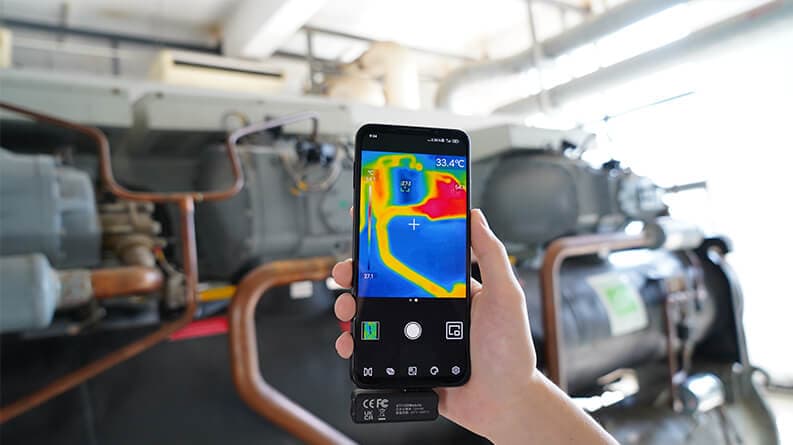

UTi120M Mobile Thermal Imager for Pipeline Inspection

Pipeline Inspection

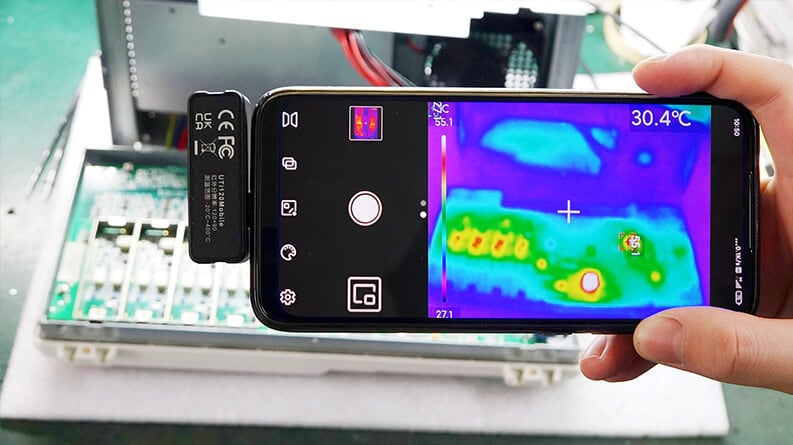

UTi120M Mobile Thermal Imager for PCBA Inspection

PCBA Inspection

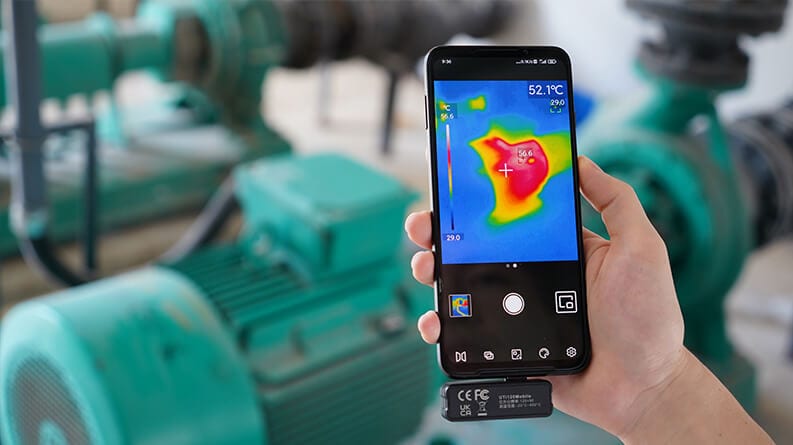

UTi120M Mobile Thermal Imager for Motor Inspection

Motor Inspection

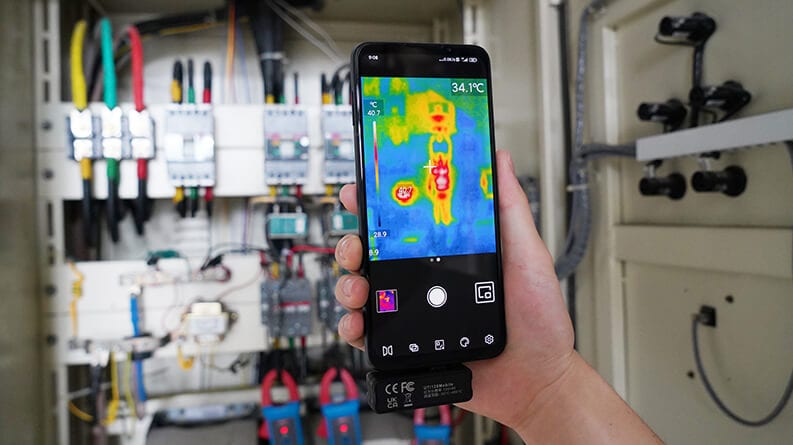

UTi120M Mobile Thermal Imager for Electricity Inspection

Electricity Inspection

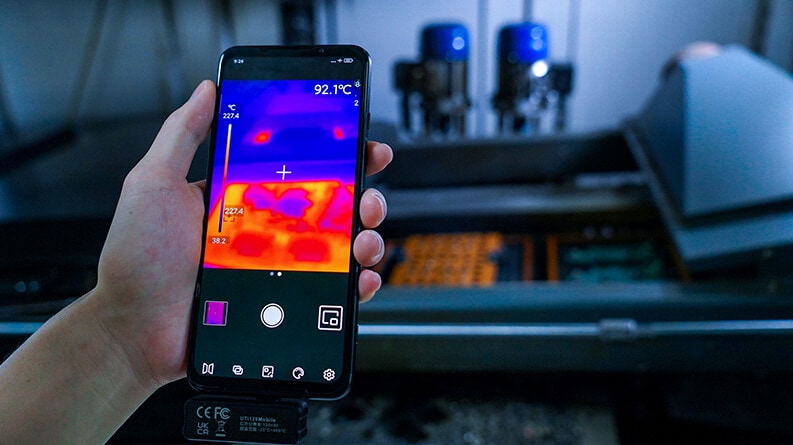

UTi120M Mobile Thermal Imager for Manufacturing Machine Inspection

Manufacturing Machine Inspection

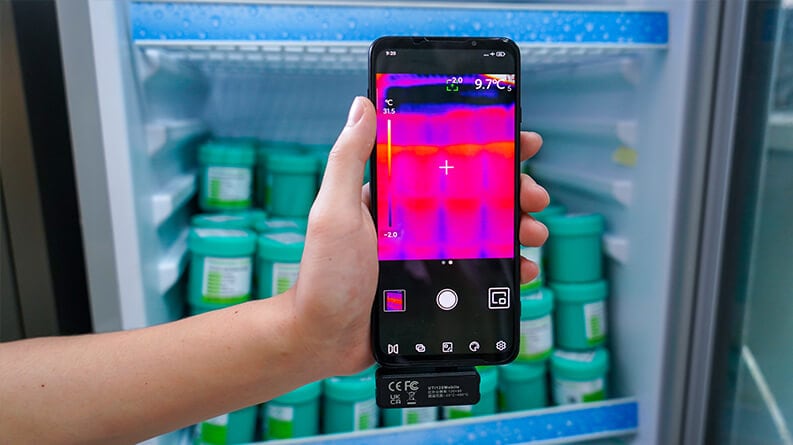

UTi120M Mobile Thermal Imager for Freezer Inspection

Freezer Inspection

Download Center

UTi120M Mobile Thermal Camera Datasheet

UTi120M Mobile Thermal Camera User Manual.pdf

UTi120M Mobile Thermal Camera APK(Zip)
