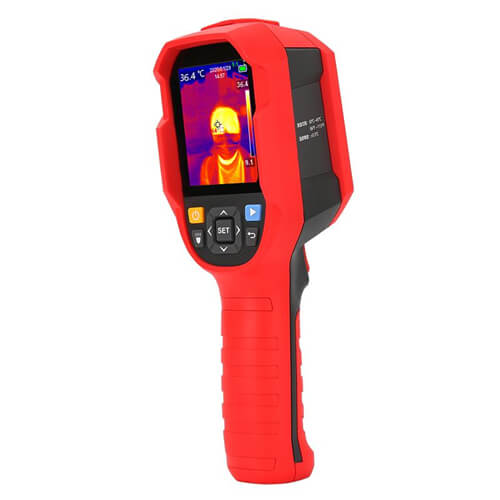

Model: UTi165K

Professional Thermal Imager to measure temperature contactlessly. For preventing new Coronavirus Infection, use our Thermal Imagers to help to control the epidemic.

General Specification:

◆Thermal Imager Resolution: 19200 (160×120)
◆Optimal Measuring Distance: 1m
◆Alarm: Flash, Voice Report from PC Software
◆PC Software Realtime Monitoring
◆Auto Snapshot on alarm picture

Ask for price on UTi165K Camera

Scan to chat with iSecus in Whatsapp

Description:

UTi165K is a professional thermal imager that supports Realtime Monitoring function from PC software. It can measure temperature at higher accuracy from 1m distance. You can use it as handheld device or hold it in the tripod.

Once reaching the threshold setted, the device will give alarm for low/high temperature alarm, including flushing alarm, LCD Screen Alert and Sound Alarm from PC software.

Features:

* Measurement Range: 30℃ ~45℃(℃ and ℉  switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Contactless Measuring: 15cm-100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis and report output
* Tripod mounting hole(1/4 inch)

Specifications:

Model165K
SensorUncooled focal plane
Temperature range30˚C~45˚C
Resolution0.1˚C
Accuracy±0.5˚C @1m
Minimum measuring distance15cm
Temperature measurement response time≤500ms (95% of reading)
Pixel of thermal imagery19200 (160×120)
Pixel dimemsions12μm
PalettesIron red, rainbow, white, black, red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy8~14μm
Field of view (FOV)56°(H) × 42°(V)
Instantaneous field of view (IFOV)6mrad
Thermal imaging sensitivity<50mk
Frame rate<9Hz
Temperature displayCenter temperature measurement and high temperature tracking (default)
Image formatBMP
Buttons10 buttons: POWER button, Camera button, Return button, Navigation buttons, SET button, SET button, Browsing button, LED lighting button
Image modesThermal imagery, digital camera (visible light), fushion
Temperature measuring pointBesides central point, 3 temperature measuring points can be added
Visible light
Resolution of visible light640×480
Display resolution320×240
Mixed setting0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery)
PC analysis software (PC)
Real-time image transmission√ (PC software image projection)
Data communicationType-C USB
Auto power offSelectable (5min, 10min, 30min), 30min auto power off (default)
Service time≧6 hours
Charging time≦5 hours
Charging voltage/current5V/2A
Image storageMicro SD card
General Characteristics
PowerA single Li-ion 3.7V/5000mAh 26650 battery
Display2.8" TFT LCD
Product colorRed & grey
Product size236mm x 75.5mm x 86mm
Standard accessoriesManual, Type-C USB cable, 16GB TF card
Standard carton gross weight2.2kg
