Project Description

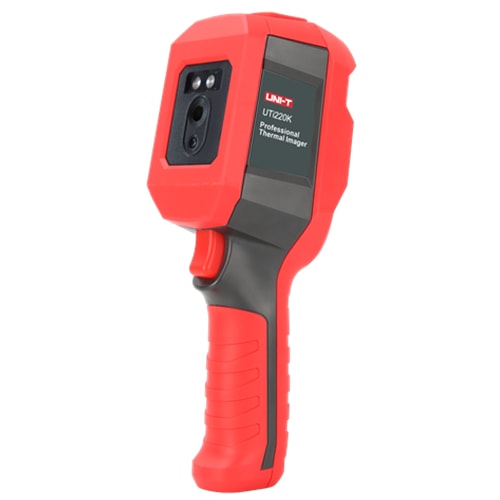

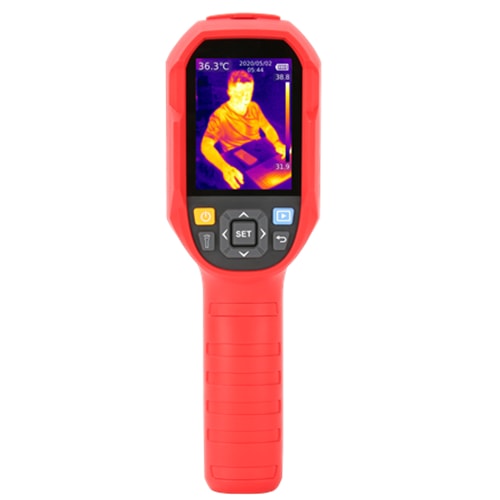

Model: UTi220K

Professional Thermal Imager to measure temperature contactlessly

UTi220K thermometer supports higher configuration than UTi165K, but price is similar to UTi165K. Below are the strong features UTI220k supports:

*Higher Resolution 200 * 150

*Embedded Buzzer

*Region of Interest(ROI)

*Visible camera and thermal camera

Ask for price

Scan to chat with us in Whatsapp directly:

UTi220K is a professional thermal imager that supports Realtime Monitoring function from PC software. It can measure temperature at higher accuracy from 1m distance. Compared to UTi85H+ and UTi165K, UTi220K supports higher IR resolution, offering much more clearer pictures.

Once reaching the threshold setted, the device will give alarm for low/high temperature alarm, including flushing alarm, LCD Screen Alert and Sound Alarm from PC software.


* Measurement Range: 30℃ ~45℃(℃ and ℉  switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image
* Suggested Measuring Distance: 100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis and report output
* Tripod mounting hole(1/4 inch)


SensorUncooled focal plane
Temperature range30˚C~45˚C
Accuracy±0.5℃ (@ 25℃ ambient temperature)
Optimal measuring distance1m
Temperature measurement response time≤500ms (95% of reading)
Thermal resolution49152 (256×192)
Pixel dimemsions12μm
PalettesIron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy8~14μm
Field of view (FOV)56°(H) × 42°(V)
Instantaneous field of view (IFOV)3.8mrad
Thermal imaging sensitivity<50mk
Frame rate<25Hz
Temperature displayCenter temperature measurement and high temperature tracking (default)
Image formatBMP
Image modesThermal camera, visible camera, image blending
Temperature measuring pointBesides central point, 3 temperature measuring points can be added
Visual camera
Resolution of visible light640×480
Display resolution320×240
Image blending0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC)
Real-time image transmissionPC software image projection
Data communicationType-C USB
Auto power offSelectable (5min, 10min, 30min), 30min auto power off (default)
Battery life≥6 hours
Charging time≦5 hours
Charging voltage/current5V/2A
Image storage16G Micro SD card
General Characteristics
PowerA single Li-ion 3.7V/5000mAh 26650 battery
Display2.8" TFT LCD
Product colorRed & grey
Product size236mm x 75.5mm x 86mm
Standard accessoriesManual, Type-C USB cable, 16GB TF card
Standard carton gross weight2.2kg
