Model: ST318

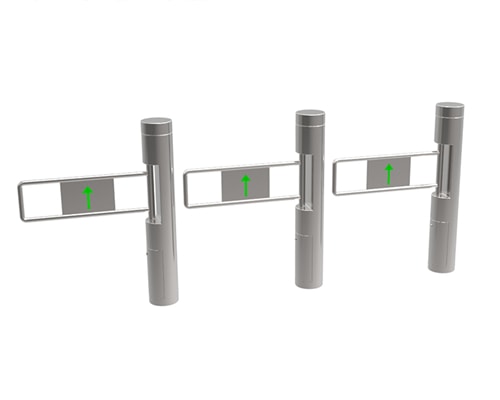

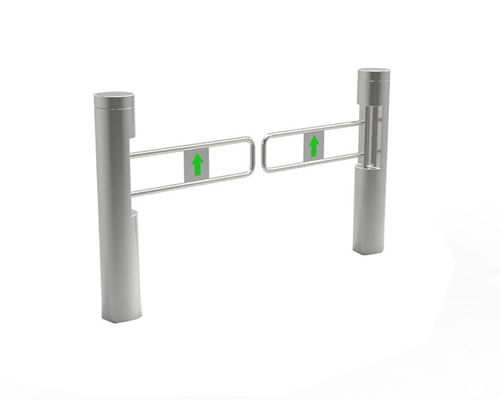

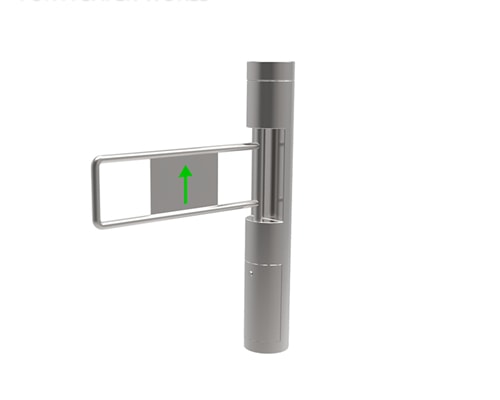

SUS304 Stainless Steel Swing Gate Turnstile

Main Configuration:

* Size:200*200*980mm
* Material: 1.2+1.0mm 304 SUS Hairline #400
* Pass Width<=900mm
* Pass rate:30-35 persons/minute
* Communication Interface: RS485, Dry Contact

* MCBF:5,000,000 Cycles

Suggested hardware and software:
* RFID Controller System: C3-100, C3-200, C3-400
* Fingerprint Controller System: Inbio160, Inbio260, Inbio460
* Fingerprint & Face Access Control:F18, TF1700, SpeedFace, MiniAC Plus
* Access Control Software: ZKAccess3.5

Description:

ST318 is a space-efficient security barrier gate turnstile with a compact design, yet offers sufficient space to integrate any access control system. It can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages.

The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.

OPERATING MODES:
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked

Specifications:

Product Size200*200*980mmPass Width700mm
Net Weight45kgThickness1.5mm
Material:SUS304,HL400Arm MaterialSUS303
Pass Rate40p/mPower Supply100-240V(AC)
Operational Voltage24V(DC)Max Power Consumption50w
Working Temperature-25 To +70 ℃Unlock Time0.2s

Measurement:

ST310 Connecting with ZKTeco Access Control System

Application Case:

ST318 Swing Gate Turnstile Application
