Project Description

Model: SF300

Fingerprint Access Control with Touch Screen

General Specifications:

◆Fingerprint and RFID Identification
◆2.8″ Touch Screen
◆ID card Capacity: 5000 (Optional)
◆Fingerprint Capacity: 1500
◆Communication: TCP/IP, USB Host, RS485
◆Access Control Interface for electric lock,door sensor,alarm,exit button.
◆Wiegand input&output

Ask for price

Scan to chat with iSecus in Whatsapp


The SF300 is an IP based fingerprint terminal, which operate in both network mode and standalone mode. it can connect with ZKAccess3.5 software for access control and time attendance management.

Wiegand output makes SF300 flexible to connect with ZK or any 3rd party controllers as a slave reader, Additionally, wiegand input allows two units of SF300 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit. Meanwhile, anti-passback function can be used to maximize the security.

Auxiliary input interface allows SF300 to connect with an external source, for instance, a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.


◆Convenient Operation: 2.8-inch touch screen
◆Fast Fingerprint Algorithm: Less than 1S user recognition
◆Multi-Communication Mode: Wiegand input/output, RS485, USB, TCP/IP
◆Professional Access Control Functions: Anti-passback, Access control interface for 3rd party electric lock, door sensor,exit button, alarmand doorbell


LCD2.8 inch capacitive   touch screen
Fingerprint SensorZK Optical Sensor (500DPI)
Algorithm VersionZKFinger VX10.0
CommunicationTCP/IP, USB Host
Fingerprint Capacity1500
Card Capacity (Optional)5,000 (EM/Mifare)
Records Capacity80000
Access Control InterfaceElectric lock, Door sensor, Alarm, Exit button, Door Bell
Standard FunctionsDST, Automatic Status Switch, Record query, T9 input, 9 digit user ID,
Anti-passback, Scheduled-Bell
Optional FunctionsPrinter, ADMS,webserver
Wiegand SignalWiegand input & output
Aux. Input1ea for linkage function
Power SupplyDC 12V/3A
Operating Temperature0 ~ 45°C (32°~113°F)
Operating Humidity20 ~ 80%
Dimension(L x W x H)105 x 105 x 34mm

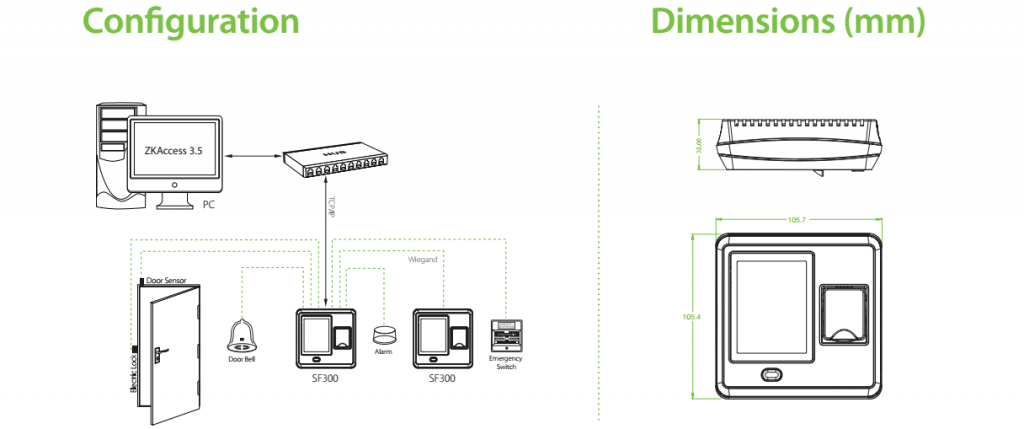

SF300 Fingerprint Access Control Connection Diagram

Click to Download:

SF300 Fingerprint Access Control Datasheet

SF300 Installation Guide and Quick Start Guide
